TOYOTA CROWN CROWN MAJESTA GS151-AEPFA / POWERTRAIN-CHASSIS / VANE PUMP RESERVOIR POWER STEERING

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

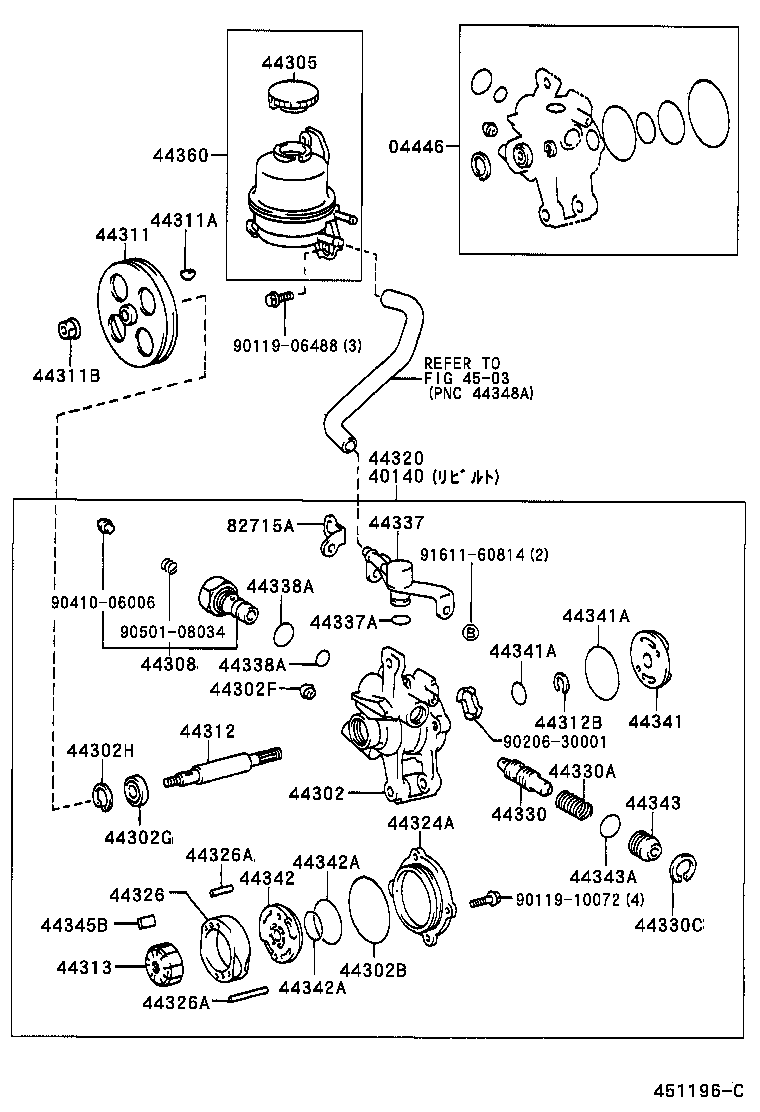

VANE PUMP RESERVOIR POWER STEERING

(9512-9801)LPGTE

CROWN CROWN MAJESTA | VANE PUMP RESERVOIR POWER STEERING 04446 - GASKET KIT, POWER STEERING PUMP 40140 - PUMP ASSY,VANE REBUILT 44302 - HOUSING SUB-ASSY, VANE PUMP, FRONT 44302B - RING, O, NO.1(FOR VANE PUMP HOUSING) 44302F - SEAT, UNION(FOR VANE PUMP HOUSING) 44302G - SEAL, OIL, NO.2(FOR VANE PUMP HOUSING) 44302H - RING, SNAP, NO.1(FOR VANE PUMP HOUSING) 44305 - CAP SUB-ASSY, VANE PUMP OIL RESERVOIR 44308 - UNION SUB-ASSY, PRESSURE PORT 44311 - PULLEY, VANE PUMP 44311A - KEY, VANE PUMP PULLEY 44311B - NUT(FOR VANE PUMP PULLEY) 44312 - SHAFT, VANE PUMP 44312B - RING, SNAP, NO.1(FOR VANE PUMP SHAFT) 44313 - ROTOR, VANE PUMP 44320 - PUMP ASSY, VANE 44324A - HOUSING, PUMP, REAR 44326 - RING, CAM(FOR VANE PUMP) 44326A - PIN, STRAIGHT(FOR VANE PUMP CAM RING) 44326A - PIN, STRAIGHT(FOR VANE PUMP CAM RING) 44330 - VALVE ASSY, FLOW CONTROL 44330A - SPRING, COMPRESSION(FOR FLOW CONTROL VALVE) 44330C - RING, SNAP(FOR FLOW CONTROL VALVE) 44337 - UNION, POWER STEERING SUCTION PORT 44337A - RING, O(FOR POWER STEERING SUCTION PORT) 44338A - RING, O(FOR PRESSURE PORT UNION) 44338A - RING, O(FOR PRESSURE PORT UNION) 44341 - PLATE, VANE PUMP SIDE, FRONT 44341A - RING, O(FOR VANE PUMP FRONT SIDE PLATE) 44341A - RING, O(FOR VANE PUMP FRONT SIDE PLATE) 44342 - PLATE, VANE PUMP SIDE, REAR 44342A - RING, O(FOR VANE PUMP SIDE PLATE REAR) 44342A - RING, O(FOR VANE PUMP SIDE PLATE REAR) 44343 - SEAT, FLOW CONTROL SPRING 44343A - RING, O(FOR FLOW CONTROL SPRING SEAT) 44345B - PLATE, VANE PUMP 44360 - RESERVOIR ASSY, VANE PUMP OIL ** Refer Fig 82715A - BRACKET, WIRING HARNESS CLAMP ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
