TOYOTA CAMRY VISTA CV40-AEMGX / TOOL-ENGINE-FUEL / ALTERNATOR

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

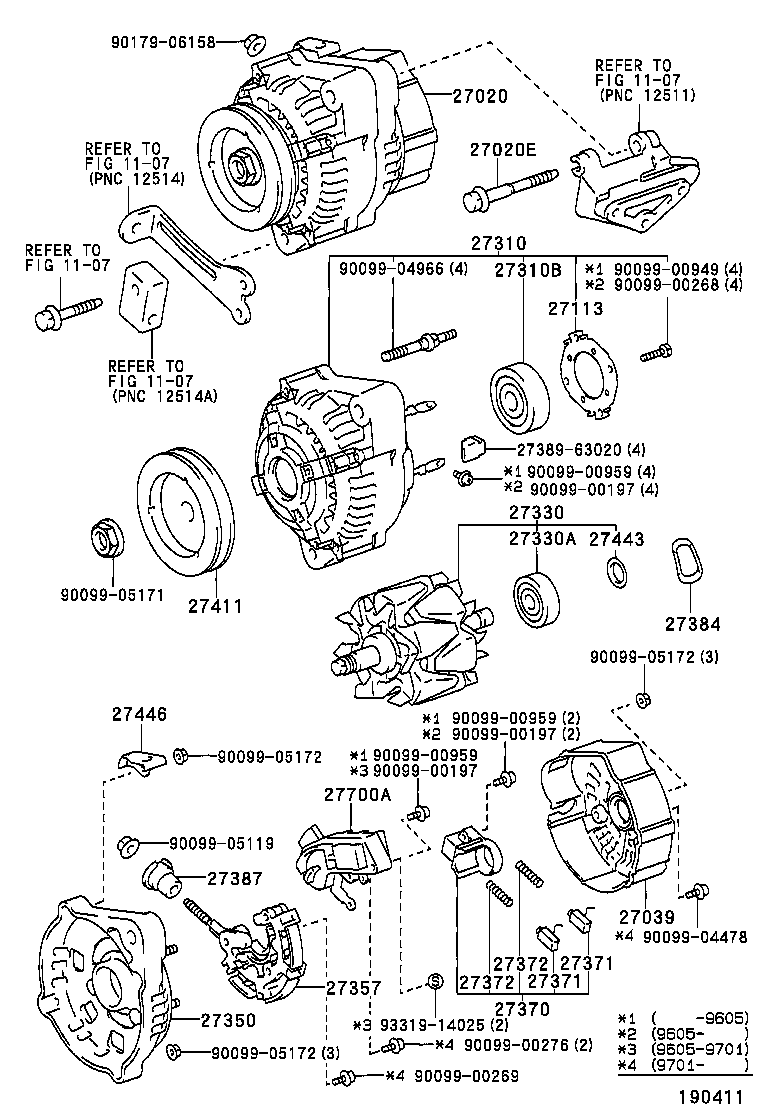

ALTERNATOR

12V 70A (9406- )3CT..CV40

 CAMRY VISTA |  ALTERNATOR ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig 27020 - ALTERNATOR ASSY 27020E - BOLT(FOR ALTERNATOR) 27039 - COVER, ALTERNATOR REAR END 27113 - PLATE, BEARING RETAINER, ALTERNATOR 27310 - FRAME ASSY, DRIVE END, ALTERNATOR 27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME) 27330 - ROTOR ASSY, ALTERNATOR 27330A - BEARING(FOR ALTERNATOR ROTOR) 27350 - FRAME ASSY, RECTIFIER END 27357 - HOLDER, ALTERNATOR, W/RECTIFIER 27370 - HOLDER ASSY, ALTERNATOR BRUSH 27371 - BRUSH, ALTERNATOR 27371 - BRUSH, ALTERNATOR 27372 - SPRING, ALTERNATOR BRUSH 27372 - SPRING, ALTERNATOR BRUSH 27384 - WASHER 27387 - INSULATOR, TERMINAL  ** Std Part 27411 - PULLEY, ALTERNATOR 27443 - COVER, ALTERNATOR BEARING 27446 - CLIP, ALTERNATOR CORD 27700A - REGULATOR ASSY, GENERATOR  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
