TOYOTA CALDINA ET196V-DXMDK / POWERTRAIN-CHASSIS / POWER STEERING TUBE

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

POWER STEERING TUBE

(9211-9601)ET196

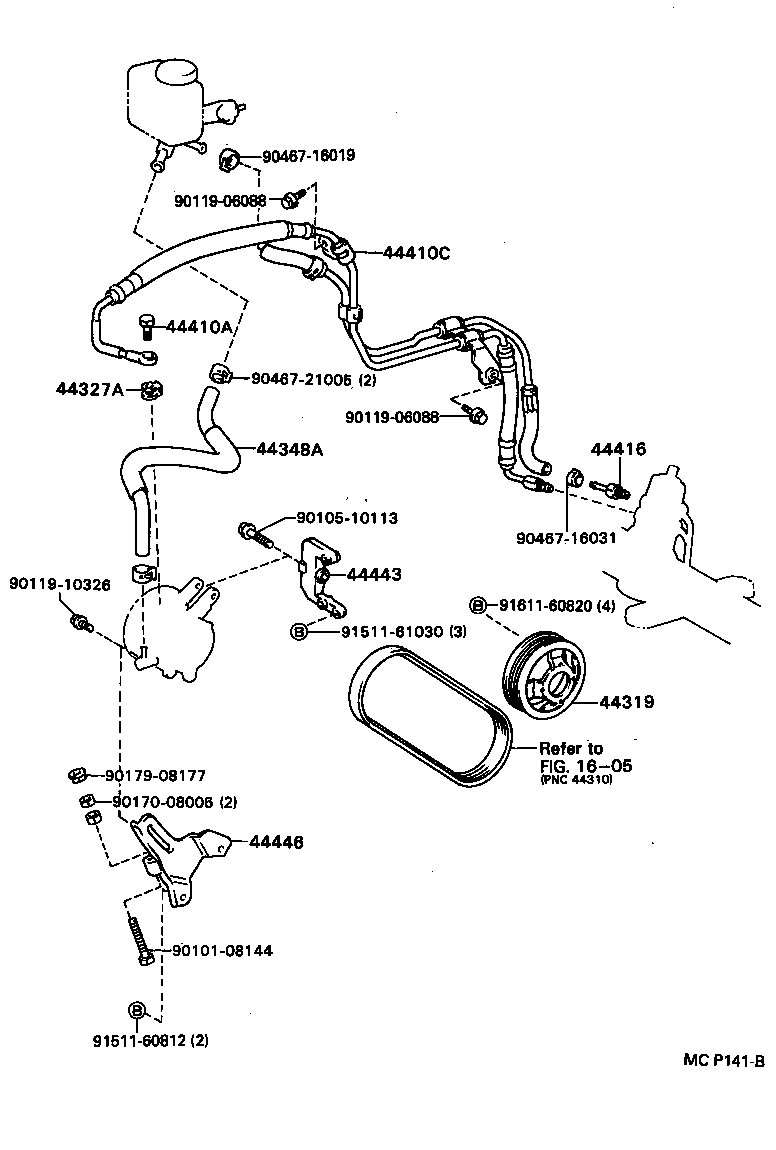

CALDINA | POWER STEERING TUBE ** Refer Fig 44319 - PULLEY, VANE PUMP DRIVE 44327A - GASKET, PRESSURE PORT, NO.1 44348A - HOSE, OIL RESERVOIR TO PUMP, NO.1 44410A - BOLT, UNION(FOR PRESSURE FEED TUBE) 44410C - TUBE ASSY, PRESSURE FEED, NO.1 44416 - TUBE, RETURN(FOR STEERING GEAR OUTLET) 44443 - BRACKET, PUMP 44446 - STRUT, ADJUSTING ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
