TOYOTA ESTIMA TCR11W-RFSGV / POWERTRAIN-CHASSIS / REAR AXLE SHAFT HUB

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

REAR AXLE SHAFT HUB

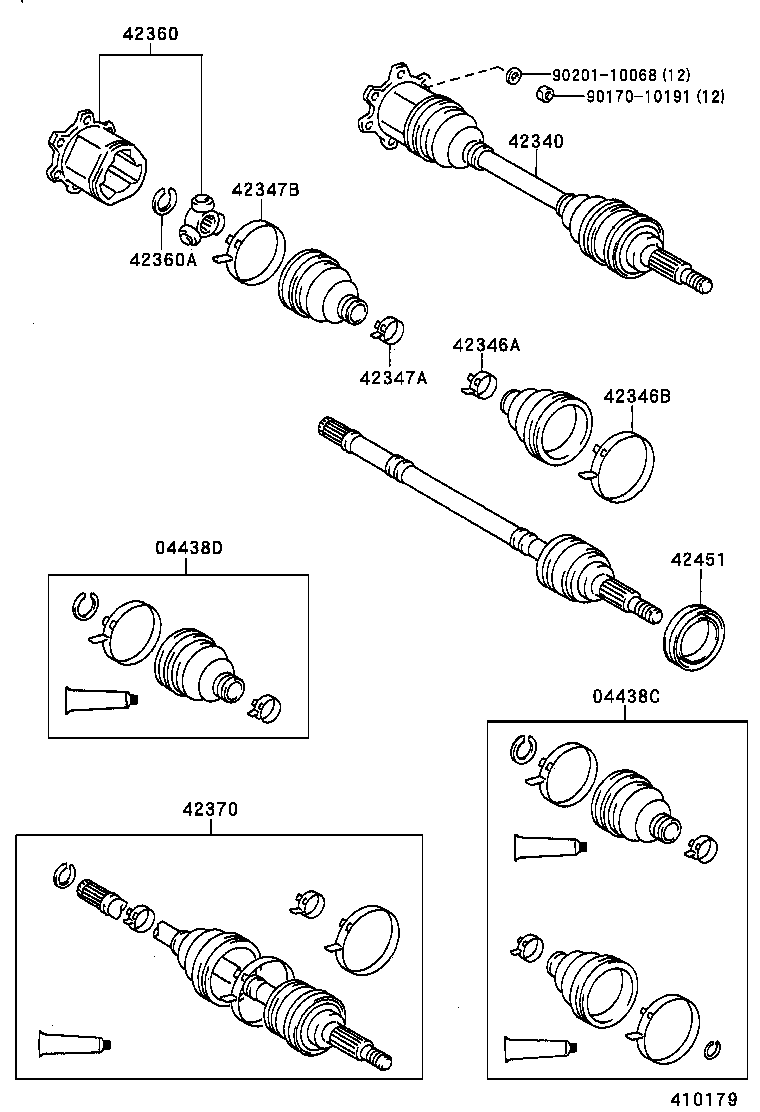

ILLUST NO. 1 OF 2(9005- )TCR11,21

ESTIMA | REAR AXLE SHAFT HUB 04438C - BOOT KIT, REAR DRIVE SHAFT 04438D - BOOT KIT, REAR DRIVE SHAFT INBOARD JOINT 42340 - SHAFT ASSY, REAR DRIVE 42346A - CLAMP (FOR REAR DRIVE SHAFT OUTBOARD JOINT BOOT) 42346B - CLAMP, NO. 2 (FOR RR DRIVE SHAFT OUTBOARD JOINT BOOT) 42347A - CLAMP (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT) 42347B - CLAMP, NO.2 (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT) 42360 - JOINT ASSY, REAR DRIVE SHAFT INBOARD 42360A - RING, SHAFT SNAP (FOR REAR DRIVE SHAFT INBOARD JOINT) 42370 - SHAFT ASSY, REAR DRIVE OUTBOARD JOINT 42451 - DEFLECTOR, REAR WHEEL BEARING DUST, NO.1 ** Std Part ** Std Part
