TOYOTA CELICA ST185H-BLMQZ / TOOL-ENGINE-FUEL / MANIFOLD

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

MANIFOLD

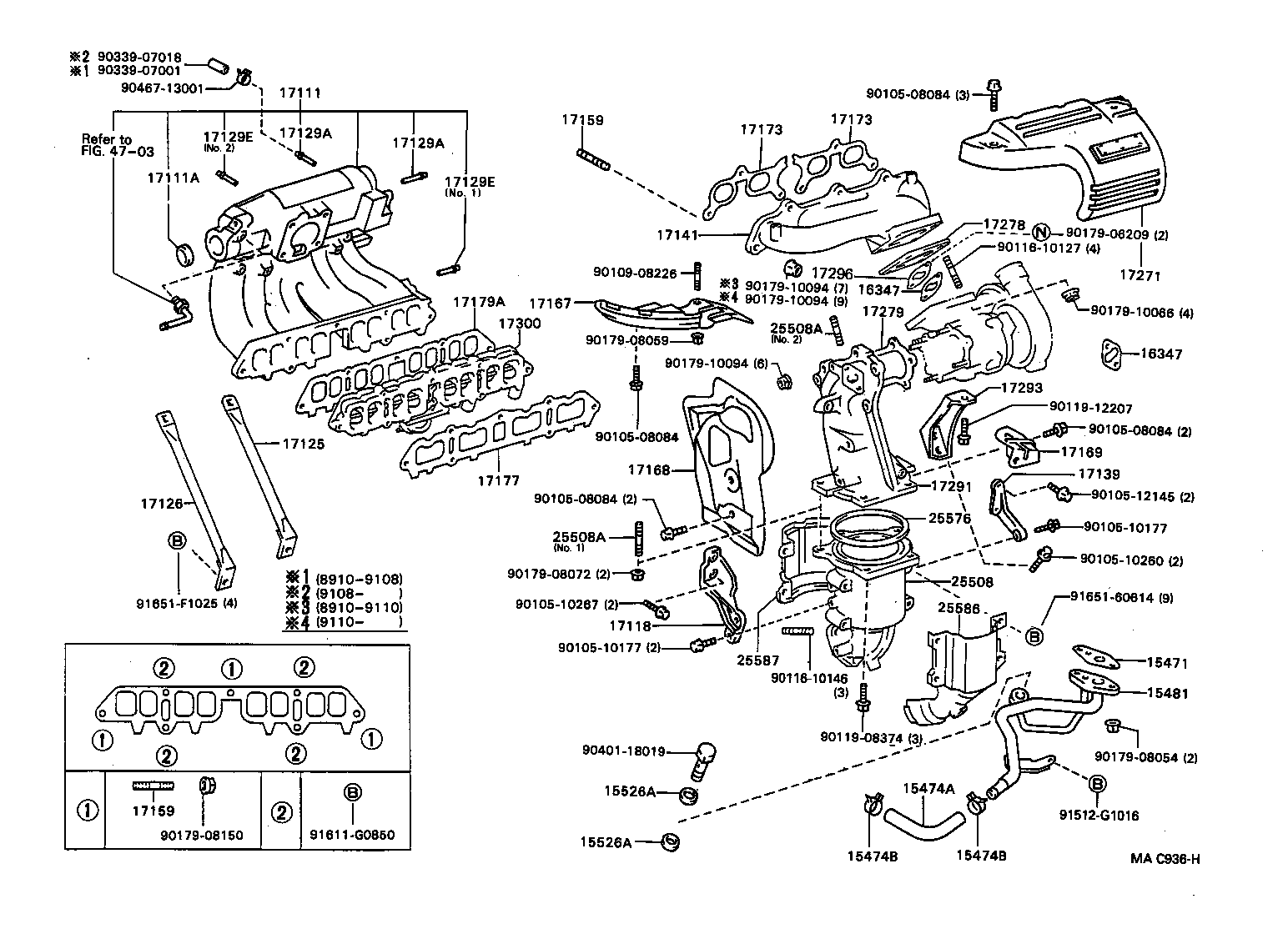

ILLUST NO. 1 OF 2(8910- )3SGTE

 CELICA |  MANIFOLD 15471 - GASKET, TURBO OIL INLET 15474A - HOSE, TURBO OIL OUTLET 15474B - CLAMP OR CLIP(FOR TURBO OIL OUTLET HOSE) 15474B - CLAMP OR CLIP(FOR TURBO OIL OUTLET HOSE) 15481 - PIPE, TURBO OIL, NO.1 15526A - GASKET, JOINT(FOR TURBO OIL PIPE) 15526A - GASKET, JOINT(FOR TURBO OIL PIPE) 16347 - GASKET, WATER BY-PASS 16347 - GASKET, WATER BY-PASS 17111 - MANIFOLD, INTAKE 17111A - PLUG, NO.1 17118 - STAY, MANIFOLD 17125 - STAY, SURGE TANK, NO.1 17126 - STAY, SURGE TANK, NO.2 17129A - UNION, NO.1 17129A - UNION, NO.1 17129E - UNION, NO.3 17129E - UNION, NO.3 17139 - STAY, MANIFOLD, NO.2 17141 - MANIFOLD, EXHAUST 17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD) 17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD) 17167 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.1 17168 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.2 17169 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.3 17173 - GASKET, EXHAUST MANIFOLD TO HEAD 17173 - GASKET, EXHAUST MANIFOLD TO HEAD 17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1 17179A - GASKET, INTAKE MANIFOLD, NO.2 17271 - INSULATOR, TURBO, NO.1 17278 - GASKET, TURBO TO EXHAUST MANIFOLD 17279 - GASKET, TURBINE OUTLET ELBOW 17291 - ELBOW, TURBINE OUTLET 17293 - STAY, TURBOCHARGER 17296 - PLATE, BEARING HOUSING, SIDE 17300 - VALVE ASSY, INTAKE AIR CONTROL 25508 - CONVERTER SUB-ASSY, MANIFOLD 25508A - BOLT, STUD(FOR MANIFOLD CONVERTER) 25508A - BOLT, STUD(FOR MANIFOLD CONVERTER) 25576 - GASKET, MANIFOLD CONVERTER 25586 - INSULATOR, MANIFOLD CONVERTER, NO.1 25587 - INSULATOR, MANIFOLD CONVERTER, NO.2 ** Refer Fig  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
