TOYOTA ARISTO JZS147-BEPVZ / ELECTRICAL / AIR PURIFIER OR ION GENERATOR

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

AIR PURIFIER OR ION GENERATOR

(9110-9708)

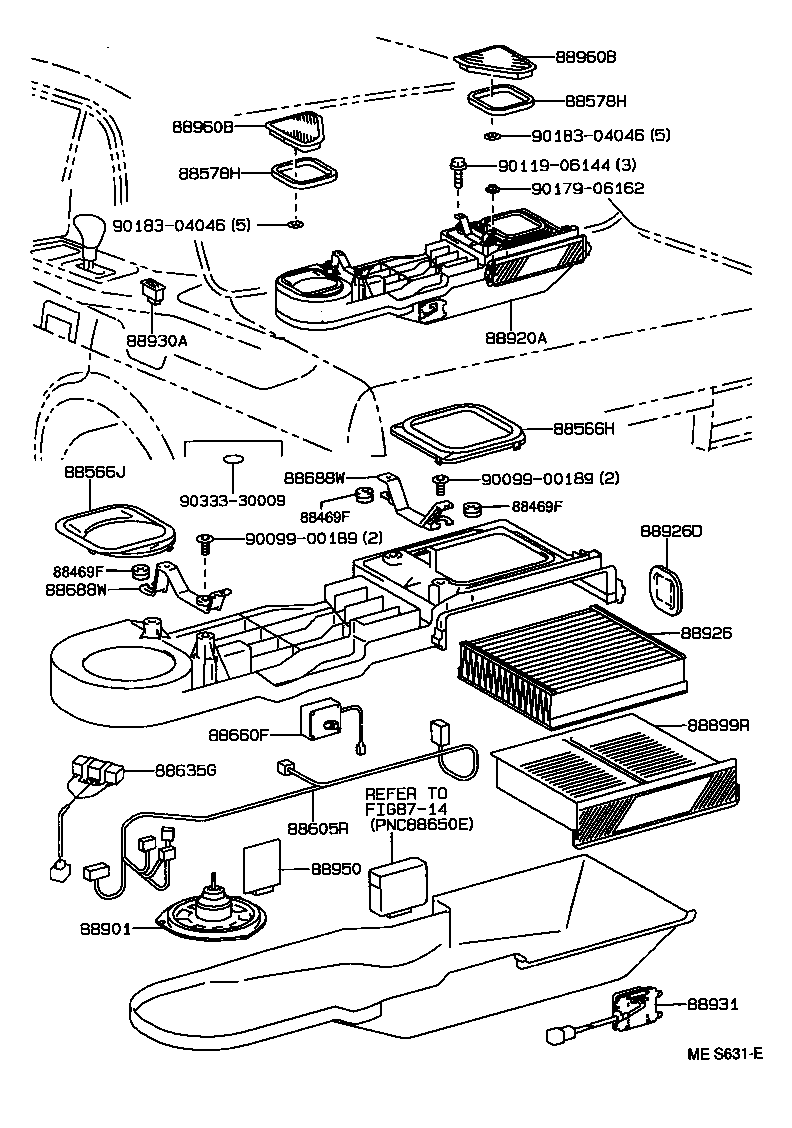

ARISTO | AIR PURIFIER OR ION GENERATOR ** Refer Fig 88469F - COLLAR 88469F - COLLAR 88469F - COLLAR 88566H - DUCT, AIR, NO.1 88566J - DUCT, AIR, NO.2 88578H - PACKING, AIR PURIFIER, NO.2 88578H - PACKING, AIR PURIFIER, NO.2 88605R - HARNESS SUB-ASSY, AIR PURIFIER 88635G - RESISTOR, AIR PURIFIER BLOWER 88660F - SERVO ASSY, AIR PURIFIER 88688W - BRACKET, AIR PURIFIER, NO.1 88688W - BRACKET, AIR PURIFIER, NO.1 88899R - FRAME, AIR PURIFIER 88901 - MOTOR SUB-ASSY, AIR PURIFIER 88920A - PURIFIER ASSY, AIR 88926 - FILTER, AIR PURIFIER 88926D - FILTER, AIR PURIFIER 88930A - SWITCH ASSY, AIR PURIFIER 88931 - SENSOR, SMOKE 88950 - AMPLIFIER ASSY, AIR PURIFIER 88960B - RESISTOR ASSY, AIR PURIFIRE 88960B - RESISTOR ASSY, AIR PURIFIRE ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
