TOYOTA ARISTO JZS147-BEPVZ / ELECTRICAL / HEATING AIR CONDITIONING COOLER PIPING

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

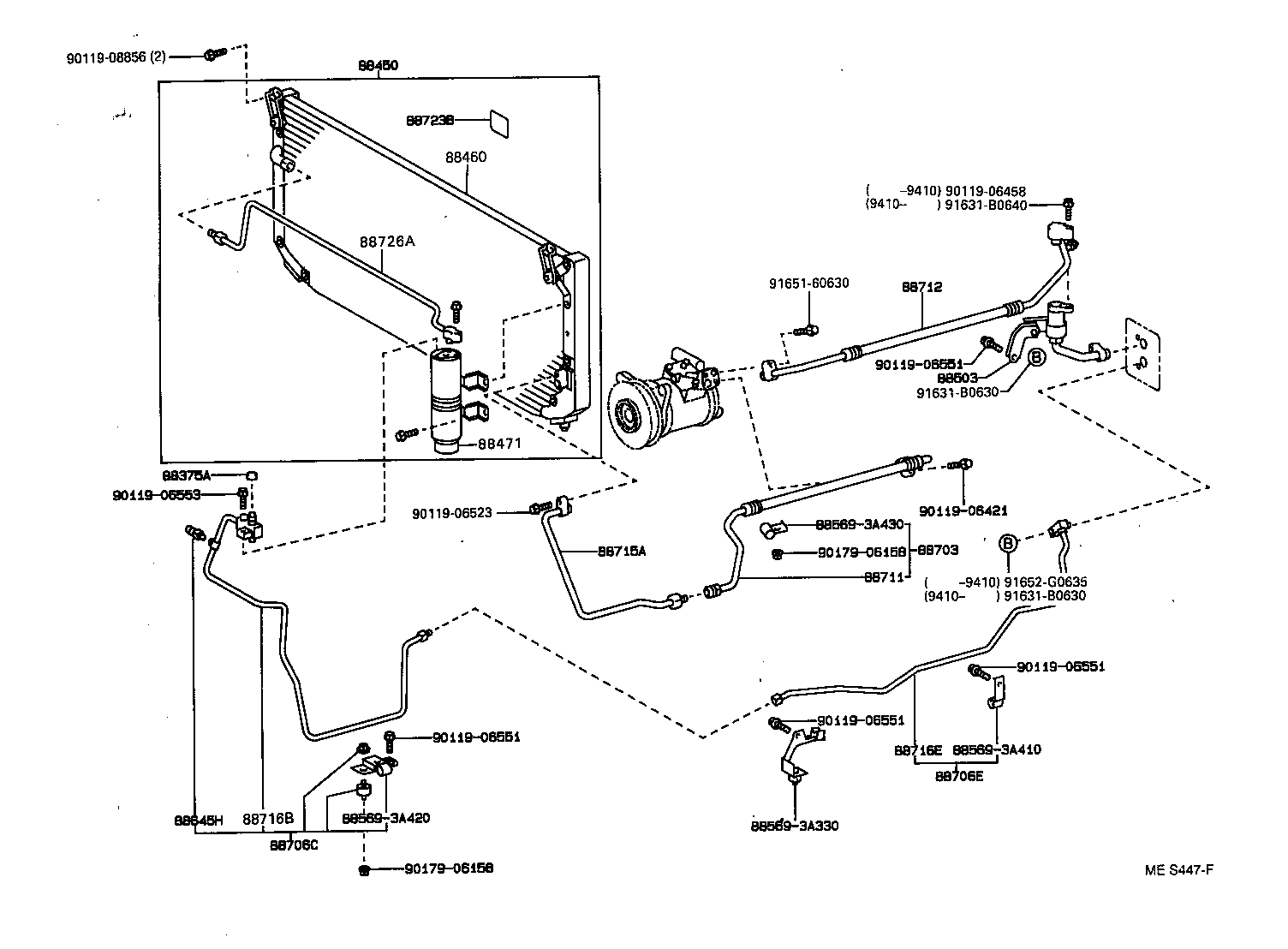

HEATING AIR CONDITIONING COOLER PIPING

(9110-9708)JZS147

 ARISTO |  HEATING AIR CONDITIONING COOLER PIPING 88375A - CAP, SERVICE VALVE (FOR COOLER PIPE) 88450 - CONDENSER ASSY, W/RECEIVER 88460 - CONDENSER ASSY, COOLER 88471 - TANK, RECEIVER AIR CONDITIONER 88503 - REGULATOR ASSY, PRESSURE  ** Std Part  ** Std Part  ** Std Part  ** Std Part 88645H - SWITCH, PRESSURE NO.1 88703 - HOSE SUB-ASSY, DISCHARGE 88706C - TUBE SUB-ASSY, LIQUID, C 88706E - TUBE SUB-ASSY, LIQUID, E 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 88715A - PIPE, COOLER REFRIGERANT DISCHARGE, A 88716B - PIPE, COOLER REFRIGERANT LIQUID, B 88716E - PIPE, COOLER REFRIGERANT LIQUID, E 88723B - LABEL, COOLER SERVICE CAUTION 88726A - PIPE, COOLER REFRIGERANT LIQUID, A  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
