TOYOTA SERA EXY10-ACMGH / ELECTRICAL / HEATING AIR CONDITIONING HEATER UNIT BLOWER

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

HEATING AIR CONDITIONING HEATER UNIT BLOWER

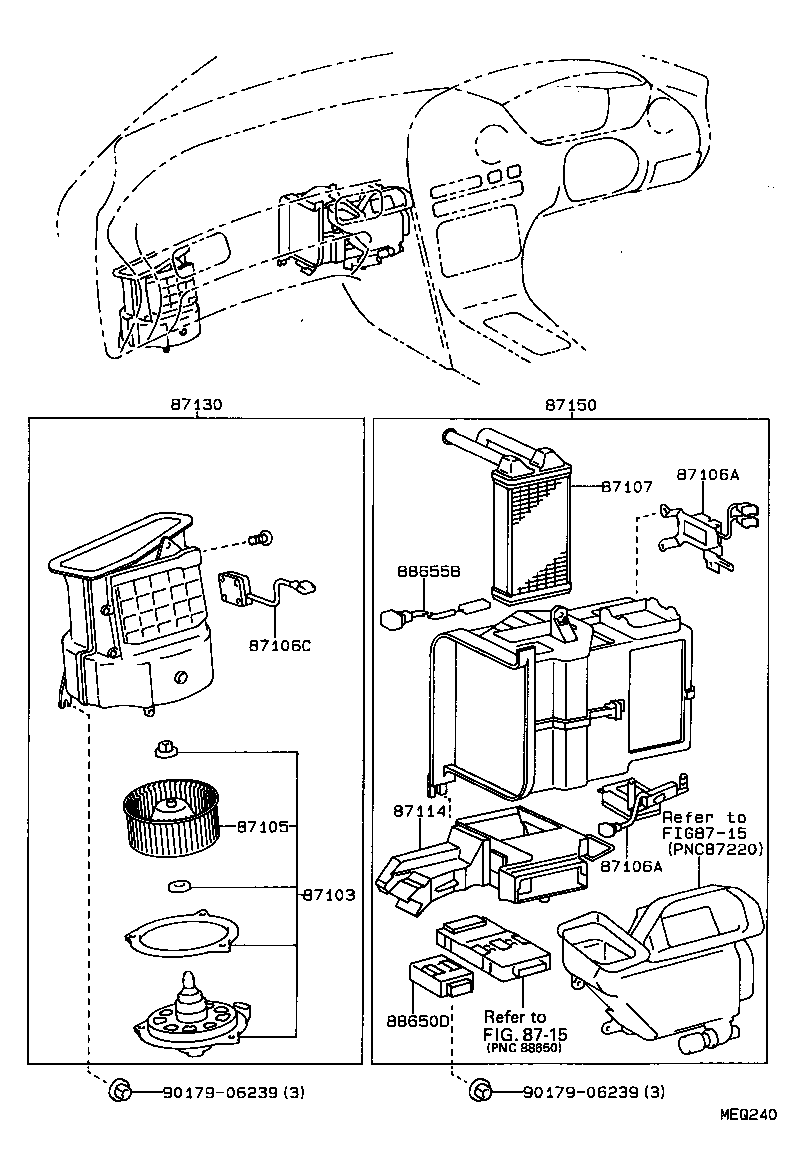

ILLUST NO. 1 OF 2(9003- )

SERA | HEATING AIR CONDITIONING HEATER UNIT BLOWER 87103 - MOTOR SUB-ASSY, HEATER BLOWER, W/FAN 87105 - FAN SUB-ASSY, HEATER BLOWER 87106A - SERVO SUB-ASSY, DAMPER 87106A - SERVO SUB-ASSY, DAMPER 87106C - SERVO SUB-ASSY, DAMPER(FOR BLOWER) 87107 - UNIT SUB-ASSY, HEATER RADIATOR 87114 - COVER, HEATER 87130 - BLOWER ASSY, HEATER, FRONT ** Refer Fig ** Refer Fig 87150 - RADIATOR ASSY, HEATER 88650D - AMPLIFIER ASSY 88655B - SWITCH, WATER TEMPERATURE ** Std Part ** Std Part
