TOYOTA SERA EXY10-ACMGH / BODY / BACK DOOR LOCK HANDLE

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

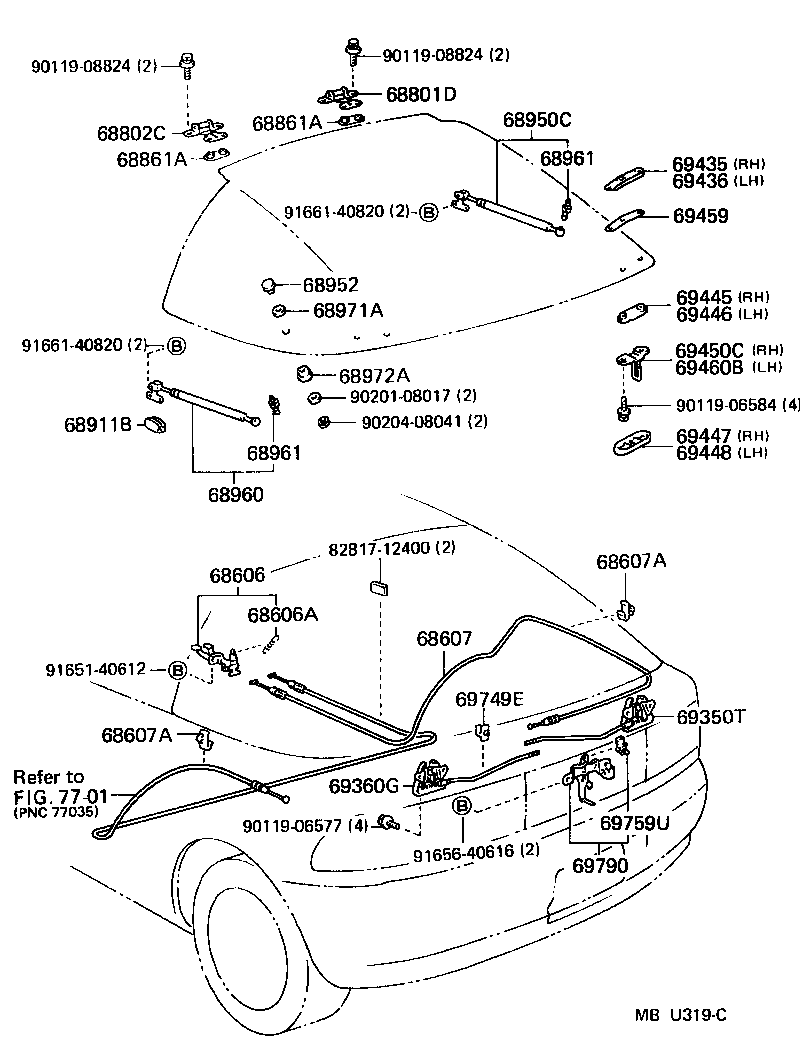

BACK DOOR LOCK HANDLE

(9003- )

SERA | BACK DOOR LOCK HANDLE 68606 - LEVER SUB-ASSY, BACK DOOR LOCK OPEN 68606A - SPRING, TENSION(FOR BACK DOOR LOCK OPEN LEVER) 68607 - CABLE SUB-ASSY, BACK DOOR LOCK CONTROL 68607A - CLAMP, NO.1(FOR BACK DOOR LOCK CONTROL CABLE) 68607A - CLAMP, NO.1(FOR BACK DOOR LOCK CONTROL CABLE) 68801D - HINGE SUB-ASSY, BACK DOOR, RH 68802C - HINGE SUB-ASSY, BACK DOOR, LH 68861A - PAD, BACK DOOR HINGE 68861A - PAD, BACK DOOR HINGE 68911B - COVER, BACK DOOR STAY 68950C - STAY ASSY, BACK DOOR, RH 68952 - RETAINER, BACK DOOR STAY 68960 - STAY ASSY, BACK DOOR, LH 68961 - BOLT, BACK DOOR STAY 68961 - BOLT, BACK DOOR STAY 68971A - PACKING, BACK DOOR STAY, NO.1 68972A - PACKING, BACK DOOR STAY, NO.2 69350T - LOCK ASSY, BACK DOOR, RH 69360G - LOCK ASSY, BACK DOOR, LH 69435 - RETAINER, BACK DOOR LOCK STRIKER, RH 69436 - RETAINER, BACK DOOR LOCK STRIKER, LH 69445 - PAD, BACK DOOR LOCK STRIKER, RH 69446 - PAD, BACK DOOR LOCK STRIKER, LH 69447 - COVER, BACK DOOR LOCK STRIKER, RH 69448 - PAD, BACK DOOR LOCK STRIKER 69450C - STRIKER ASSY, BACK DOOR LOCK, RH 69459 - PAD, BACK DOOR LOCK STRIKER RETAINER 69460B - STRIKER ASSY, BACK DOOR LOCK, LH 69749E - CLAMP, BACK DOOR LOCK LINK 69759U - SNAP, BACK DOOR LOCK CONTROL LINK 69790 - CONTROL ASSY, BACK DOOR LOCK ** Refer Fig ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
