TOYOTA SERA EXY10-ACMGH / BODY / FLOOR PAN LOWER BACK PANEL

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

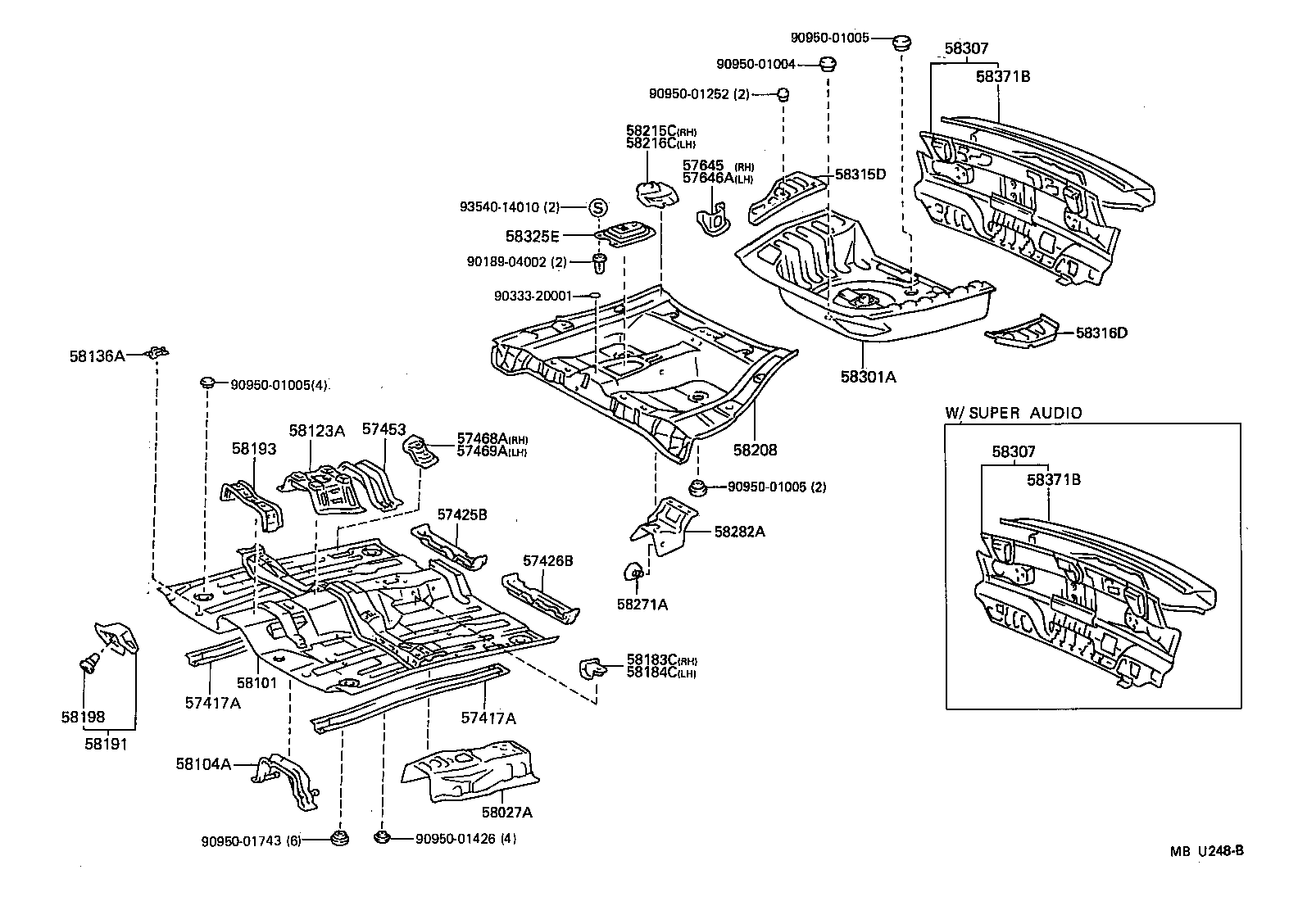

FLOOR PAN LOWER BACK PANEL

(9003- )

SERA | FLOOR PAN LOWER BACK PANEL 57417A - REINFORCEMENT, FRONT FLOOR UNDER 57417A - REINFORCEMENT, FRONT FLOOR UNDER 57425B - REINFORCEMENT, FRONT FLOOR, NO.2 RH 57426B - REINFORCEMENT, FRONT FLOOR, NO.2 LH 57453 - MEMBER, FRONT FLOOR CROSS, NO.3 57468A - BRACKET, FRONT SEAT, OUTSIDE, REAR RH 57469A - BRACKET, FRONT SEAT, OUTSIDE, REAR LH 57645 - REINFORCEMENT, REAR SIDE MEMBER, RH 57646A - REINFORCEMENT, REAR SIDE MEMBER, LH 58027A - REINFORCE SUB-ASSY, SEAT BELT ANCHOR 58101 - PAN SUB-ASSY, FRONT FLOOR 58104A - BRACKET SUB-ASSY, CATALYTIC CONVERTER SUPPORT 58123A - SUPPORT, SHIFT & SELECT LEVER 58136A - COVER, FRONT FLOOR SERVICE HOLE 58183C - BRACKET, FRONT SEAT MOUNTING, INSIDE RH 58184C - BRACKET, FRONT SEAT MOUNTING, INNER LH 58191 - FOOTREST, FRONT FLOOR 58193 - BRACKET, INSTRUMENT PANEL BRACE MOUNTING 58198 - CLIP, FOOTREST 58208 - PAN, CENTER FLOOR 58215C - REINFORCEMENT, CENTER FLOOR PANEL, NO.2 RH 58216C - REINFORCEMENT, CENTER FLOOR PANEL, NO.2 LH 58271A - REINFORCEMENT, BELT ANCHOR TO FLOOR PAN, NO.3 58282A - BASE, BELT ANCHOR TO FLOOR PAN, NO.3 RH 58301A - PANEL SUB-ASSY, REAR FLOOR 58307 - PANEL SUB-ASSY, BODY LOWER BACK 58307 - PANEL SUB-ASSY, BODY LOWER BACK 58315D - EXTENSION, REAR FLOOR PAN, RH 58316D - EXTENSION, REAR FLOOR PAN, LH 58325E - COVER, REAR FLOOR SERVICE HOLE 58371B - PANEL, BODY LOWER BACK, OUTER 58371B - PANEL, BODY LOWER BACK, OUTER ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
