TOYOTA CELICA ST183-BLMZF / POWERTRAIN-CHASSIS / VANE PUMP RESERVOIR POWER STEERING

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

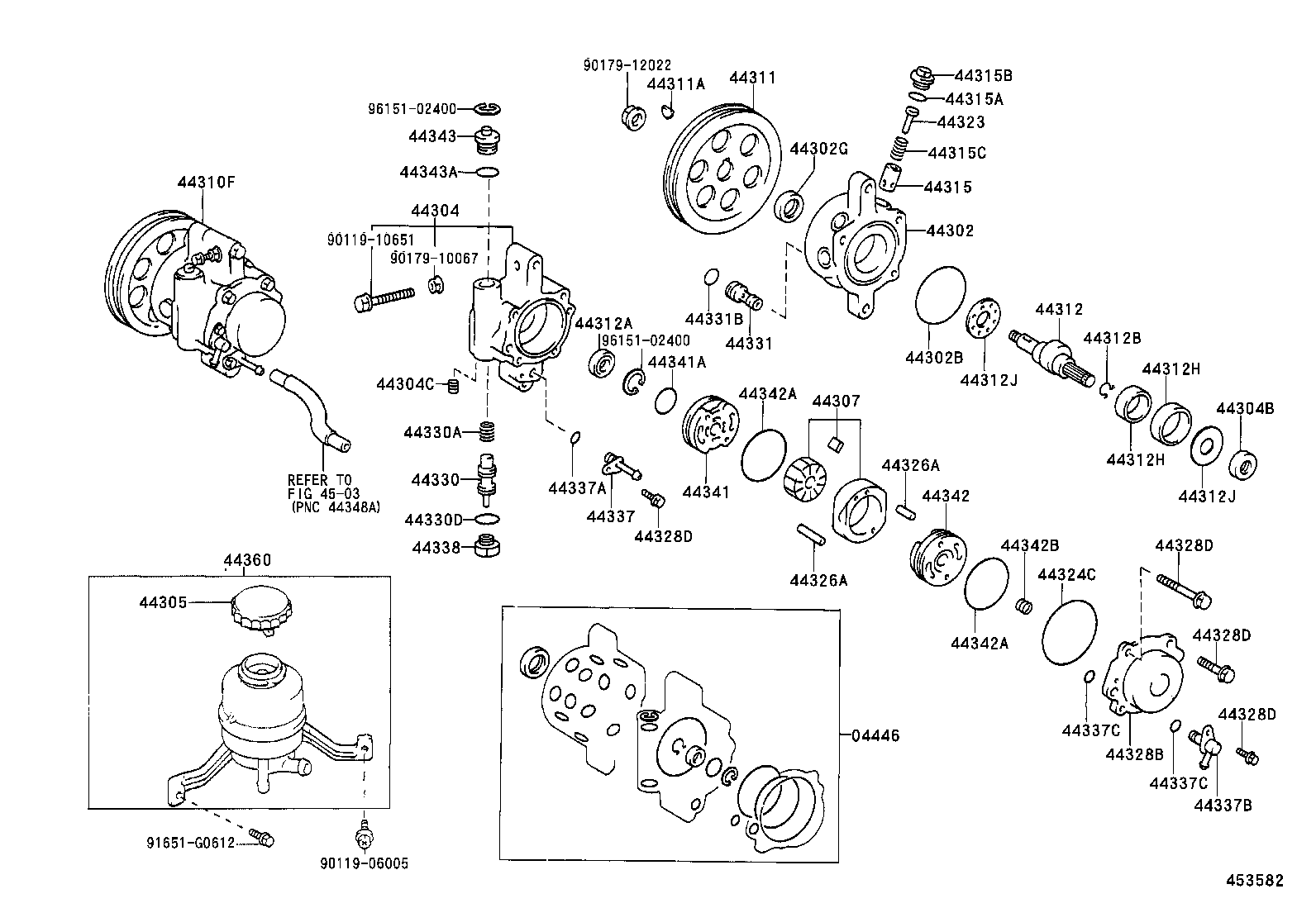

VANE PUMP RESERVOIR POWER STEERING

(9004- )ACT

CELICA | VANE PUMP RESERVOIR POWER STEERING 04446 - GASKET KIT, POWER STEERING PUMP 44302 - HOUSING SUB-ASSY, VANE PUMP, FRONT 44302B - RING, O, NO.1(FOR VANE PUMP HOUSING) 44302G - SEAL, OIL, NO.2(FOR VANE PUMP HOUSING) 44304 - HOUSING SUB-ASSY, VANE PUMP, REAR 44304B - SEAL, OIL(FOR VANE PUMP HOUSING REAR) 44304C - PLUG(FOR VANE PUMP HOUSING REAR) 44305 - CAP SUB-ASSY, VANE PUMP OIL RESERVOIR 44307 - ROTOR SUB-ASSY, VANE PUMP 44310F - PUMP ASSY, POWER STEERING & SUSPENSION CONTROL 44311 - PULLEY, VANE PUMP 44311A - KEY, VANE PUMP PULLEY 44312 - SHAFT, VANE PUMP 44312A - BEARING(FOR VANE PUMP SHAFT) 44312B - RING, SNAP, NO.1(FOR VANE PUMP SHAFT) 44312H - BUSH(FOR VANE PUMP SHAFT) 44312H - BUSH(FOR VANE PUMP SHAFT) 44312J - SPASER(FOR VANE PUMP SHAFT) 44312J - SPASER(FOR VANE PUMP SHAFT) 44315 - PISTON, POWER STEERING & SUSPENSION CONTROL VANE PUMP 44315A - RING, O(FOR POWER STEERING & SUSPENSION CONTROL PISTON) 44315B - PLUG(FOR POWER STEERING & SUSPENSION CONTROL PISTON) 44315C - SPRING, POWER STEERING & SUSPENSION CONTROL PUMP PISTON 44323 - GUIDE, POWER STEERING & SUSPENSION CONTROL VANE PUMP PISTON 44324C - RING, O(FOR PUMP HOUSING REAR) 44326A - PIN, STRAIGHT(FOR VANE PUMP CAM RING) 44326A - PIN, STRAIGHT(FOR VANE PUMP CAM RING) 44328B - END, VANE PUMP HOUSING 44328D - BOLT(FOR VANE PUMP HOUSING END) 44328D - BOLT(FOR VANE PUMP HOUSING END) 44328D - BOLT(FOR VANE PUMP HOUSING END) 44328D - BOLT(FOR VANE PUMP HOUSING END) 44330 - VALVE ASSY, FLOW CONTROL 44330A - SPRING, COMPRESSION(FOR FLOW CONTROL VALVE) 44330D - RING, O(FOR FLOW CONTROL VALVE) 44331 - VALVE, POWER STEERING & SUSPENSION CONTROL CHECK 44331B - RING, O(FOR POWER STEERING & SUSPENSION CONTROL CHECK VALVE) 44337 - UNION, POWER STEERING SUCTION PORT 44337A - RING, O(FOR POWER STEERING SUCTION PORT) 44337B - UNION, SUSPENSION CONTROL SUCTION PORT 44337C - RING, O(FOR SUSPENSION CONTROL SUCTION PORT UNION) 44337C - RING, O(FOR SUSPENSION CONTROL SUCTION PORT UNION) 44338 - UNION, PRESSURE PORT 44341 - PLATE, VANE PUMP SIDE, FRONT 44341A - RING, O(FOR VANE PUMP FRONT SIDE PLATE) 44342 - PLATE, VANE PUMP SIDE, REAR 44342A - RING, O(FOR VANE PUMP SIDE PLATE REAR) 44342A - RING, O(FOR VANE PUMP SIDE PLATE REAR) 44342B - SPRING, COMPRESSION(FOR VANE PUMP SIDE PLATE REAR) 44343 - SEAT, FLOW CONTROL SPRING 44343A - RING, O(FOR FLOW CONTROL SPRING SEAT) 44360 - RESERVOIR ASSY, VANE PUMP OIL ** Refer Fig ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
