TOYOTA CAMRY VISTA CV30-AEPNX / TOOL-ENGINE-FUEL / RADIATOR WATER OUTLET

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

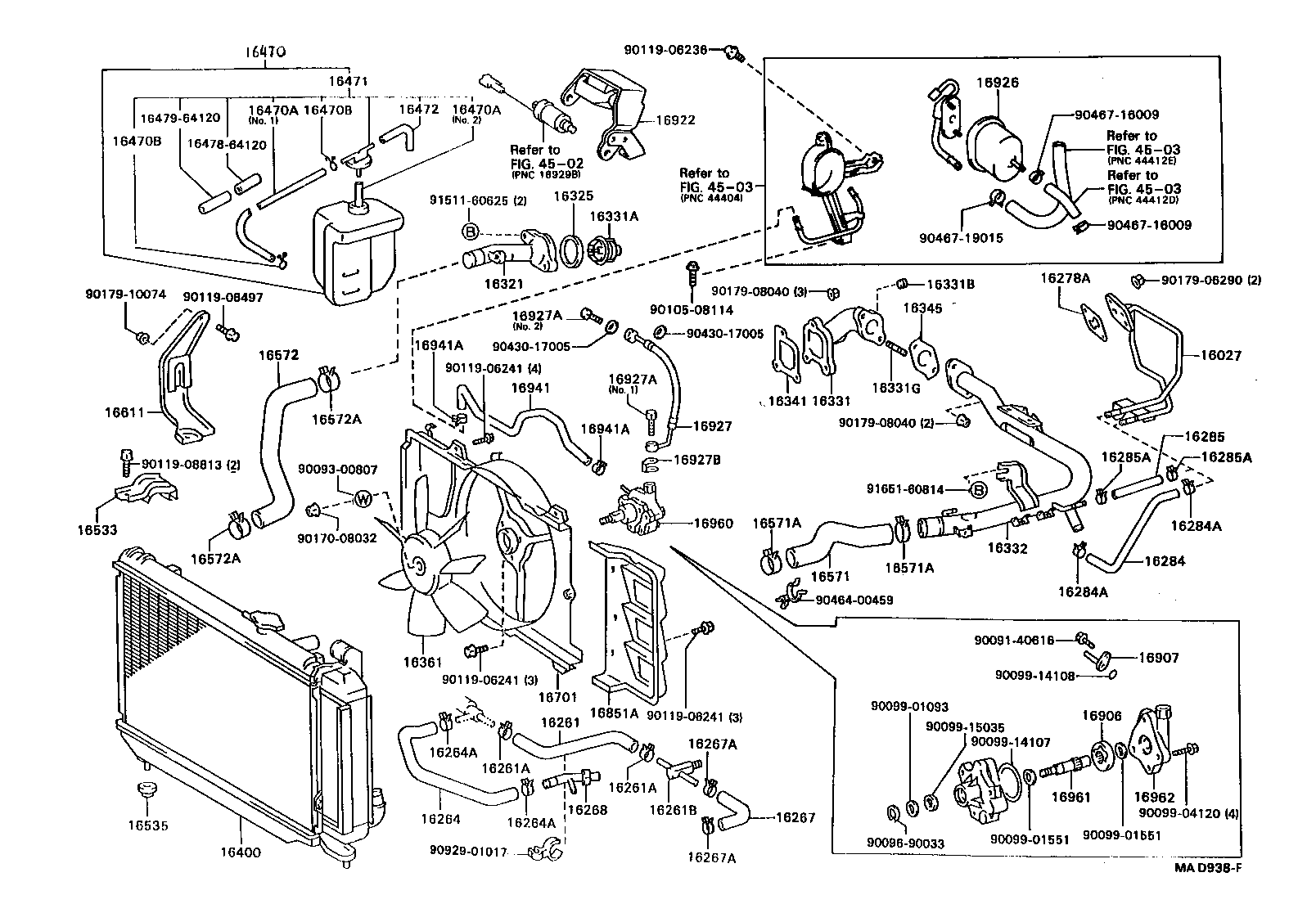

RADIATOR WATER OUTLET

ILLUST NO. 1 OF 2(9007-9206)2CT

 CAMRY VISTA |  RADIATOR WATER OUTLET 16027 - PIPE SUB-ASSY, TURBO WATER, NO.1 16261 - HOSE, WATER BY-PASS 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) 16261B - UNION(FOR WATER BY-PASS HOSE) 16264 - HOSE, WATER BY-PASS, NO.2 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) 16267 - HOSE, WATER BY-PASS, NO.3 16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3) 16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3) 16268 - PIPE, WATER BY-PASS, NO.1 16278A - GASKET, WATER BY-PASS 16284 - HOSE, TURBO WATER, NO.1 16284A - CLIP(FOR TURBO WATER HOSE NO.1) 16284A - CLIP(FOR TURBO WATER HOSE NO.1) 16285 - HOSE, TURBO WATER, NO.2 16285A - CLIP(FOR TURBO WATER HOSE NO.2) 16285A - CLIP(FOR TURBO WATER HOSE NO.2) 16321 - INLET, WATER 16325 - GASKET, WATER INLET HOUSING, NO.1 16331 - OUTLET, WATER 16331A - THERMOSTAT 16331B - PLUG(FOR WATER OUTLET) 16331G - BOLT, STUD(FOR WATER INLET) 16332 - PIPE, WATER OUTLET, NO.1 16341 - GASKET, WATER OUTLET 16345 - GASKET, WATER OUTLET PIPE 16361 - FAN 16400 - RADIATOR ASSY 16470 - TANK ASSY, RADIATOR RESERVE 16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK) 16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK) 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) 16471 - CAP SUB-ASSY, RESERVE TANK 16472 - HOSE, BREATHER  ** Std Part  ** Std Part 16533 - SUPPORT, RADIATOR, UPPER 16535 - SUPPORT, RADIATOR, LOWER 16571 - HOSE, RADIATOR, INLET 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) 16572 - HOSE, RADIATOR, OUTLET 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) 16611 - BRACKET, RADIATOR RESERVE TANK 16701 - SHROUD SUB-ASSY, FAN 16851A - COVER, SHROUD SIDE 16906 - GEAR SET, HYDRAULIC 16907 - PIPE SUB-ASSY, HYDRAULIC GEAR MOTOR 16922 - DAMPER, PUMP DINAMIC 16926 - FILTER, HYDRAULIC MOTER OIL 16927 - HOSE, HYDRAULIC MOTOR PRESSURE 16927A - BOLT, UNION(FOR PRESSURE HOSE) 16927A - BOLT, UNION(FOR PRESSURE HOSE) 16927B - GASKET(FOR PRESSURE HOSE) 16941 - HOSE, HYDRAULIC MOTOR RETURN, NO.1 16941A - CLIP(FOR RETURN NO.1) 16941A - CLIP(FOR RETURN NO.1) 16960 - MOTOR ASSY, HYDRAULIC GEAR 16961 - SHAFT, HYDRAULIC GEAR MOTOR 16962 - COVER, HYDRAULIC GEAR MOTOR ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
