TOYOTA STARLET EP82-AGHNU / TOOL-ENGINE-FUEL / CARBURETOR

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

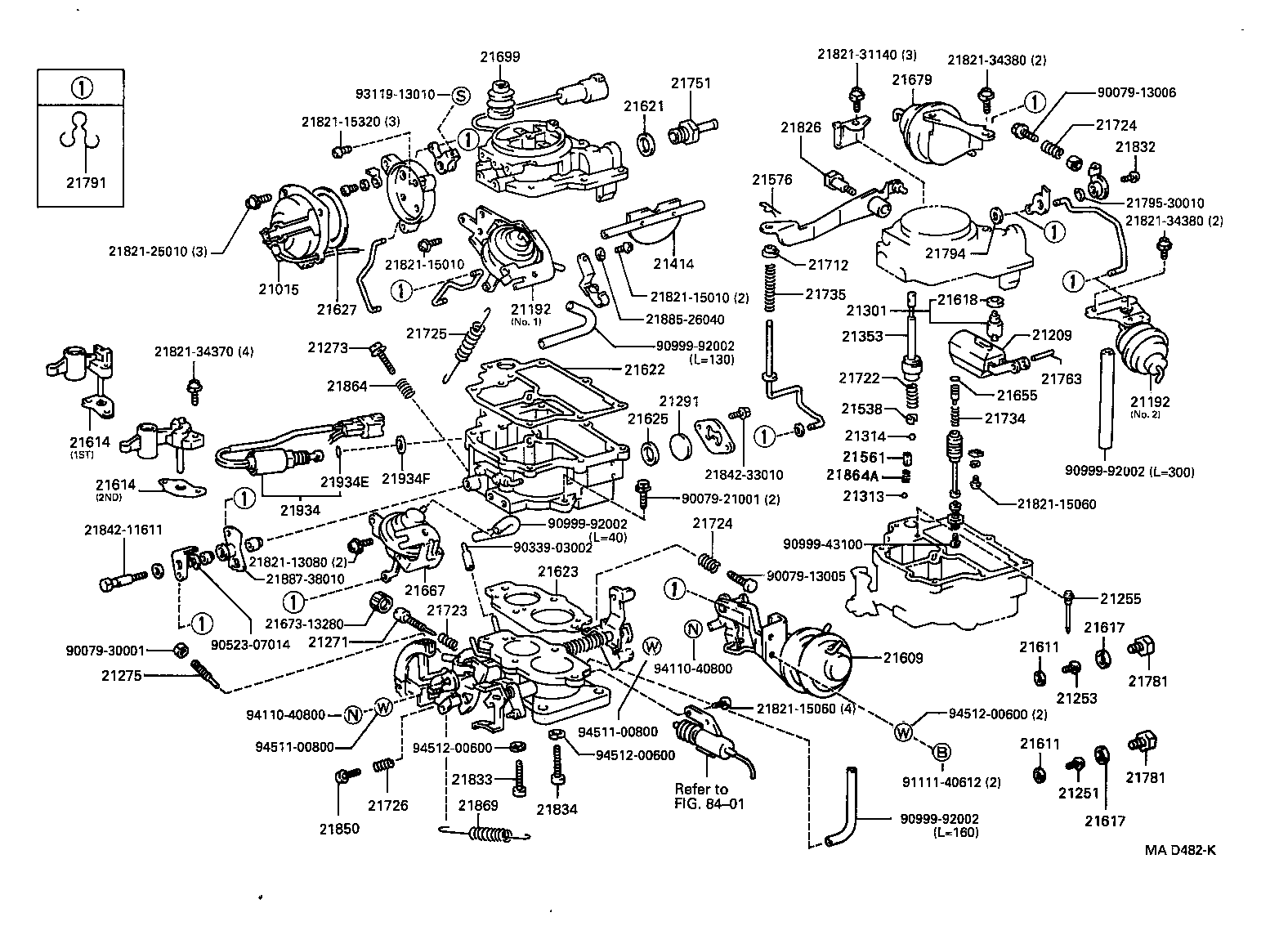

CARBURETOR

(8912-9201)4EF

STARLET | CARBURETOR 21015 - HOUSING SUB-ASSY, COIL 21192 - BREAKER 21192 - BREAKER 21209 - FLOAT SUB-ASSY 21251 - JET, 1ST MAIN 21253 - JET, 2ND MAIN 21255 - JET, POWER 21271 - SCREW, IDLE ADJUSTING 21273 - SCREW, THROTTLE ADJUSTING 21275 - SCREW, ADJUSTING 21291 - GLASS, LEVEL GAGE 21301 - VALVE SUB-ASSY, NEEDLE 21313 - BALL, STEEL, NO.1(FOR DISCHARGE WEIGHT) 21314 - BALL, STEEL, NO.2(FOR PUMP PLUNGER) 21353 - PLUNGER, PUMP 21414 - SHAFT, CHOKE 21538 - RETAINER, BALL CHECK 21561 - WEIGHT, PUMP DISCHARGE 21576 - CLIP, PUMP STRAINER 21609 - DIAPHRAGM SUB-ASSY 21611 - GASKET, MAIN JET 21611 - GASKET, MAIN JET 21614 - GASKET, VENTURI 21614 - GASKET, VENTURI 21617 - GASKET, MAIN PASSAGE PLUG 21617 - GASKET, MAIN PASSAGE PLUG 21618 - GASKET, NEEDLE VALVE SEAT 21621 - GASKET, UNION NIPPLE 21622 - GASKET, AIR HORN 21623 - GASKET, BODY FLANGE 21625 - GASKET, LEVEL GAGE 21627 - GASKET, COIL HOUSING 21655 - RING, O(FOR LIFTER ROD) 21667 - DIAPHRAGM ** Std Part 21679 - POSITIONER 21699 - BOOT(FOR PUMP PLUNGER) 21712 - BUSH, SLIDING ROD 21722 - SPRING, PUMP DAMPING 21723 - SPRING, IDLE ADJUSTING 21724 - SPRING, THROTTLE ADJUSTING 21724 - SPRING, THROTTLE ADJUSTING 21725 - SPRING, 2ND THROTTLE BACK 21726 - SPRING, 1ST IDLE ADJUSTING 21734 - SPRING, POWER PISTON 21735 - SPRING, PUMP ARM 21751 - UNION, NIPPLE 21763 - PIN, FLOAT LEVER 21781 - PLUG, MAIN PASSAGE(FOR CARBURETOR JET) 21781 - PLUG, MAIN PASSAGE(FOR CARBURETOR JET) 21791 - RING, SNAP, NO.1(FOR CARBURETOR LINK) 21794 - RING, RETAINER, NO.1(FOR THROTTLE SHAFT) ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part 21826 - SCREW, PUMP ARM SET 21832 - SCREW(FOR CHOKE LEVER ADAPTER SET) 21833 - SCREW, SET, NO.1(FOR CARBURETOR BODY SET) 21834 - SCREW, SET, NO.2(FOR CARBURETOR BODY SET) ** Std Part ** Std Part 21850 - SCREW, THROTTLE SWITCH ADJUSTING 21864 - SPRING(FOR 1ST THROTTLE ARM) 21864A - SPRING(FOR PUMP DISCHARGE WEIGHT) 21869 - SPRING(FOR MAIN JET) ** Std Part ** Std Part 21934 - SOLENOID, THROTTLE VALVE 21934E - RING, O(FOR SOLENOID VALVE) 21934F - GASKET ** Refer Fig ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
