TOYOTA SPRINTER CARIB AL25G-MWFNS / POWERTRAIN-CHASSIS / FRONT SPRING SHOCK ABSORBER

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

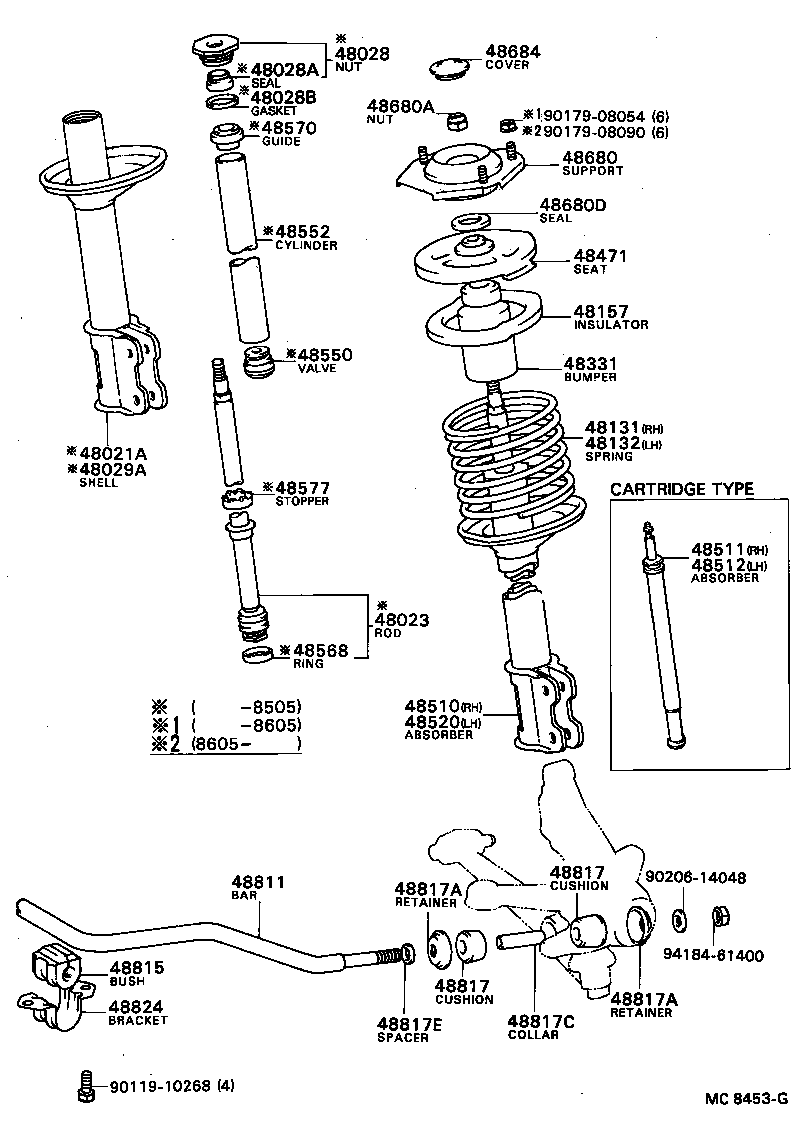

FRONT SPRING SHOCK ABSORBER

(8208- )

SPRINTER CARIB | FRONT SPRING SHOCK ABSORBER 48021A - SHELL SUB-ASSY, FRONT SHOCK ABSORBER, RH 48023 - ROD SUB-ASSY, SHOCK ABSORBER PISTON (FOR FRONT) 48028 - NUT SUB-ASSY, SHOCK ABSORBER RING 48028A - SEAL, OIL(FOR SHOCK ABSORBER RING NUT) 48028B - GASKET(FOR SHOCK ABSORBER RING NUT) 48029A - SHELL SUB-ASSY, FRONT SHOCK ABSORBER, LH 48131 - SPRING, FRONT COIL, RH 48132 - SPRING, FRONT COIL, LH 48157 - INSULATOR, FRONT COIL SPRING, UPPER 48331 - BUMPER, FRONT SPRING, NO.1 48471 - SEAT, FRONT SPRING, UPPER 48510 - ABSORBER ASSY, SHOCK, FRONT RH 48511 - ABSORBER, SHOCK FRONT, RH(FOR CARTRIDGE TYPE) 48512 - ABSORBER, SHOCK FRONT, LH(FOR CARTRIDGE TYPE) 48520 - ABSORBER ASSY, SHOCK, FRONT LH 48550 - VALVE ASSY, SHOCK ABSORBER BASE 48552 - CYLINDER, SHOCK ABSORBER(FOR FRONT) 48568 - RING, SHOCK ABSORBER PISTON 48570 - GUIDE ASSY, SHOCK ABSORBER ROD 48577 - STOPPER, SHOCK ABSORBER REBOUND 48680 - SUPPORT ASSY, FRONT SUSPENSION 48680A - NUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER) 48680D - SEAL, DUST(FOR FRONT SUSPENSION SUPPORT) 48684 - COVER, BEARING DUST 48811 - BAR, STABILIZER, FRONT 48815 - BUSH, FRONT STABILIZER BAR, NO.1 48817 - CUSHION, FRONT STABILIZER 48817 - CUSHION, FRONT STABILIZER 48817A - RETAINER, CUSHION, NO.1(FOR FRONT STABILIZER BAR) 48817A - RETAINER, CUSHION, NO.1(FOR FRONT STABILIZER BAR) 48817C - COLLAR(FOR STABILIZER BAR) 48817E - SPACER(FOR STABILIZER BAR) 48824 - BRACKET, STABILIZER, FRONT ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
