TOYOTA SPRINTER CARIB AL25G-MWFNS / POWERTRAIN-CHASSIS / GEAR SHIFT FORK LEVER SHAFT MTM

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

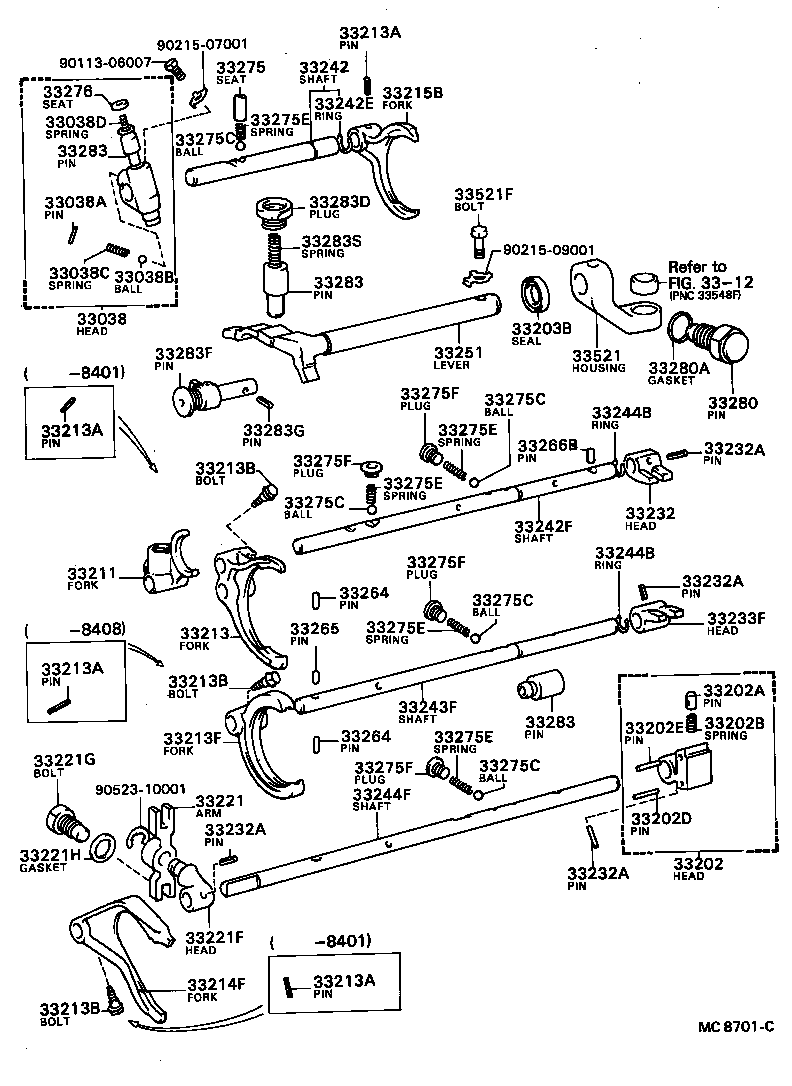

GEAR SHIFT FORK LEVER SHAFT MTM

(8208-8507)6F

SPRINTER CARIB | GEAR SHIFT FORK LEVER SHAFT MTM 33038 - HEAD SUB-ASSY, GEAR SHIFT, NO.4 33038A - PIN, SLOTTED SPRING 33038B - BALL, DETENT(FOR GEAR SHIFT HEAD NO.4) 33038C - SPRING, DETENT BALL(FOR GEAR SHIFT HEAD NO.4) 33038D - SPRING, COMPRESSION(FOR GEAR SHIFT HEAD NO.4) ** Refer Fig 33202 - HEAD SUB-ASSY, REVERSE SHIFT 33202A - PIN, REVERSE RESTRICT, NO.2 33202B - SPRING, COMPRESSION, NO.1(FOR REVERSE RESTRICT PIN) 33202D - PIN, SLOTTED SPRING(FOR REVERSE RESTRICT) 33202E - PIN, STRAIGHT(FOR REVERSE RESTRICT) 33203B - SEAL, OIL(FOR SHIFT LEVER SHAFT) 33211 - FORK, REVERSE SHIFT 33213 - FORK, 1ST & 2ND SHIFT 33213A - PIN, SLOTTED SPRING(FOR SHIFT FORK SET) 33213A - PIN, SLOTTED SPRING(FOR SHIFT FORK SET) 33213A - PIN, SLOTTED SPRING(FOR SHIFT FORK SET) 33213A - PIN, SLOTTED SPRING(FOR SHIFT FORK SET) 33213B - BOLT(FOR SHIFT FORK SET) 33213B - BOLT(FOR SHIFT FORK SET) 33213B - BOLT(FOR SHIFT FORK SET) 33213F - FORK, 3RD & 4TH SHIFT 33214F - FORK, 5TH SHIFT 33215B - FORK, GEAR SHIFT, NO.4 33221 - ARM, REVERSE SHIFT 33221F - HEAD, REVERSE SHIFT ARM 33221G - PIVOT, REVERSE SHIFT ARM 33221H - GASKET(FOR PIVOT REVERSE SHIFT ARM) 33232 - HEAD, 1ST & 2ND SHIFT 33232A - PIN, SLOTTED SPRING (FOR SHIFT HEAD SET) 33232A - PIN, SLOTTED SPRING (FOR SHIFT HEAD SET) 33232A - PIN, SLOTTED SPRING (FOR SHIFT HEAD SET) 33232A - PIN, SLOTTED SPRING (FOR SHIFT HEAD SET) 33233F - HEAD, 3RD & 4TH SHIFT 33242 - SHAFT, GEAR SHIFT FORK, NO.1 33242E - RING, SHAFT SNAP (FOR SHIFT FORK SHAFT) 33242F - SHAFT , 1ST & 2ND SHIFT FORK 33243F - SHAFT , 3RD & 4TH SHIFT FORK 33244B - RING, SHAFT SNAP (FOR SHIFT FORK SHAFT) 33244B - RING, SHAFT SNAP (FOR SHIFT FORK SHAFT) 33244F - SHAFT,5TH & REVERSE SHIFT 33251 - LEVER, SHIFT & SELECT 33264 - PIN, OR BALL, SHIFT INTER LOCK, NO.1 33264 - PIN, OR BALL, SHIFT INTER LOCK, NO.1 33265 - PIN, SHIFT INTER LOCK, NO.2 33266B - PIN, SHIFT INTER LOCK, NO.3 33275 - SEAT, SHIFT DETENT BALL SPRING, NO.1 33275C - BALL (FOR SHIFT DETENT) 33275C - BALL (FOR SHIFT DETENT) 33275C - BALL (FOR SHIFT DETENT) 33275C - BALL (FOR SHIFT DETENT) 33275C - BALL (FOR SHIFT DETENT) 33275E - SPRING, COMPRESSION (FOR SHIFT DETENT BALL) 33275E - SPRING, COMPRESSION (FOR SHIFT DETENT BALL) 33275E - SPRING, COMPRESSION (FOR SHIFT DETENT BALL) 33275E - SPRING, COMPRESSION (FOR SHIFT DETENT BALL) 33275E - SPRING, COMPRESSION (FOR SHIFT DETENT BALL) 33275F - PLUG (FOR SHIFT DETENT BALL) 33275F - PLUG (FOR SHIFT DETENT BALL) 33275F - PLUG (FOR SHIFT DETENT BALL) 33275F - PLUG (FOR SHIFT DETENT BALL) 33276 - SEAT, SHIFT DETENT BALL SPRING, NO.2 33280 - PIN ASSY, REVERSE RESTRICT 33280A - GASKET, REVERSE RESTRICT PIN 33283 - PIN, REVERSE RESTRICT, NO.1 33283 - PIN, REVERSE RESTRICT, NO.1 33283 - PIN, REVERSE RESTRICT, NO.1 33283D - PLUG (FOR REVERSE RESTRICT PIN) 33283F - PIN, REVERSE RESTRICT 33283G - PIN, SLOTTED SPRING (FOR REVERSE RESTRICT PIN) 33283S - SPRING, COMPRESSION (FOR REVERSE RESTRICT PIN LH) 33521 - HOUSING, SHIFT LEVER 33521F - PIN OR BOLT (FOR SHIFT LEVER HOUSING) ** Std Part ** Std Part ** Std Part ** Std Part
