TOYOTA LAND CRUISER S T H T BJ46V-MCM / POWERTRAIN-CHASSIS / DIAPHRAGM CYLINDER TRANSFER VACUUM ACTUATOR

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

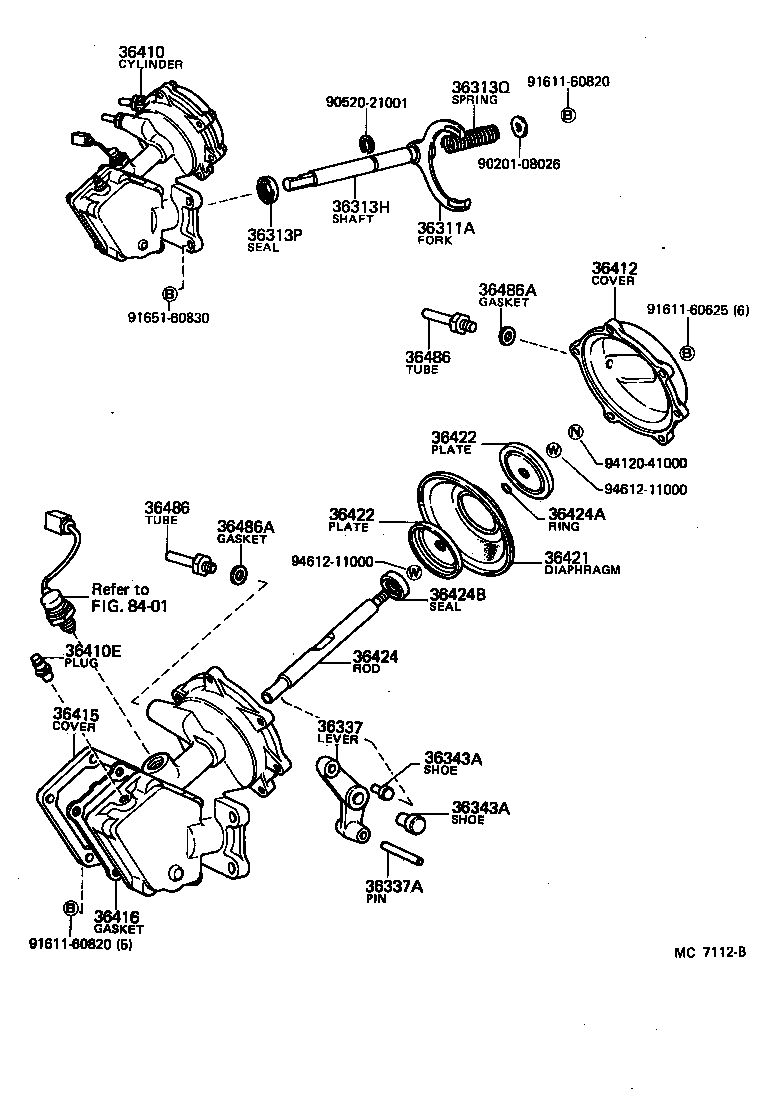

DIAPHRAGM CYLINDER TRANSFER VACUUM ACTUATOR

(8008- )

LAND CRUISER S T H T | DIAPHRAGM CYLINDER TRANSFER VACUUM ACTUATOR 36311A - FORK, TRANSFER GEAR SHIFT, NO.1 36313H - SHAFT, TRANSFER FRONT DRIVE SHIFT(FOR MAGNET TYPE) 36313P - SEAL, OIL (FOR TRANSFER FRONT DRIVE SHIFT SHAFT) 36313Q - SPRING(FOR TRANSFER FRONT DRIVE SHIFT SHAFT) 36337 - LEVER, FRONT DRIVE SHIFT LINK 36337A - PIN, STRAIGHT (FOR FRONT DRIVE SHIFT LINK LEVER) 36343A - SHOE, FR DRIVE SHIFT LINK LEVER (FOR VACUUM MAGNET TYPE) 36343A - SHOE, FR DRIVE SHIFT LINK LEVER (FOR VACUUM MAGNET TYPE) 36410 - CYLINDER ASSY, DIAPHRAGM 36410E - PLUG, BREATHER(FOR DIAPHRAGM CYLINDER) 36412 - COVER, DIAPHRAGM CYLINDER BODY 36415 - COVER, DIAPHRAGM CYLINDER 36416 - GASKET, DIAPHRAGM CYLINDER 36421 - DIAPHRAGM, TRANSFER 36422 - PLATE, TRANSFER DIAPHRAGM 36422 - PLATE, TRANSFER DIAPHRAGM 36424 - ROD, DIAPHRAGM PUSH 36424A - RING, O (FOR DIAPHRAGM PUSH ROD) 36424B - SEAL, TYPE T, OIL (FOR DIAPHRAGM PUSH ROD) 36486 - TUBE, SUCTION 36486 - TUBE, SUCTION 36486A - GASKET (FOR SUCTION TUBE) 36486A - GASKET (FOR SUCTION TUBE) ** Refer Fig ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
