TOYOTA LAND CRUISER S T H T BJ46V-MCM / ELECTRICAL / SWITCH RELAY COMPUTER

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

SWITCH RELAY COMPUTER

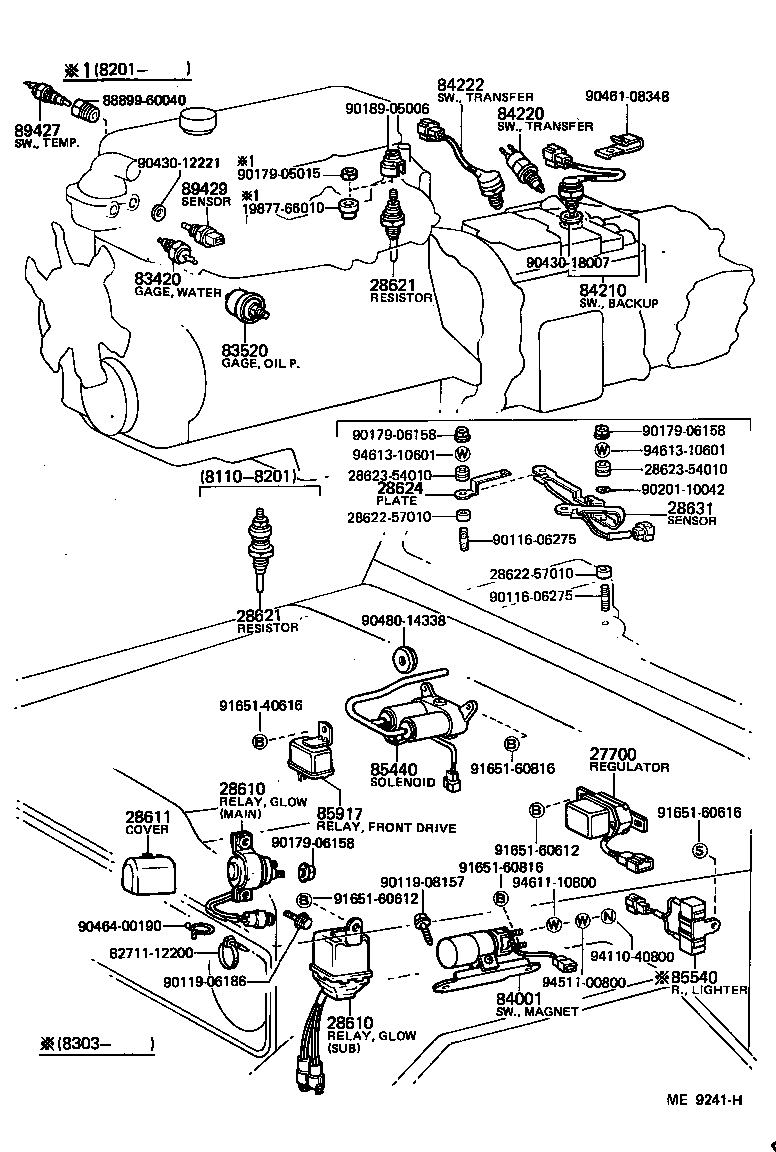

ILLUST NO. 1 OF 3(8008- )

LAND CRUISER S T H T | SWITCH RELAY COMPUTER ** Std Part 27700 - REGULATOR ASSY, GENERATOR 28610 - RELAY ASSY, GLOW PLUG 28610 - RELAY ASSY, GLOW PLUG 28611 - COVER, GLOW PLUG RELAY 28621 - RESISTOR, GLOW PLUG 28621 - RESISTOR, GLOW PLUG ** Std Part ** Std Part ** Std Part ** Std Part 28624 - PLATE, CURRENT SENSOR 28631 - SENSOR, GLOW PLUG CURRENT ** Std Part 83420 - GAGE ASSY, WATER TEMPERATURE SENDER 83520 - GAGE ASSY,OIL PRESSURE SENDER 84001 - SWITCH ASSY, MAGNET 84210 - SWITCH ASSY, BACK-UP LAMP 84220 - SWITCH ASSY, TRANSFER LEVER SELECT 84222 - SWITCH, TRANSFER INDICATOR, NO.1 85440 - SOLENOID ASSY, FRONT DRIVE 85540 - RESISTANCE ASSY, CIGARETTE LIGHTER 85917 - RELAY, FRONT DRIVE ** Std Part 89427 - SWITCH, TEMPERATURE DETECT 89429 - SENSOR, OIL TEMPERATURE ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
