TOYOTA LAND CRUISER S T H T BJ46V-MCM / ELECTRICAL / WIRING CLAMP

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

WIRING CLAMP

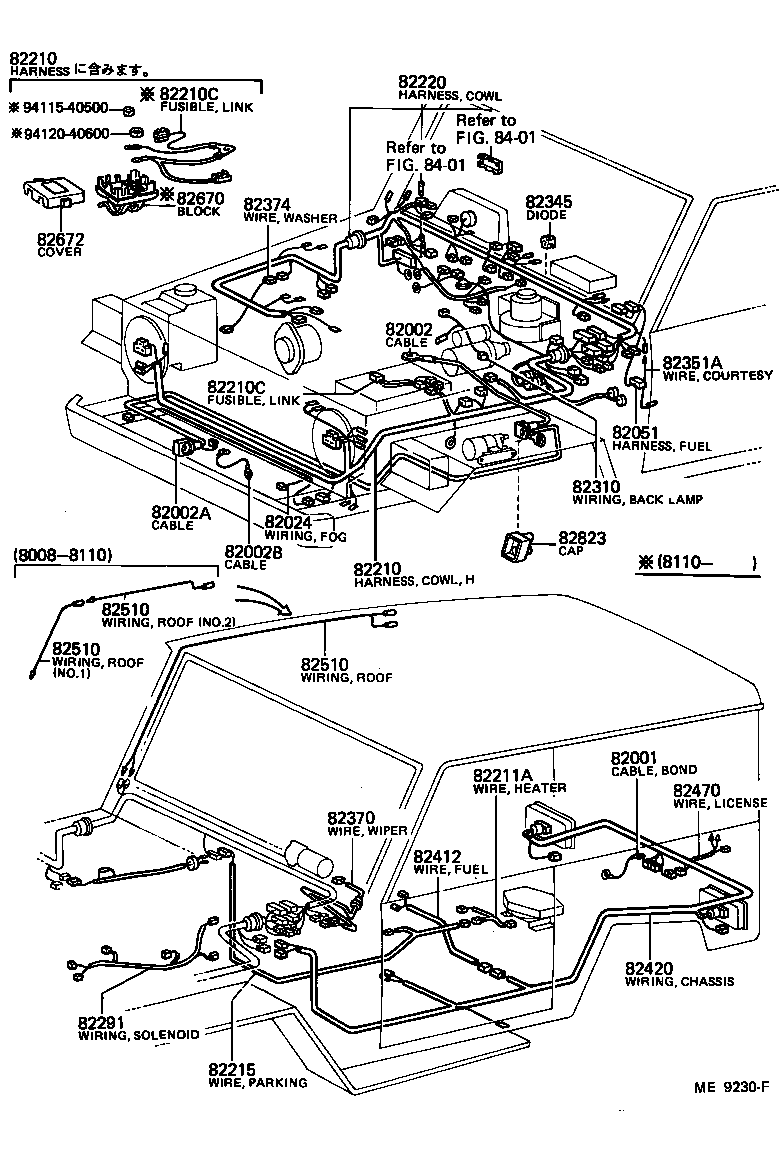

ILLUST NO. 1 OF 2(8008- )

LAND CRUISER S T H T | WIRING CLAMP 82001 - CABLE, BOND, NO.1 82002 - CABLE, BATTERY TO MAGNET SWITCH 82002A - CABLE, MAGNET SWITCH TO WINCH 82002B - CABLE, WINCH TO GROUND 82024 - WIRE SUB-ASSY, FOG LAMP FEED 82051 - HARNESS ASSY, FUEL CONTROL 82210 - HARNESS ASSY, WIRING COWL TO HEADLAMP, NO.1 82210 - HARNESS ASSY, WIRING COWL TO HEADLAMP, NO.1 82210C - FUSIBLE LINK 82210C - FUSIBLE LINK 82211A - WIRE, REAR HEATER 82215 - WIRE, PARKING BRAKE LAMP SWITCH 82220 - HARNESS ASSY, WIRING COWL 82291 - WIRING, TO SOLENOID 82310 - WIRING ASSY, TO BACK UP LAMP SWITCH 82345 - DIODE 82351A - WIRE, COURTESY LAMP SWITCH (FOR FRONT OR REAR DOOR) 82370 - WIRE ASSY, WIPER SWITCH TO WIPER 82374 - WIRE, WASHER 82412 - WIRE, FUEL GAGE 82420 - WIRING ASSY, CHASSIS 82470 - WIRE ASSY, LICENSE LAMP FEED 82510 - WIRING ASSY, ROOF 82510 - WIRING ASSY, ROOF 82510 - WIRING ASSY, ROOF 82670 - BLOCK ASSY, JUNCTION, NO.1 82672 - COVER, JUNKTION BLOCK 82823 - CAP, TERMINAL, NO.1 ** Refer Fig ** Refer Fig ** Std Part ** Std Part
