TOYOTA MARK 2 TX67V-XXHNSW / TOOL-ENGINE-FUEL / TIMING CHAIN

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

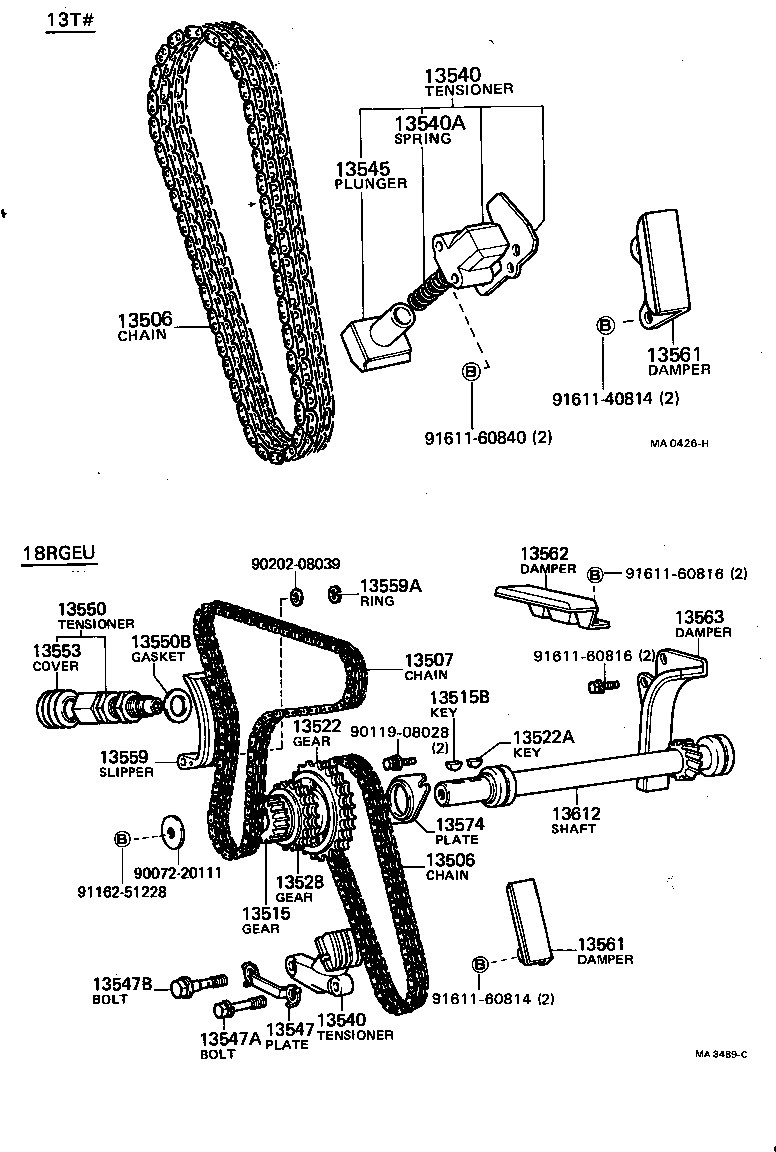

TIMING CHAIN

MA0426F,MA3489B (8009- )13T#

 MARK 2 |  TIMING CHAIN 13506 - CHAIN SUB-ASSY 13506 - CHAIN SUB-ASSY 13507 - CHAIN SUB-ASSY, NO.2 13515 - GEAR, DISTRIBUTOR DRIVE 13515B - KEY, WOODRUFF(FOR DISTRIBUTOR DRIVE GEAR) 13522 - GEAR, PUMP DRIVE SHAFT 13522A - KEY, WOODRUFF(FOR PUMP DRIVE SHAFT GEAR) 13528 - GEAR, CAMSHAFT DRIVE 13540 - TENSIONER ASSY, CHAIN, NO.1 13540 - TENSIONER ASSY, CHAIN, NO.1 13540A - SPRING, COMPRESSION(FOR CHAIN TENSIONER) 13545 - PLUNGER, CHAIN TENSIONER 13547 - PLATE, TENSIONER BOLT LOCK, NO.1 13547A - BOLT(FOR TENSIONER LOCK PLATE SET) 13547B - BOLT, UNION(FOR TENSIONER LOCK PLATE) 13550 - TENSIONER ASSY, CHAIN, NO.2 13550B - GASKET, CHAIN TENSIONER, NO.2 13553 - COVER, CHAIN TENSIONER DUST 13559 - SLIPPER, CHAIN TENSIONER 13559A - RING, E(FOR CHAIN TENSIONER SLIPPER) 13561 - DAMPER, CHAIN VIBRATION, NO.1 13561 - DAMPER, CHAIN VIBRATION, NO.1 13562 - DAMPER, CHAIN VIBRATION, NO.2 13563 - DAMPER, CHAIN VIBRATION, NO.3 13574 - PLATE, PUMP DRIVE SHAFT 13612 - SHAFT, PUMP DRIVE  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
