TOYOTA DYNA BU20D-QRMTUMY3 / POWERTRAIN-CHASSIS / HOIST CYLINDER TRUNNION LIFT ARM

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

HOIST CYLINDER TRUNNION LIFT ARM

(7904-8008)DM3

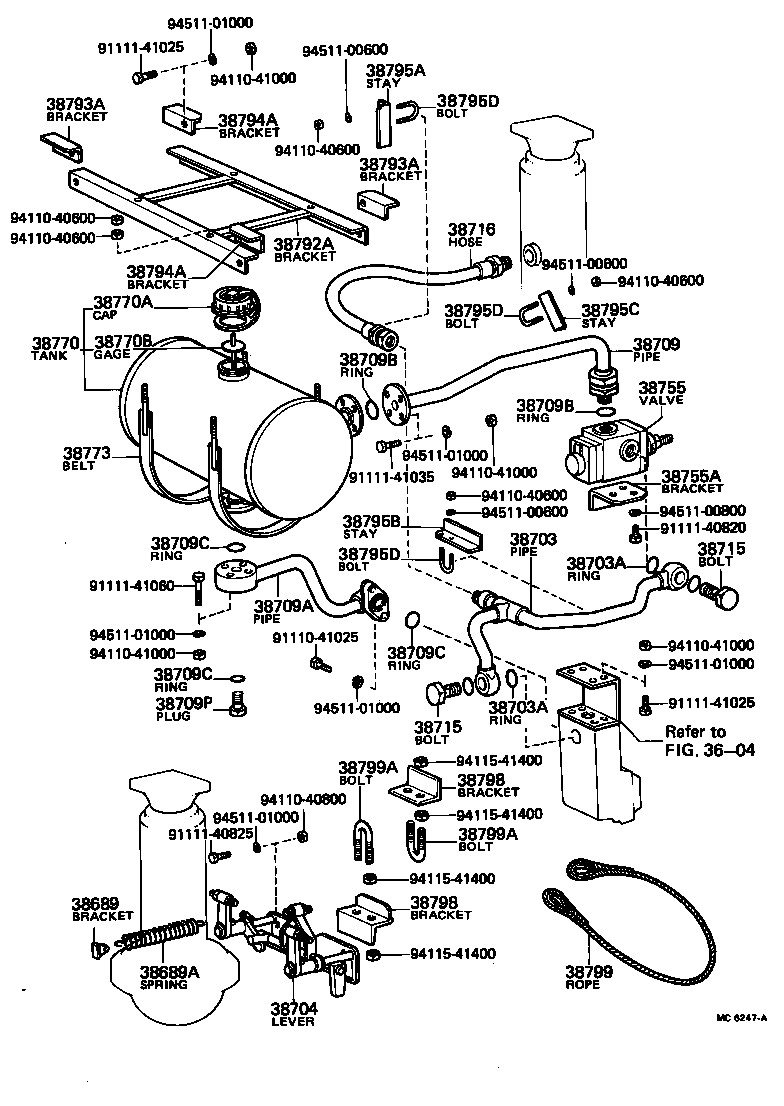

DYNA | HOIST CYLINDER TRUNNION LIFT ARM ** Refer Fig 38689 - BRACKET, RETURN SPRING 38689A - SPRING, TENSION (FOR STOP LEVER RETURN) 38703 - PIPE SUB-ASSY, DELIVERY 38703A - RING, O (FOR DELIVERY PIPE) 38703A - RING, O (FOR DELIVERY PIPE) 38704 - LEVER ASSY, HOIST CYLINDER STOP 38709 - PIPE SUB-ASSY, SUCTION NO.1 (FOR TANK TO STOP VALVE) 38709A - PIPE SUB-ASSY, SUCTION NO.2 (FOR TANK TO PUMP) 38709B - RING, O (FOR SUCTION NO.1 PIPE) 38709B - RING, O (FOR SUCTION NO.1 PIPE) 38709C - RING, O (FOR SUCTION NO.2 PIPE) 38709C - RING, O (FOR SUCTION NO.2 PIPE) 38709C - RING, O (FOR SUCTION NO.2 PIPE) 38709P - PLUG, W/HEAD STRAIGHT SCREW 38715 - BOLT, I 38715 - BOLT, I 38716 - HOSE, FLEXIBLE 38755 - VALVE ASSY, HOIST CYLINDER STOP 38755A - BRACKET, STOP VALVE SUPPORT 38770 - TANK ASSY, OIL 38770A - CAP, OIL TANK 38770B - GAGE, OIL TANK 38773 - BELT, OIL TANK 38792A - BRACKET, OIL TANK 38793A - BRACKET, OIL TANK NO.1 38793A - BRACKET, OIL TANK NO.1 38794A - BRACKET, OIL TANK NO.2 38794A - BRACKET, OIL TANK NO.2 38795A - STAY, PIPE SUPPORT(FOR FLEXIBLE HOSE) 38795B - STAY, PIPE SUPPORT(FOR SUCTION PIPE) 38795C - STAY, PIPE SUPPORT(FOR DELIVERY PIPE) 38795D - BOLT, U (FOR DELIVERY PIPE) 38795D - BOLT, U (FOR DELIVERY PIPE) 38795D - BOLT, U (FOR DELIVERY PIPE) 38798 - 38798 - 38799 - ROPE, WIRE 38799A - BOLT, U (FOR WIRE ROPE) 38799A - BOLT, U (FOR WIRE ROPE) ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
