TOYOTA NOAH ZRR80R-APXSP / BODY / FUEL TANK TUBE

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

FUEL TANK TUBE

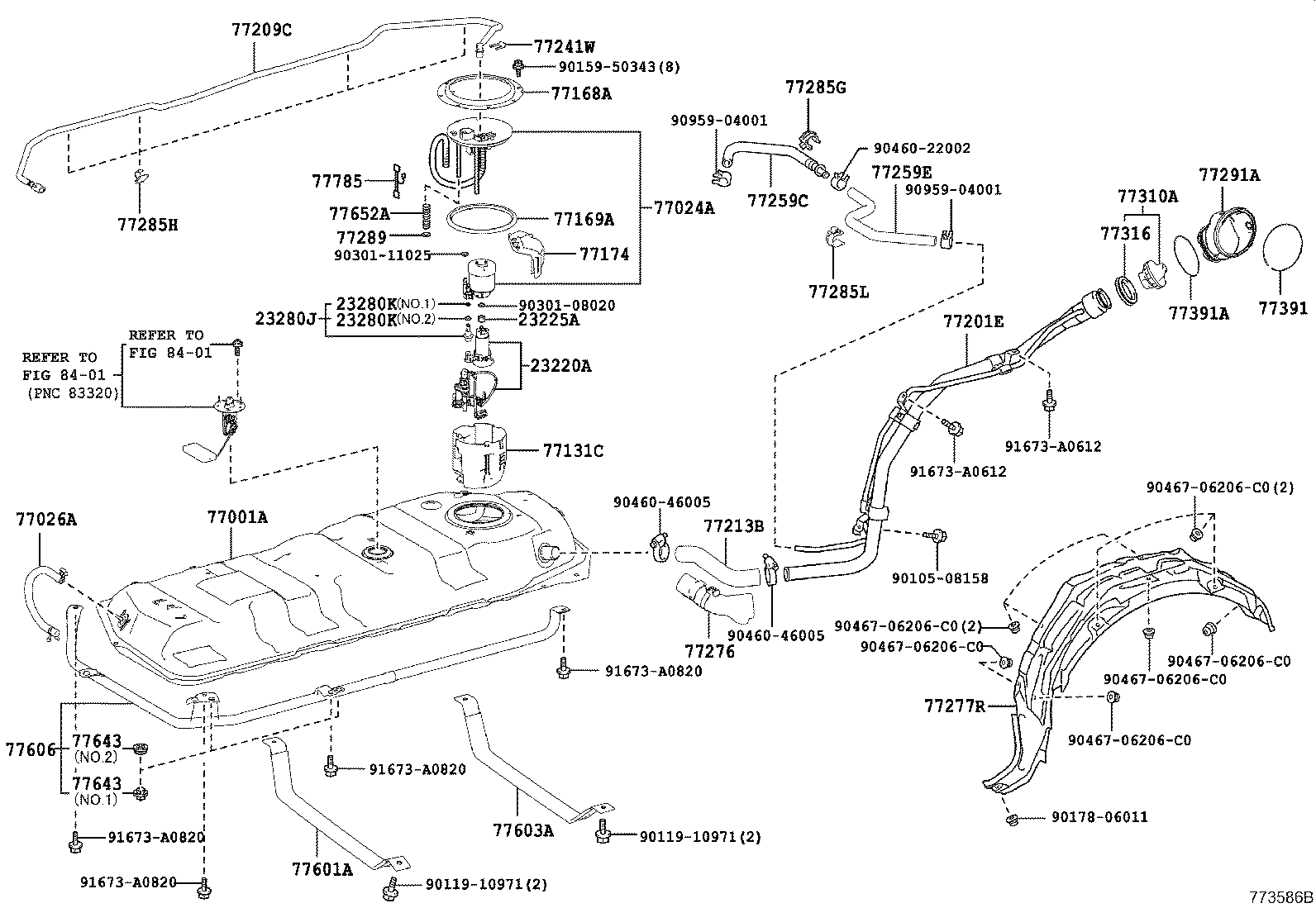

FUEL TANK ILLUST NO. 1 OF 3(1401- )

NOAH | FUEL TANK TUBE 23220A - PUMP ASSY, FUEL W/FILTER 23225A - SPACER, FUEL PUMP 23280J - REGULATOR ASSY, FUEL PRESSURE 23280K - RING, O(FOR FUEL PRESSURE REGULATOR) 23280K - RING, O(FOR FUEL PRESSURE REGULATOR) 77001A - TANK SUB-ASSY, FUEL 77024A - PLATE SUB-ASSY, FUEL SUCTION 77026A - TUBE SUB-ASSY, FUEL EVAPORATION, NO.1 77131C - SUB-TANK, FUEL, NO.1 77168A - PLATE, FUEL TANK VENT TUBE SET 77169A - GASKET, FUEL SUCTION TUBE SET 77174 - SUPPORT, FUEL SUCTION, NO.1 77201E - PIPE SUB-ASSY, FUEL TANK FILLER 77209C - TUBE SUB-ASSY, FUEL TANK MAIN 77213B - HOSE, FUEL TANK TO FILLER PIPE 77241W - CLIP, TUBE JOINT 77259C - HOSE, FUEL 77259E - HOSE, FUEL 77276 - PROTECTOR, FUEL HOSE 77277R - PROTECTOR, FUEL TANK FILLER PIPE 77285G - CLAMP, FUEL TUBE, NO.1 77285H - CLAMP, FUEL TUBE, NO.1 77285L - CLAMP, FUEL TUBE, NO.1 77289 - HOLDER, FUEL TANK PIPE SETTING 77291A - SHIELD, FUEL TANK FILLER PIPE 77310A - CAP ASSY, FUEL TANK 77316 - GASKET, FUEL TANK CAP 77391 - RING, FUEL INLET BOX 77391A - RING, FUEL INLET BOX 77601A - BAND SUB-ASSY, FUEL TANK, NO.1 77603A - BAND SUB-ASSY, FUEL TANK, NO.2 77606 - PROTECTOR SUB-ASSY, FUEL TANK, NO.1 77643 - RETAINER, FUEL TANK PROTECTOR 77643 - RETAINER, FUEL TANK PROTECTOR 77652A - CUSHION, FUEL TANK, NO.2 77785 - HARNESS, FUEL PUMP ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
