TOYOTA NOAH ZRR80R-APXSP / BODY / INSIDE TRIM BOARD

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

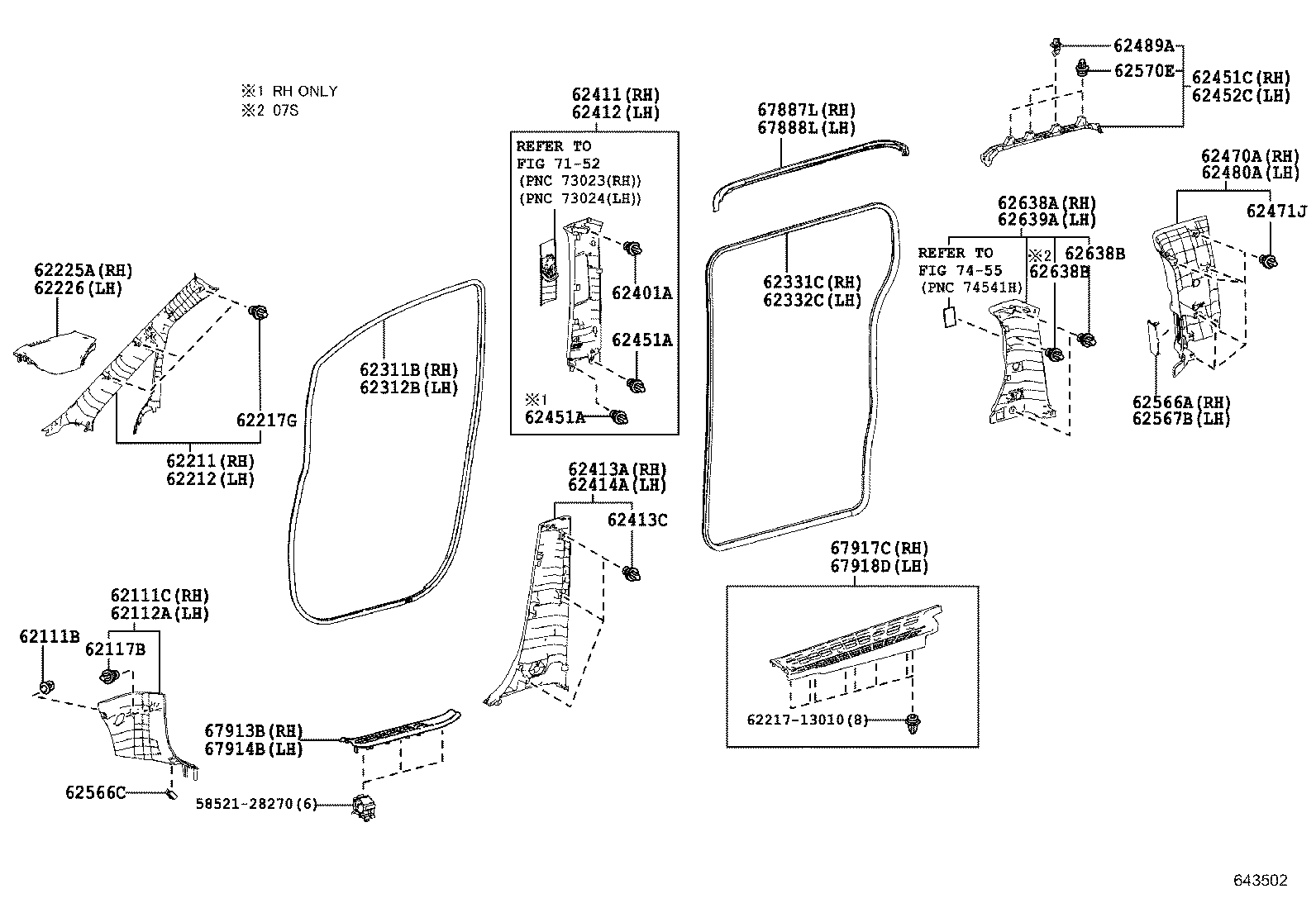

INSIDE TRIM BOARD

FRONT SIDE ILLUST NO. 1 OF 2(1401- )

NOAH | INSIDE TRIM BOARD ** Std Part 62111B - CLIP(FOR COWL SIDE TRIM) 62111C - BOARD, COWL SIDE TRIM, RH 62112A - TRIM SUB-ASSY, COWL SIDE, LH 62117B - CLIP, NO.1(FOR COWL SIDE TRIM) 62211 - GARNISH, FRONT PILLAR, RH 62212 - GARNISH, FRONT PILLAR, LH ** Std Part 62217G - CLIP, FRONT PILLAR GARNISH 62225A - GARNISH, FRONT PILLAR, LOWER RH 62226 - GARNISH, FRONT PILLAR, LOWER LH 62311B - WEATHERSTRIP, FRONT DOOR OPENING TRIM, RH 62312B - WEATHERSTRIP, FRONT DOOR OPENING TRIM, LH 62331C - WEATHERSTRIP, REAR DOOR OPENING TRIM, RH 62332C - WEATHERSTRIP, REAR DOOR OPENING TRIM, LH 62401A - CLIP (FOR CENTER PILLAR GARNISH PANEL, UPPER) 62411 - GARNISH, CENTER PILLAR, RH 62412 - GARNISH, CENTER PILLAR, LH 62413A - GARNISH, CENTER PILLAR, LOWER RH 62413C - CLIP (FOR CENTER LOWER GARNISH) 62414A - GARNISH, CENTER PILLAR, LOWER LH 62451A - CLIP, SIDE GARNISH 62451A - CLIP, SIDE GARNISH 62451C - GARNISH, ROOF SIDE RAIL, REAR RH 62452C - GARNISH, ROOF SIDE RAIL, REAR LH 62470A - GARNISH ASSY, ROOF SIDE, INNER RH 62471J - CLIP (FOR ROOF SIDE GARNISH) 62480A - GARNISH ASSY, ROOF SIDE, INNER LH 62489A - CLIP, ROOF SIDE INNER GARNISH 62566A - COVER, REAR PILLAR, RH 62566C - CLAMP, COWL SIDE TRIM 62567B - COVER, REAR PILLAR, LH 62570E - CLIP, REAR WINDOW SIDE GARNISH 62638A - GARNISH, QUARTER PILLAR, RH 62638B - CLIP 62638B - CLIP 62639A - GARNISH, QUARTER PILLAR, LH 67887L - WEATHERSTRIP, SLIDE DOOR, NO.2 RH 67888L - WEATHERSTRIP, REAR DOOR, NO.2 LH 67913B - PLATE, FRONT DOOR SCUFF, RH 67914B - PLATE, FRONT DOOR SCUFF, LH 67917C - PLATE, REAR DOOR SCUFF, RH 67918D - PLATE, REAR DOOR SCUFF, LH ** Refer Fig ** Refer Fig
