TOYOTA NOAH ZRR80R-APXSP / BODY / REAR FLOOR PANEL REAR FLOOR MEMBER

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

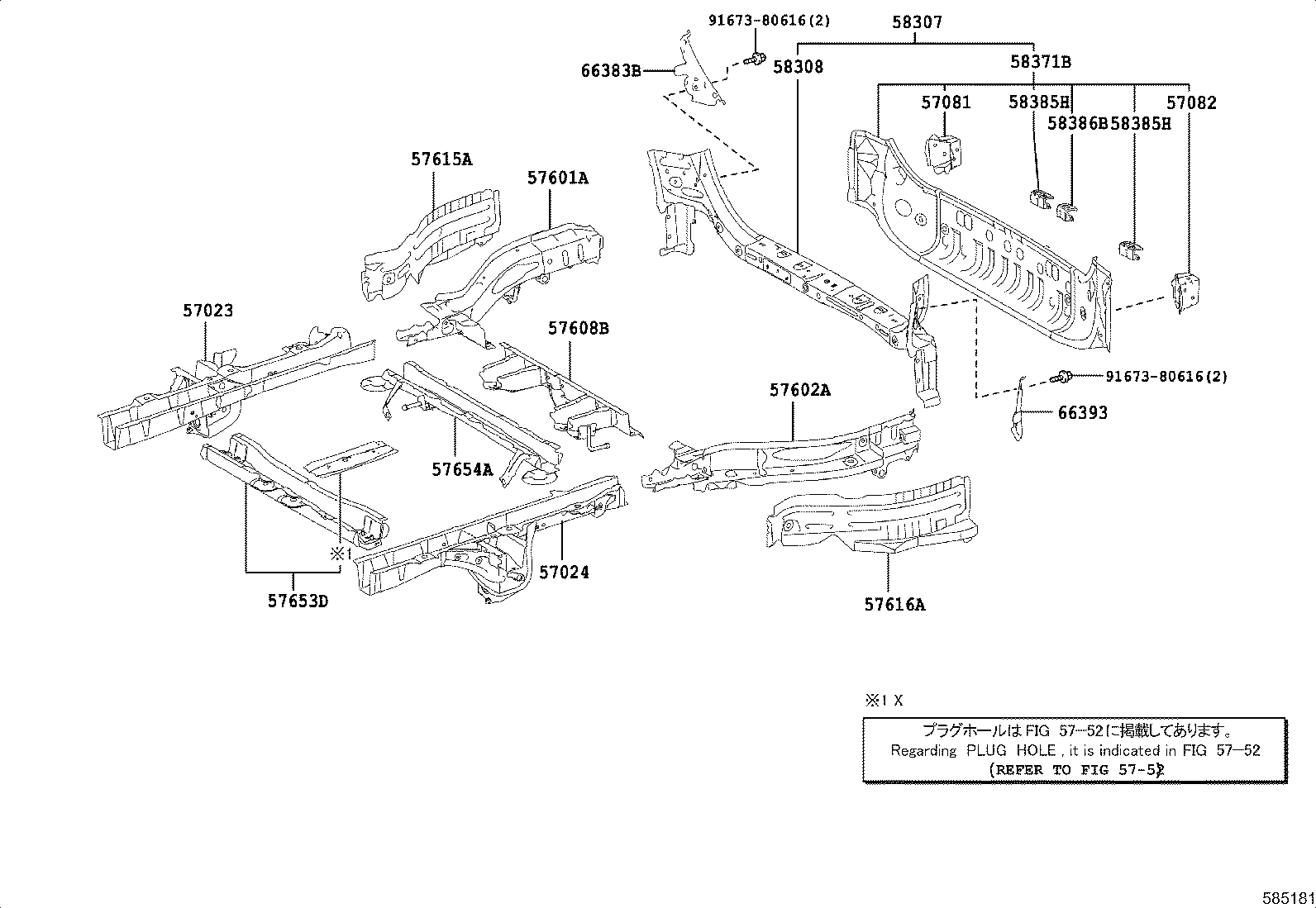

REAR FLOOR PANEL REAR FLOOR MEMBER

FLOOR SIDE MEMBER ILLUST NO. 1 OF 2(1401- )

NOAH | REAR FLOOR PANEL REAR FLOOR MEMBER 57023 - MEMBER SUB-ASSY, REAR SIDE, RH 57024 - MEMBER SUB-ASSY, REAR SIDE, LH 57081 - BRACKET SUB-ASSY, REAR BUMPER MOUNTING 57082 - BRACKET SUB-ASSY, REAR BUMPER ARM SUPPORT, LH ** Refer Fig 57601A - MEMBER SUB-ASSY, REAR FLOOR SIDE, RH 57602A - MEMBER SUB-ASSY, REAR FLOOR SIDE, LH 57608B - MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.4 57615A - MEMBER, REAR FLOOR SIDE, REAR RH 57616A - MEMBER, REAR FLOOR SIDE, REAR LH 57653D - MEMBER, REAR FLOOR CROSS, NO.2 57654A - MEMBER, REAR FLOOR CROSS, NO.3 58307 - PANEL SUB-ASSY, BODY LOWER BACK 58308 - PANEL SUB-ASSY, BODY LOWER BACK, INNER 58371B - PANEL, BODY LOWER BACK, OUTER 58385H - BRACKET, REAR BUMPER COVER, NO.1 58385H - BRACKET, REAR BUMPER COVER, NO.1 58386B - BRACKET, REAR BUMPER COVER, NO.2 66383B - BRACKET, ROPE HOOK, NO.1 RH 66393 - BRACKET, ROPE HOOK, NO.1 LH ** Std Part ** Std Part
