TOYOTA NOAH ZRR80R-APXSP / BODY / FRONT FENDER APRON DASH PANEL

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

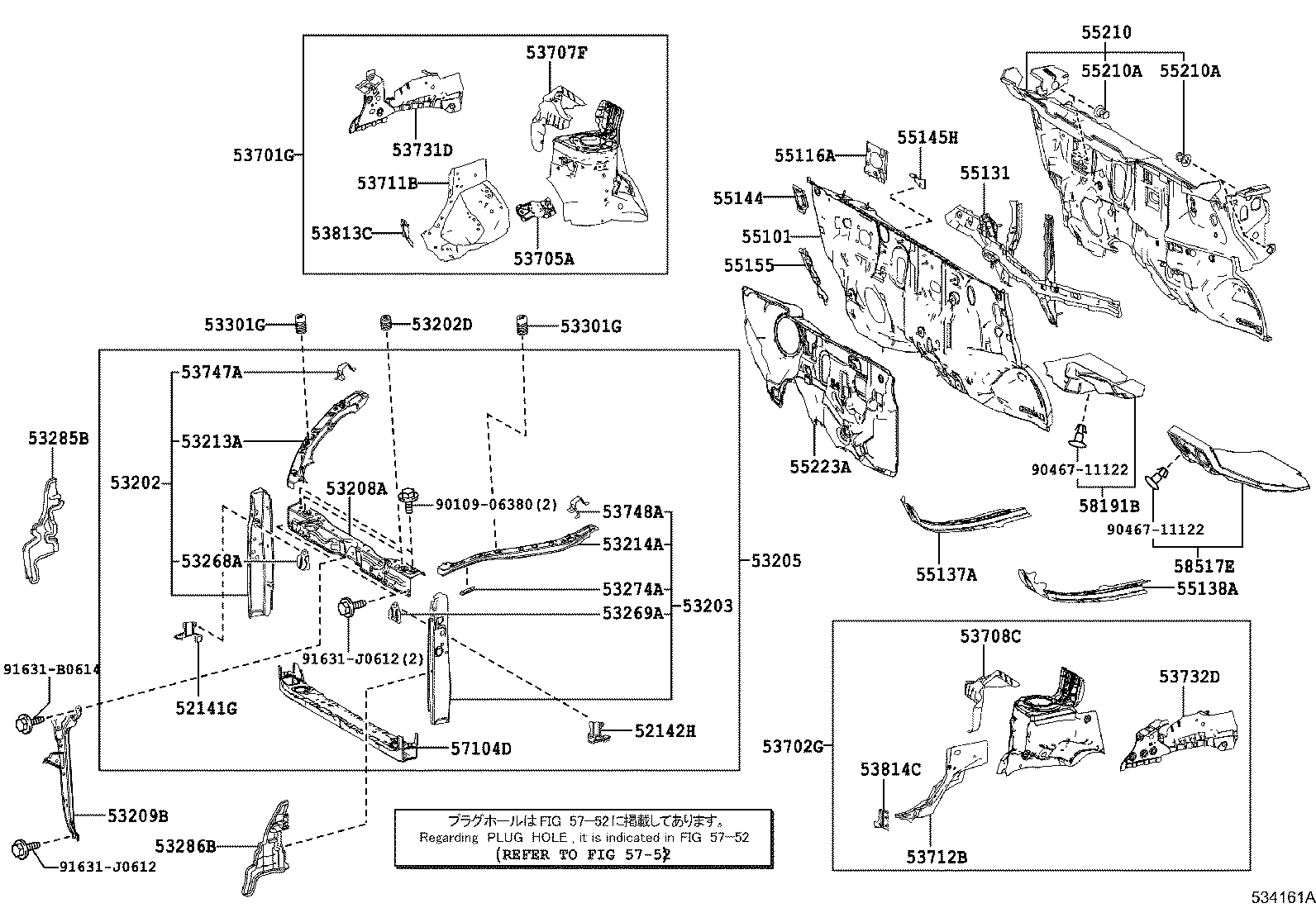

FRONT FENDER APRON DASH PANEL

(1401- )

NOAH | FRONT FENDER APRON DASH PANEL 52141G - STAY, FRONT BUMPER, RH 52142H - STAY, FRONT BUMPER, LH 53202 - SUPPORT SUB-ASSY, RADIATOR, RH 53202D - CUSHION, RADIATOR SUPPORT 53203 - SUPPORT SUB-ASSY, RADIATOR, LH 53205 - SUPPORT SUB-ASSY, RADIATOR, UPPER 53208A - SUPPORT SUB-ASSY, HOOD LOCK 53209B - BRACE SUB-ASSY, HOOD LOCK SUPPORT 53213A - SUPPORT, RADIATOR, UPPER RH 53214A - SUPPORT, RADIATOR, UPPER LH 53268A - REINFORCEMENT, RADIATOR MOUNTING, RH 53269A - REINFORCEMENT, RADIATOR MOUNTING, LH 53274A - REINFORCEMENT, RADIATOR SUPPORT, LH 53285B - SEAL, RADIATOR SIDE AIR, NO.1 53286B - SEAL, RADIATOR SIDE AIR, NO.2 53301G - CUSHION, HOOD BUMPER 53301G - CUSHION, HOOD BUMPER 53701G - APRON SUB-ASSY, FRONT FENDER, RH 53702G - APRON SUB-ASSY, FRONT FENDER, LH 53705A - BRACE SUB-ASSY, FENDER APRON, RH 53707F - GUSSET SUB-ASSY, FRONT FENDER APRON, LWR RH 53708C - GUSSET SUB-ASSY, FRONT FENDER APRON, LOWER LH 53711B - APRON, FRONT FENDER, FRONT RH 53712B - APRON, FRONT FENDER, FRONT LH 53731D - MEMBER, FRONT APRON TO COWL SIDE, UPPER RH 53732D - MEMBER, FRONT APRON TO COWL SIDE, UPPER LH 53747A - EXTENSION, APRON FENDER SIDE, RH 53748A - EXTENSION, APRON FENDER SIDE, LH 53813C - EXTENSION, FRONT FENDER, RH 53814C - EXTENSION, FRONT FENDER, LH 55101 - PANEL SUB-ASSY, DASH 55116A - PLATE, BRAKE PEDAL SUPPORT MOUNTING 55131 - REINFORCEMENT, DASH PANEL 55137A - BRACE, DASH TO FRAME, RH 55138A - BRACE, DASH TO FRAME, LH 55144 - BRACKET, COWL SIDE TRIM MOUNTING, NO.2 55145H - BASE, INSTRUMENT PANEL REINFORCEMENT MOUNTING 55155 - BRACKET, ACCELERATOR PEDAL 55210 - INSULATOR ASSY, DASH PANEL 55210A - CLIP 55210A - CLIP 55223A - INSULATOR, DASH PANEL, OUTER 57104D - MEMBER SUB-ASSY, FRONT CROSS ** Refer Fig 58191B - FOOTREST, FR FLOOR 58517E - PAD, HEEL ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
