TOYOTA HIACE KDH223R-LEPDYT / BODY / INSIDE TRIM BOARD

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

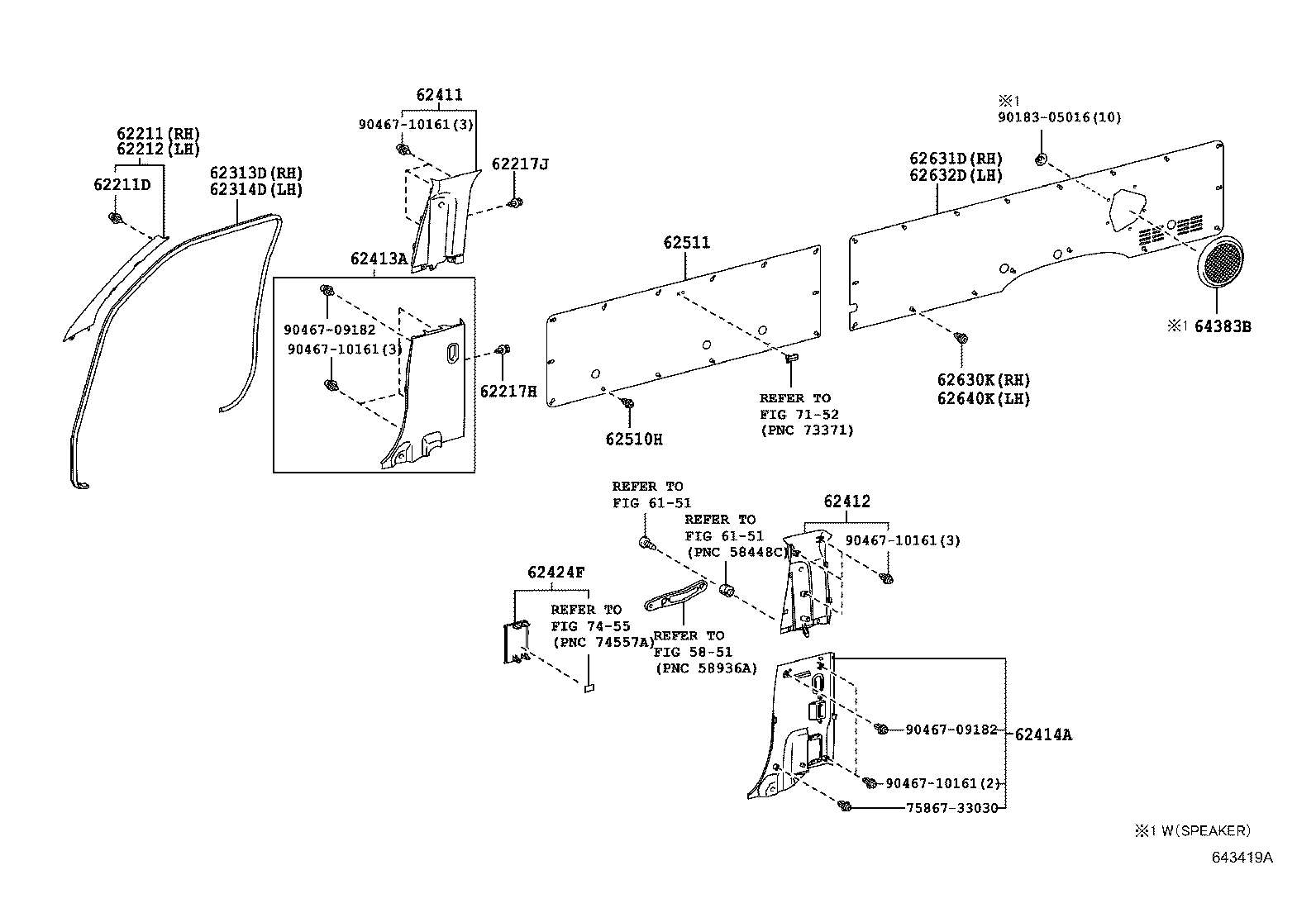

INSIDE TRIM BOARD

(1401- )KDH223,TRH223..TH

HIACE | INSIDE TRIM BOARD ** Refer Fig ** Refer Fig ** Refer Fig 62211 - GARNISH, FRONT PILLAR, RH 62211D - CLIP(FOR FRONT BODY PILLAR GARNISH) 62212 - GARNISH, FRONT PILLAR, LH 62217H - CLIP, CENTER PILLER GARNISH 62217J - CLIP, CENTER PILLER GARNISH 62313D - TRIM, FRONT DOOR OPENING, RH 62314D - TRIM, FRONT DOOR OPENING, LH 62411 - GARNISH, CENTER PILLAR, RH 62412 - GARNISH, CENTER PILLAR, LH 62413A - GARNISH, CENTER PILLAR, LOWER RH 62414A - GARNISH, CENTER PILLAR, LOWER LH 62424F - COVER, CENTER PILLAR GARNISH, LOWER LH 62510H - CLIP(FOR QUARTER TRIM FRONT PANEL) 62511 - BOARD, QUARTER INSIDE TRIM, RH 62630K - CLIP(FOR QUARTER TRIM REAR PANEL) 62631D - BOARD, QUARTER TRIM, REAR RH 62632D - BOARD, QUARTER TRIM, REAR LH 62640K - CLIP(FOR QUARTER TRIM REAR PANEL) 64383B - GRILLE, REAR SPEAKER, RH ** Refer Fig ** Refer Fig ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
