TOYOTA VIOS CHINA NSP151L-BEMNKC / BODY / FUEL TANK TUBE

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

FUEL TANK TUBE

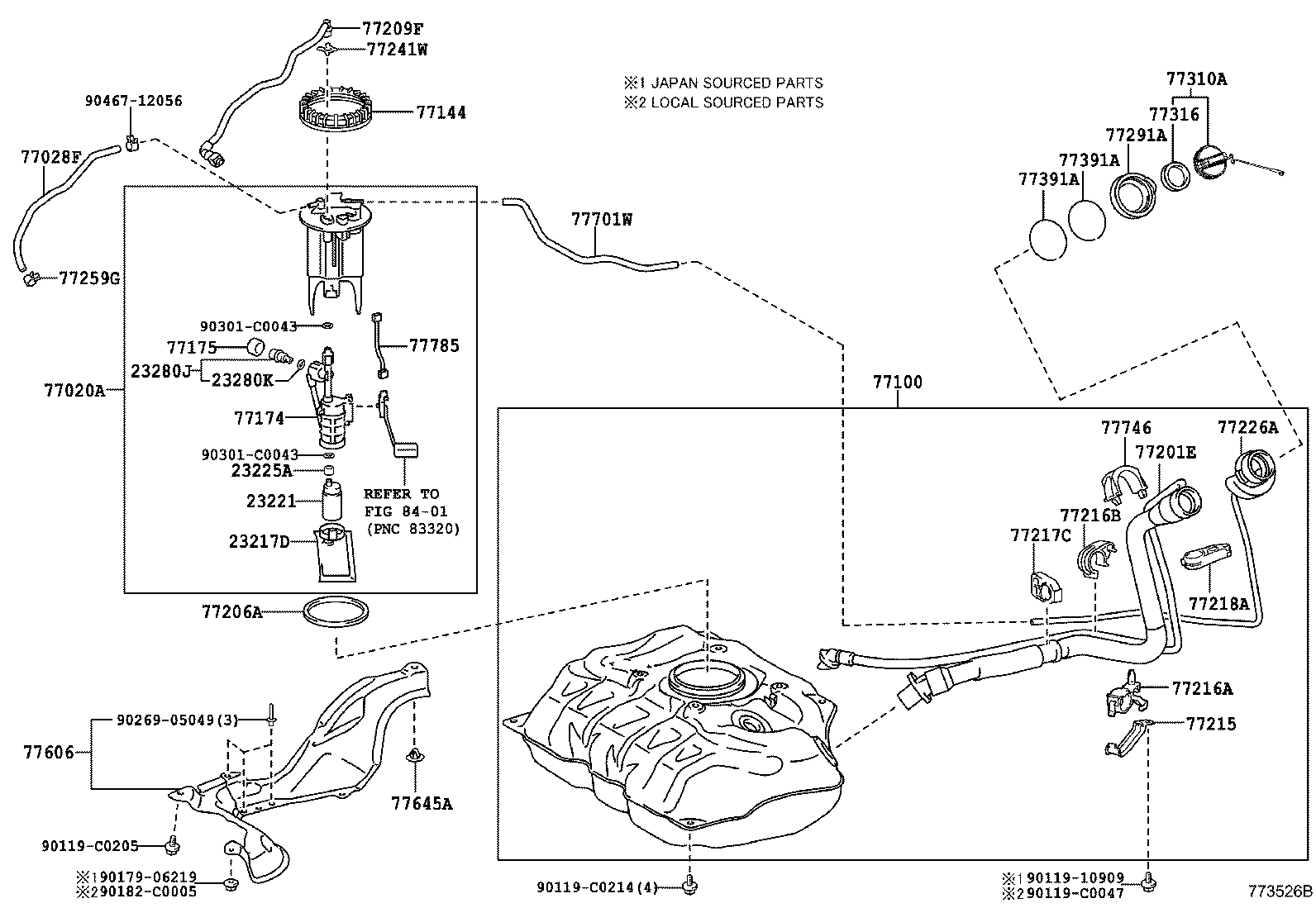

FUEL TANK ILLUST NO. 1 OF 3(1311- )

VIOS CHINA | FUEL TANK TUBE 23217D - FILTER, FUEL PUMP 23221 - PUMP, FUEL 23225A - SPACER, FUEL PUMP 23280J - REGULATOR ASSY, FUEL PRESSURE 23280K - RING, O(FOR FUEL PRESSURE REGULATOR) 77020A - TUBE ASSY, FUEL SUCTION W/PUMP & GAGE 77028F - TUBE SUB-ASSY, FUEL EMISSION, NO.2 77100 - TANK ASSY, FUEL 77144 - RETAINER, FUEL PUMP GAUGE 77174 - SUPPORT, FUEL SUCTION, NO.1 77175 - SUPPORT, FUEL SUCTION, NO.2 77201E - PIPE SUB-ASSY, FUEL TANK FILLER 77206A - GASKET (FOR FUEL TANK SUCTION TUBE) 77209F - TUBE SUB-ASSY, FUEL TANK MAIN 77215 - PLATE, FUEL TANK FILLER PIPE FLANGE 77216A - SUPPORT, FUEL TANK FILLER PIPE, NO.1 77216B - SUPPORT, FUEL TANK FILLER PIPE, NO.2 77217C - SUPPORT, FUEL TANK FILLER PIPE, NO.2 77218A - SUPPORT, FUEL TANK FILLER PIPE, NO.3 77226A - TUBE, FUEL TANK BREATHER, NO.6 77241W - CLIP, TUBE JOINT 77259G - CLIP, FUEL HOSE 77291A - SHIELD, FUEL TANK FILLER PIPE 77310A - CAP ASSY, FUEL TANK 77316 - GASKET, FUEL TANK CAP 77391A - RING, FUEL INLET BOX 77391A - RING, FUEL INLET BOX 77606 - PROTECTOR SUB-ASSY, FUEL TANK, NO.1 77645A - RETAINER, FUEL TANK PROTECTOR 77701W - HOSE SUB-ASSY, CANISTER OUTLET, NO.1 77746 - FILTER, CHARCOAL CANISTER, NO.2 77785 - HARNESS, FUEL PUMP ** Refer Fig ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
