TOYOTA PRIUS PLUG IN HBD ZVW35R-BHXEBQ / ELECTRICAL / HEATING AIR CONDITIONING COOLER UNIT

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

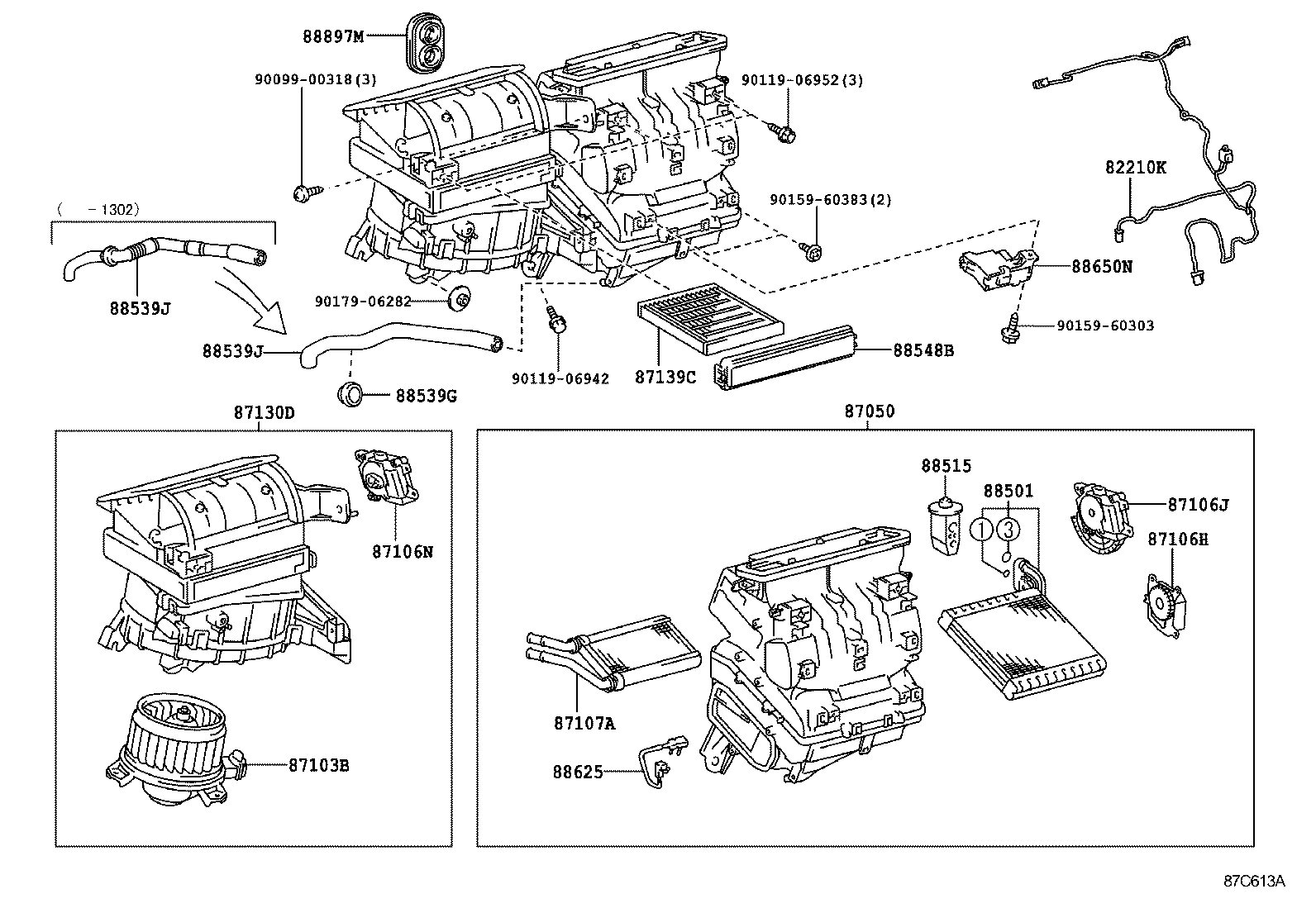

HEATING AIR CONDITIONING COOLER UNIT

ILLUST NO. 1 OF 2(1201- )

PRIUS PLUG IN HBD | HEATING AIR CONDITIONING COOLER UNIT 82210K - HARNESS ASSY, AIR CONDITIONER 87050 - RADIATOR ASSY, AIR CONDITIONER 87103B - MOTOR SUB-ASSY, BLOWER W/FAN 87106H - SERVO SUB-ASSY, DAMPER(FOR AIRMIX) 87106J - SERVO SUB-ASSY, DAMPER(FOR MODE) 87106N - SERVO SUB-ASSY, DAMPER(FOR RECIRCULATION) 87107A - UNIT SUB-ASSY, HEATER RADIATOR 87130D - BLOWER ASSY 87139C - FILTER, CLEAN AIR 88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1 88515 - VALVE, COOLER EXPANSION 88539G - GROMMET (FOR COOLER UNIT DRAIN HOSE) 88539J - HOSE, DRAIN COOLER 88539J - HOSE, DRAIN COOLER 88548B - CASE, AIR FILTER 88625 - THERMISTOR, COOLER, NO.1 88650N - AMPLIFIER ASSY, AIR CONDITIONER 88897M - GROMMET (FOR HEATER PIPE) ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
