TOYOTA ZELAS AGT20L-ALTGKC / BODY / REAR SEAT SEAT TRACK

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

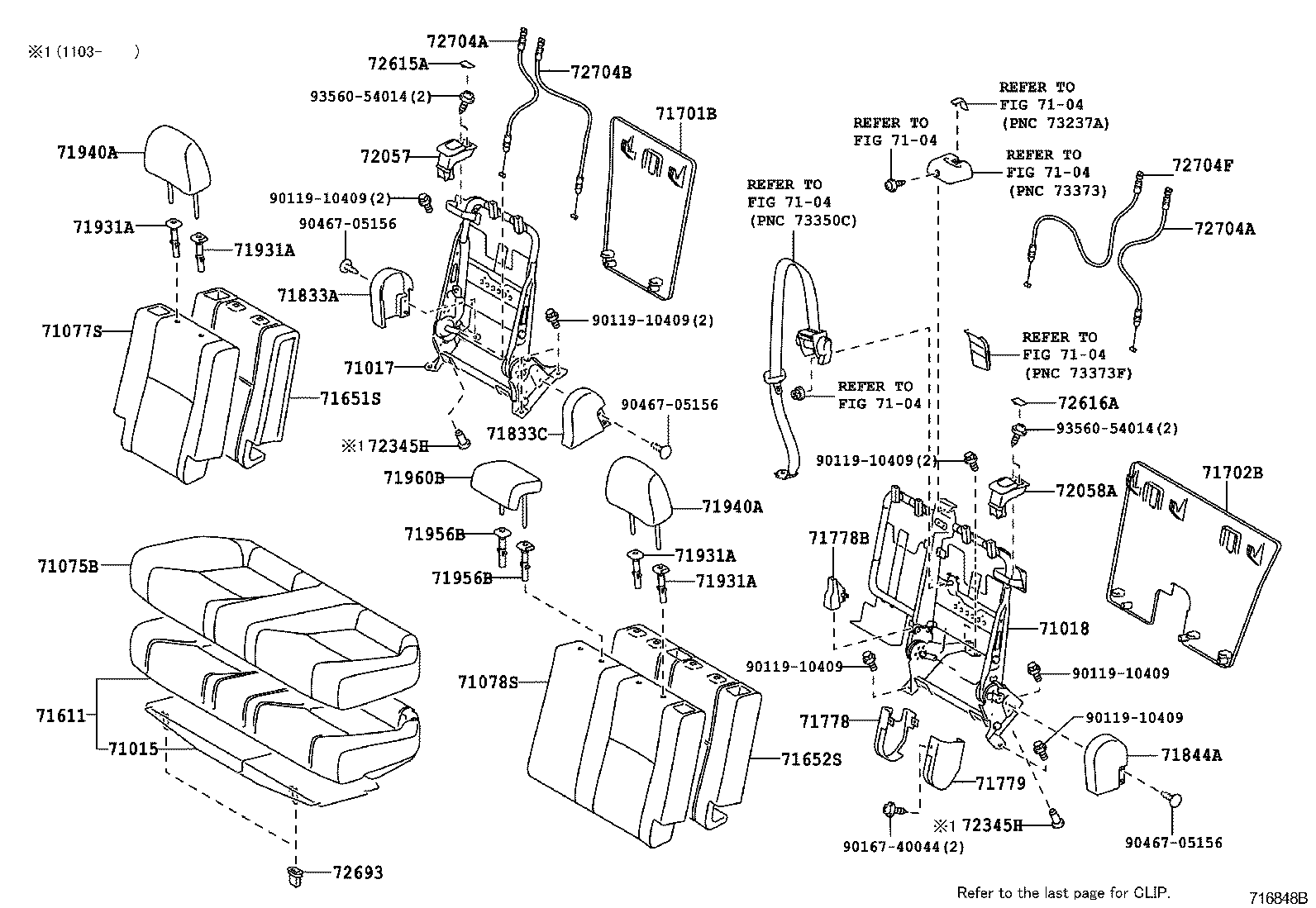

REAR SEAT SEAT TRACK

(1008- )

ZELAS | REAR SEAT SEAT TRACK 71015 - FRAME SUB-ASSY, REAR SEAT CUSHION 71017 - FRAME SUB-ASSY, REAR SEAT BACK, RH 71018 - FRAME SUB-ASSY, REAR SEAT BACK, LH ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig 71075B - COVER, REAR SEAT CUSHION (FOR BENCH TYPE) 71077S - COVER, REAR SEAT BACK, RH (FOR SEPARATE TYPE) 71078S - COVER, REAR SEAT BACK, LH(FOR SEPARATE TYPE) 71611 - PAD, REAR SEAT CUSHION 71651S - PAD, REAR SEAT BACK, RH(FOR SEPARATE TYPE) 71652S - PAD, REAR SEAT BACK, LH(FOR SEPARATE TYPE) 71701B - BOARD SUB-ASSY, REAR SEAT BACK, RH 71702B - BOARD SUB-ASSY, REAR SEAT BACK, LH 71778 - COVER, REAR SEAT SIDE HINGE MALE, RH 71778B - COVER, REAR SEAT SIDE HINGE MALE, RH 71779 - COVER, REAR SEAT SIDE HINGE MALE, LH 71833A - COVER, REAR SEAT RECLINING, NO.1 RH 71833C - COVER, REAR SEAT RECLINING, NO.2 RH 71844A - COVER, REAR SEAT RECLINING, NO.2 LH 71931A - SUPPORT, REAR SEAT HEADREST 71931A - SUPPORT, REAR SEAT HEADREST 71931A - SUPPORT, REAR SEAT HEADREST 71931A - SUPPORT, REAR SEAT HEADREST 71940A - HEADREST ASSY, REAR SEAT 71940A - HEADREST ASSY, REAR SEAT 71956B - SUPPORT, REAR SEAT HEADREST 71956B - SUPPORT, REAR SEAT HEADREST 71960B - HEADREST ASSY, REAR SEAT, CENTER 72057 - LEVER SUB-ASSY, REAR SEAT LOCK CONTROL, RH 72058A - LEVER SUB-ASSY, REAR SEAT LOCK CONTROL, LH 72345H - CAP, SEAT STAND FRAME 72345H - CAP, SEAT STAND FRAME 72615A - COVER, REAR SEAT BACK LOCK STRIKER, RH 72616A - COVER, REAR SEAT BACK LOCK STRIKER, LH 72693 - HOOK, REAR SEAT CUSHION LOCK 72704A - CABLE, REAR SEAT RECLINING CONTROL 72704A - CABLE, REAR SEAT RECLINING CONTROL 72704B - CABLE, REAR SEAT RECLINING CONTROL, NO.2 72704F - CABLE, REAR SEAT RECLINING CONTROL, NO.3 ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
