TOYOTA ZELAS AGT20L-ALTGKC / BODY / FRONT DOOR PANEL GLASS

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

FRONT DOOR PANEL GLASS

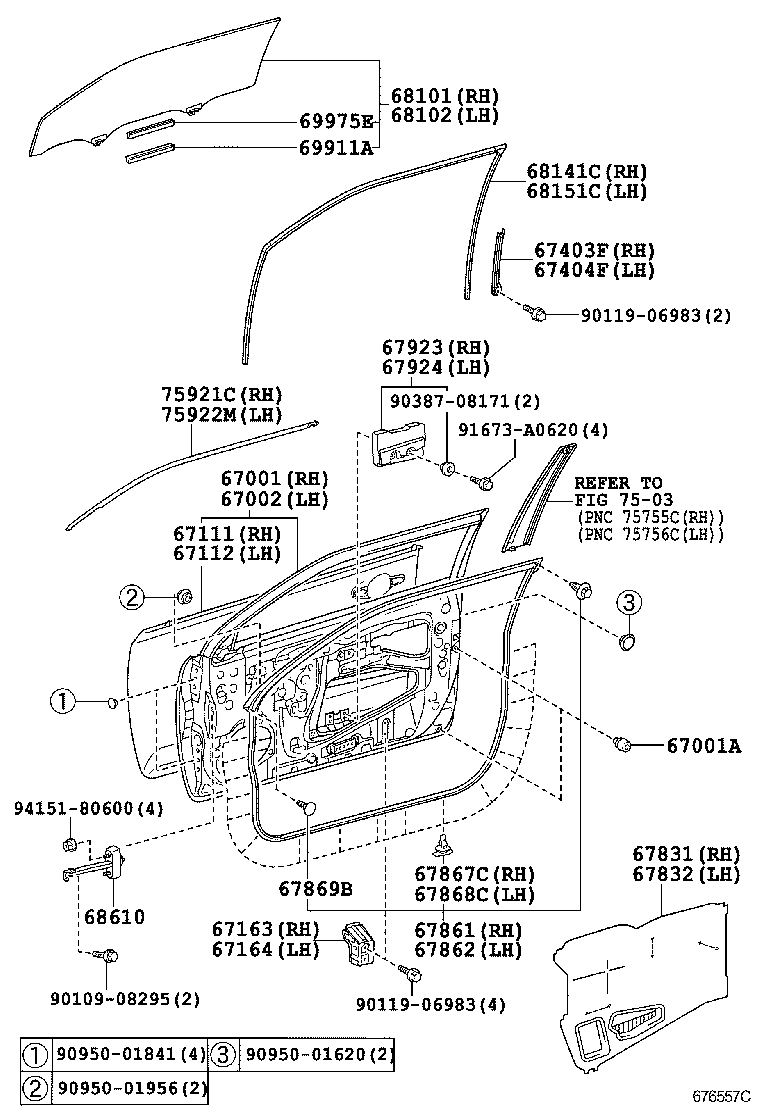

DOOR PANEL ILLUST NO. 1 OF 2(1008- )

ZELAS | FRONT DOOR PANEL GLASS 67001 - PANEL SUB-ASSY, FRONT DOOR, RH 67001A - CUSHION, FRONT DOOR PANEL 67002 - PANEL SUB-ASSY, FRONT DOOR, LH 67111 - PANEL, FRONT DOOR, OUTER RH 67112 - PANEL, FRONT DOOR, OUTER LH 67163 - EXTENSION, FRONT DOOR INSIDE PANEL REINFORCEMENT, REAR RH 67164 - EXTENSION, FRONT DOOR INSIDE PANEL REINFORCEMENT, REAR LH 67403F - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH 67404F - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH 67831 - COVER, FRONT DOOR SERVICE HOLE, RH 67832 - COVER, FRONT DOOR SERVICE HOLE, LH 67861 - WEATHERSTRIP, FRONT DOOR, RH 67862 - WEATHERSTRIP, FRONT DOOR, LH 67867C - RETAINER, FRONT DOOR WEATHERSTRIP, RH 67868C - RETAINER, FRONT DOOR WEATHERSTRIP, LH 67869B - CLIP, FRONT DOOR WEATHERSTRIP 67923 - CUSHION, FRONT DOOR STIFFENER, NO.1 67924 - CUSHION, FRONT DOOR STIFFENER, NO.2 68101 - GLASS SUB-ASSY, FRONT DOOR, RH 68102 - GLASS SUB-ASSY, FRONT DOOR, LH 68141C - RUN, FRONT DOOR GLASS, RH 68151C - RUN, FRONT DOOR GLASS, LH 68610 - CHECK ASSY, FRONT DOOR 69911A - CHANNEL, FRONT DOOR GLASS, NO.1 69975E - FILLER, FRONT DOOR GLASS CHANNEL, NO.1 ** Refer Fig 75921C - TAPE, BLACK OUT, NO.1 RH 75922M - TAPE, BLACK OUT, NO.1 LH ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
