TOYOTA ZELAS AGT20L-ALTGKC / BODY / FRONT BUMPER BUMPER STAY

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

FRONT BUMPER BUMPER STAY

(1008-1305)GCC,GEN ; (1102-1306)CHI

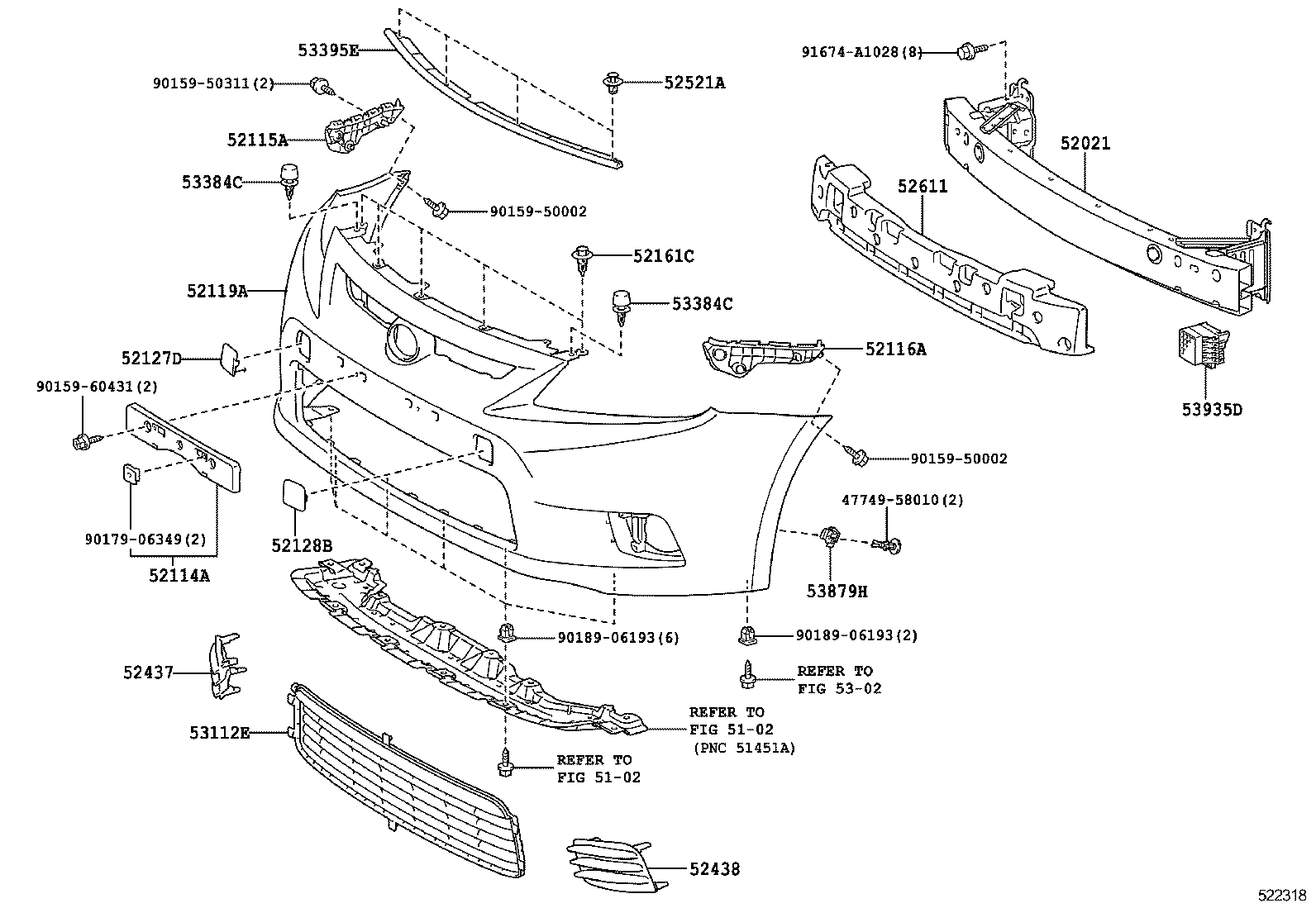

ZELAS | FRONT BUMPER BUMPER STAY ** Std Part ** Refer Fig ** Refer Fig 52021 - REINFORCEMENT SUB-ASSY, FRONT BUMPER 52114A - BRACKET, FRONT BUMPER EXTENTION MOUNTING 52115A - SUPPORT, FRONT BUMPER SIDE, RH 52116A - SUPPORT, FRONT BUMPER SIDE, LH 52119A - COVER, FRONT BUMPER 52127D - COVER, FRONT BUMPER HOLE, RH 52128B - COVER, FRONT BUMPER HOLE, LH 52161C - PIECE, FRONT BUMPER 52437 - COVER, FRONT BUMPER GUARD, RH 52438 - COVER, FRONT BUMPER GUARD, LH 52521A - CLIP(FOR FRONT BUMPER RETAINER) 52611 - ABSORBER, FRONT BUMPER ENERGY ** Refer Fig 53112E - GRILLE, RADIATOR, LOWER NO.1 53384C - CUSHION, HOOD, CENTER 53384C - CUSHION, HOOD, CENTER 53395E - SEAL, HOOD TO FRONT END PANEL 53879H - RETAINER, FRONT FENDER LINER 53935D - PROTECTOR, FRONT END PANEL ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
