TOYOTA PRIUS CHINA ZVW30L-AHXEBC / BODY / FRONT FENDER APRON DASH PANEL

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

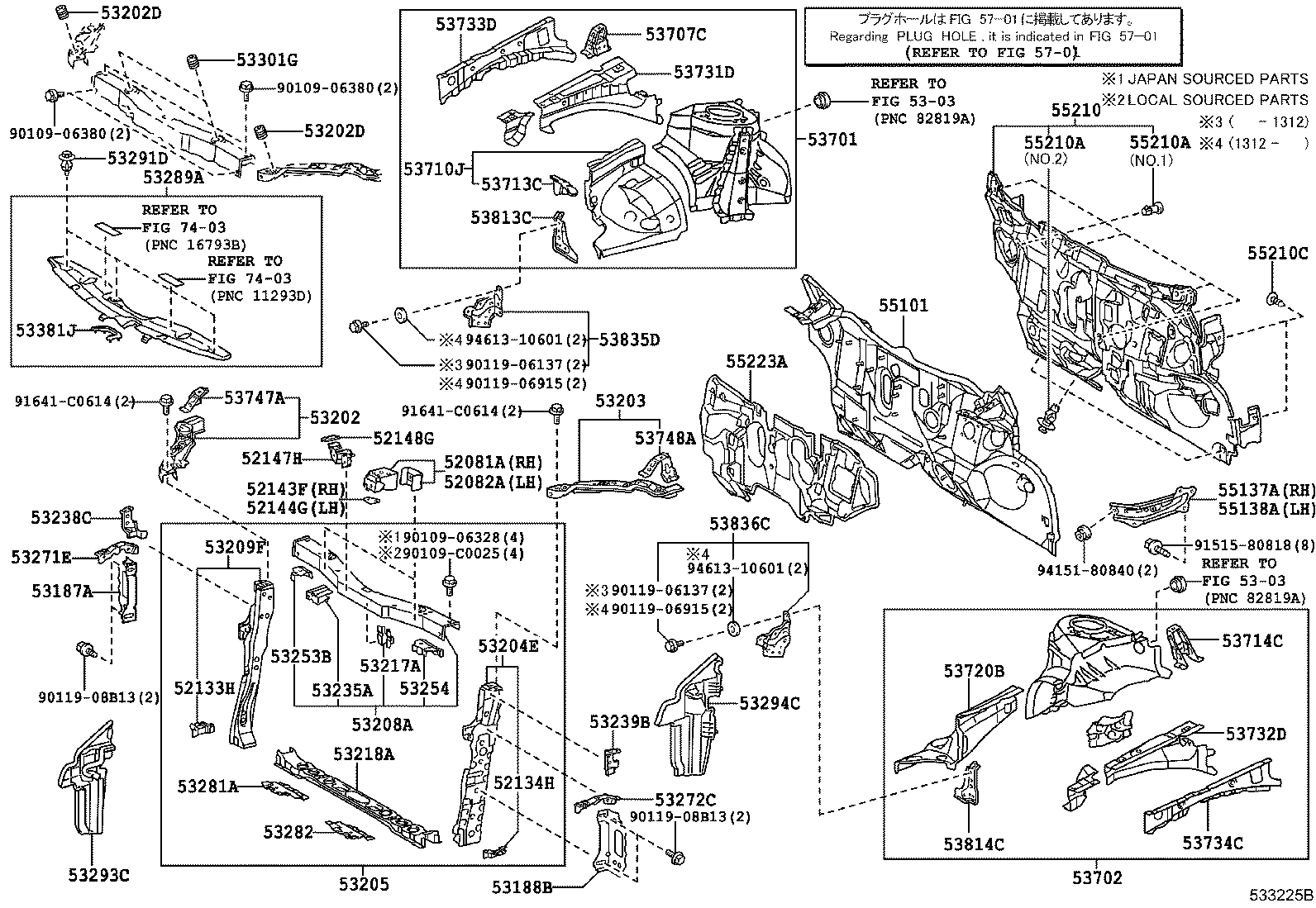

FRONT FENDER APRON DASH PANEL

(1112- )

 PRIUS CHINA |  FRONT FENDER APRON DASH PANEL 52081A - STAY SUB-ASSY, FRONT BUMPER, RH 52082A - STAY SUB-ASSY, FRONT BUMPER, LH 52133H - BRACKET, FRONT BUMPER, RH 52134H - BRACKET, FRONT BUMPER, LH 52143F - BRACKET, FRONT BUMPER SIDE, RH 52144G - BRACKET, FRONT BUMPER SIDE, LH 52147H - BRACKET, FRONT BUMPER MOUNTING 52148G - BRACKET, FRONT BUMPER MOUNTING, NO.2 53187A - STAY, RADIATOR SUPPORT, RH 53188B - STAY, RADIATOR SUPPORT, LH 53202 - SUPPORT SUB-ASSY, RADIATOR, RH 53202D - CUSHION, RADIATOR SUPPORT 53202D - CUSHION, RADIATOR SUPPORT 53203 - SUPPORT SUB-ASSY, RADIATOR, LH 53204E - BRACE SUB-ASSY, RADIATOR SUPPORT TO CROSS MEMBER, LH 53205 - SUPPORT SUB-ASSY, RADIATOR, UPPER 53208A - SUPPORT SUB-ASSY, HOOD LOCK 53209F - BRACE SUB-ASSY, RADIATOR SUPPORT TO CROSS MEMBER, RH 53217A - BRACE, HOOD LOCK SUPPORT 53218A - SUPPORT, RADIATOR, LOWER 53235A - BRACKET, HORN MOUNTING, RH 53238C - BRACKET, HOOD BUMPER MOUNTING, RH 53239B - BRACKET, HOOD BUMPER MOUNTING, LH 53253B - BRACKET, RADIATOR MOUNTING, UPPER 53254 - BRACKET, RADIATOR MOUNTING, UPPER LH 53271E - BRACKET, HEADLAMP MOUNTING, RH 53272C - BRACKET, HEADLAMP MOUNTING, LH 53281A - REINFORCEMENT, FRONT BODY MOUNTING, RH 53282 - REINFORCEMENT, FRONT BODY MOUNTING, LH 53289A - COVER, RADIATOR SUPPORT OPENING 53291D - CLIP, RADIATOR SUPPORT TO FRAME 53293C - DEFLECTOR, RADIATOR SIDE, RH 53294C - DEFLECTOR, RADIATOR SIDE, LH 53301G - CUSHION, HOOD BUMPER 53381J - SEAL, HOOD TO RADIATOR SUPPORT 53701 - APRON SUB-ASSY, FRONT FENDER, RH 53702 - APRON SUB-ASSY, FRONT FENDER, LH 53707C - EXTENSION SUB-ASSY, FRONT FENDER APRON, FRONT RH 53710J - APRON ASSY, FRONT FENDER, RH 53713C - EXTENSION, FRONT FENDER APRON, FRONT RH 53714C - EXTENSION, FRONT FENDER APRON, FRONT LH 53720B - APRON ASSY, FRONT FENDER, LH 53731D - MEMBER, FRONT APRON TO COWL SIDE, UPPER RH 53732D - MEMBER, FRONT APRON TO COWL SIDE, UPPER LH 53733D - MEMBER, FRONT APRON TO COWL SIDE, LOWER FRONT RH 53734C - MEMBER, FRONT APRON TO COWL SIDE, LOWER FRONT LH 53747A - EXTENSION, APRON FENDER SIDE, RH 53748A - EXTENSION, APRON FENDER SIDE, LH 53813C - EXTENSION, FRONT FENDER, RH 53814C - EXTENSION, FRONT FENDER, LH 53835D - BRACKET, FRONT SIDE PANEL, RH 53836C - BRACKET, FRONT SIDE PANEL, LH 55101 - PANEL SUB-ASSY, DASH 55137A - BRACE, DASH TO FRAME, RH 55138A - BRACE, DASH TO FRAME, LH 55210 - INSULATOR ASSY, DASH PANEL 55210A - CLIP 55210A - CLIP 55210C - CLIP 55223A - INSULATOR, DASH PANEL, OUTER ** Refer Fig  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
