TOYOTA PRIUS C NHP10R-AHXVB / ELECTRICAL / HEATING AIR CONDITIONING CONTROL AIR DUCT

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

HEATING AIR CONDITIONING CONTROL AIR DUCT

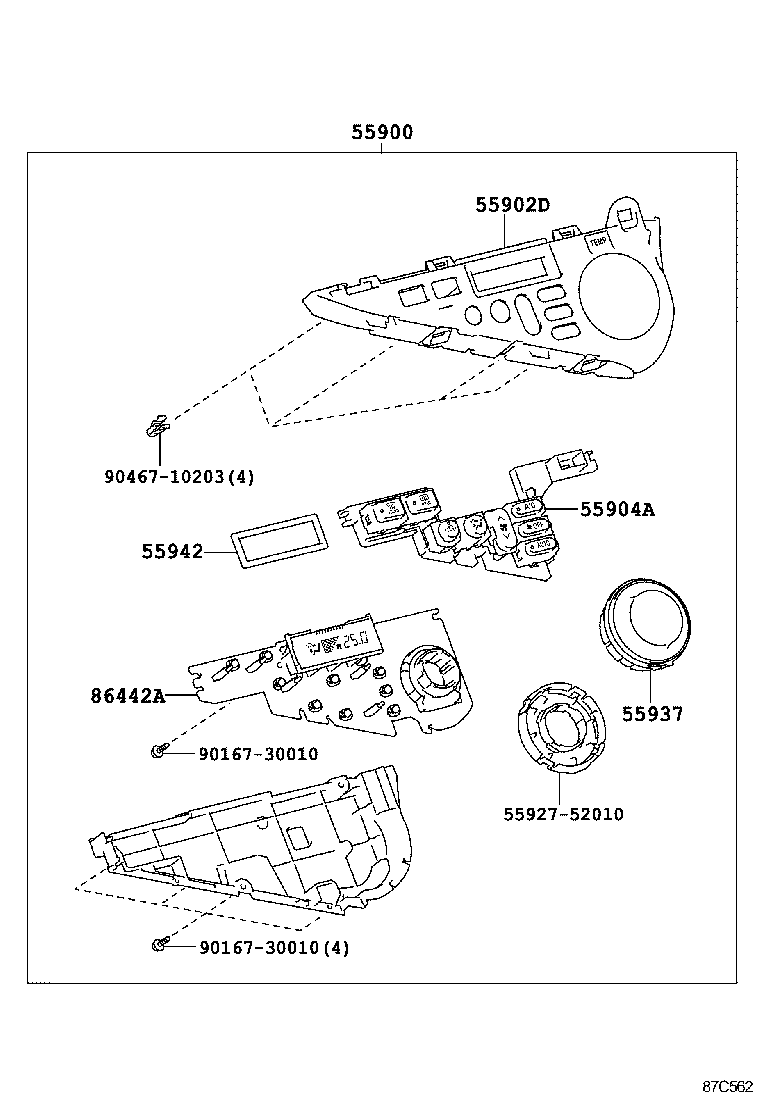

HEATER CONTROL ILLUST NO. 1 OF 3(1112- )RHD

PRIUS C | HEATING AIR CONDITIONING CONTROL AIR DUCT 55900 - CONTROL ASSY, AIR CONDITIONER 55902D - PANEL SUB-ASSY, AIR CONDITIONER 55904A - HOUSING SUB-ASSY, HEATER CONTROL ** Std Part 55937 - KNOB, HEATER CONTROL LEVER 55942 - GUARD, HEATER CONTROL 86442A - BOARD, HEATER CONTROL SWITCH ** Std Part ** Std Part ** Std Part
