TOYOTA PRIUS C NHP10L-AHXVB / BODY / FUEL TANK TUBE

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

FUEL TANK TUBE

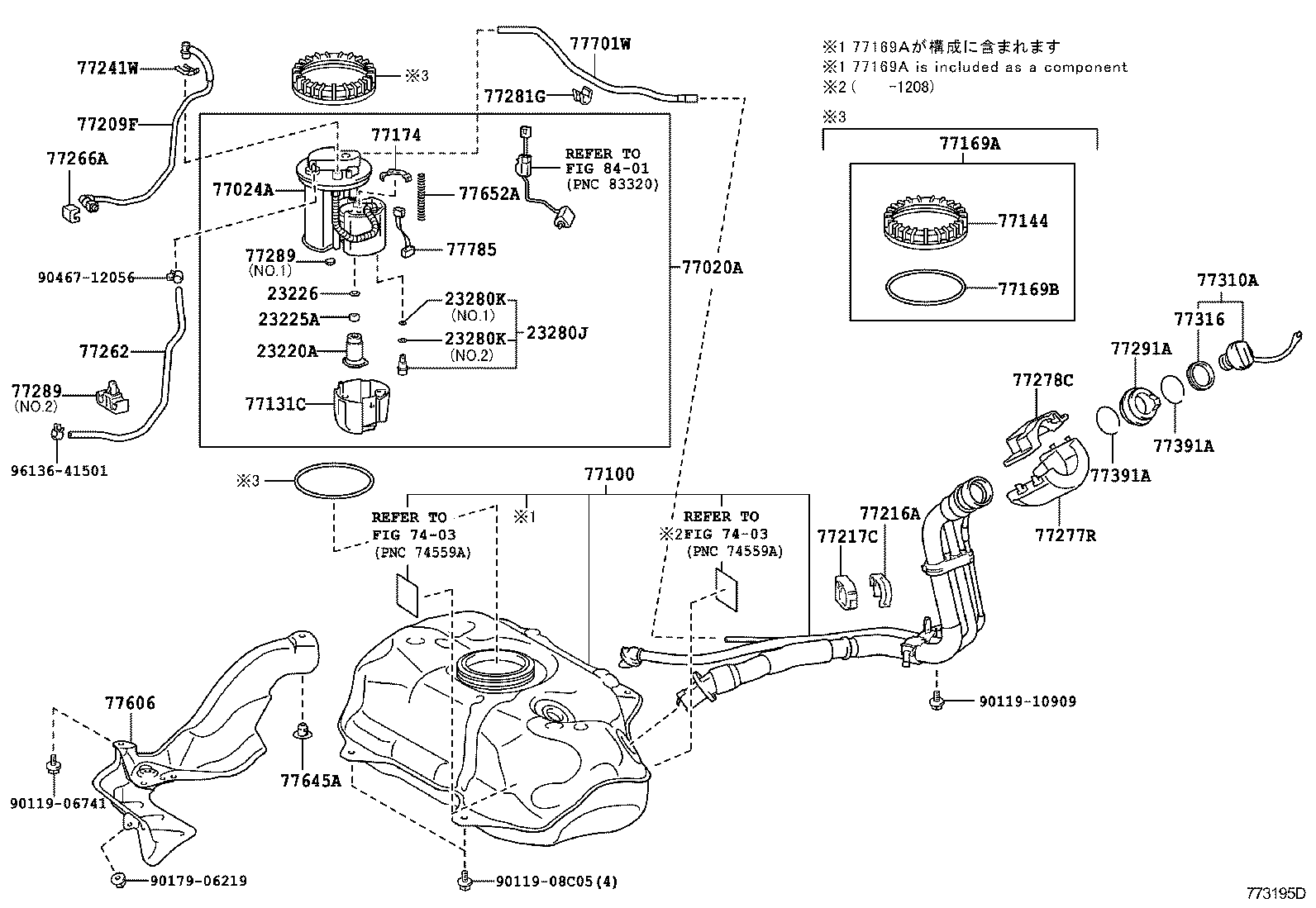

FUEL TANK ILLUST NO. 1 OF 3(1112- )

 PRIUS C |  FUEL TANK TUBE 23220A - PUMP ASSY, FUEL W/FILTER 23225A - SPACER, FUEL PUMP 23226 - RING, O(FOR FUEL PUMP) 23280J - REGULATOR ASSY, FUEL PRESSURE 23280K - RING, O(FOR FUEL PRESSURE REGULATOR) 23280K - RING, O(FOR FUEL PRESSURE REGULATOR) ** Refer Fig ** Refer Fig 77020A - TUBE ASSY, FUEL SUCTION W/PUMP & GAGE 77024A - PLATE SUB-ASSY, FUEL SUCTION 77100 - TANK ASSY, FUEL 77131C - SUB-TANK, FUEL, NO.1 77144 - RETAINER, FUEL PUMP GAUGE 77169A - GASKET, FUEL SUCTION TUBE SET 77169B - GASKET, FUEL SUCTION TUBE SET, NO.1 77174 - SUPPORT, FUEL SUCTION, NO.1 77209F - TUBE SUB-ASSY, FUEL TANK MAIN 77216A - SUPPORT, FUEL TANK FILLER PIPE, NO.1 77217C - SUPPORT, FUEL TANK FILLER PIPE, NO.2 77241W - CLIP, TUBE JOINT 77262 - TUBE, FUEL EMISSION, NO.2 77266A - PROTECTOR, FUEL TUBE, NO.1 77277R - PROTECTOR, FUEL TANK FILLER PIPE 77278C - PROTECTOR, FUEL TANK FILLER PIPE, NO.2 77281G - CLAMP, FUEL HOSE 77289 - HOLDER, FUEL TANK PIPE SETTING 77289 - HOLDER, FUEL TANK PIPE SETTING 77291A - SHIELD, FUEL TANK FILLER PIPE 77310A - CAP ASSY, FUEL TANK 77316 - GASKET, FUEL TANK CAP 77391A - RING, FUEL INLET BOX 77391A - RING, FUEL INLET BOX 77606 - PROTECTOR SUB-ASSY, FUEL TANK, NO.1 77645A - RETAINER, FUEL TANK PROTECTOR 77652A - CUSHION, FUEL TANK, NO.2 77701W - HOSE SUB-ASSY, CANISTER OUTLET, NO.1 77785 - HARNESS, FUEL PUMP ** Refer Fig  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
