TOYOTA LAND CRUISER PRADO GRJ150L-GKAGKC / POWERTRAIN-CHASSIS / FRONT SPRING SHOCK ABSORBER

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

FRONT SPRING SHOCK ABSORBER

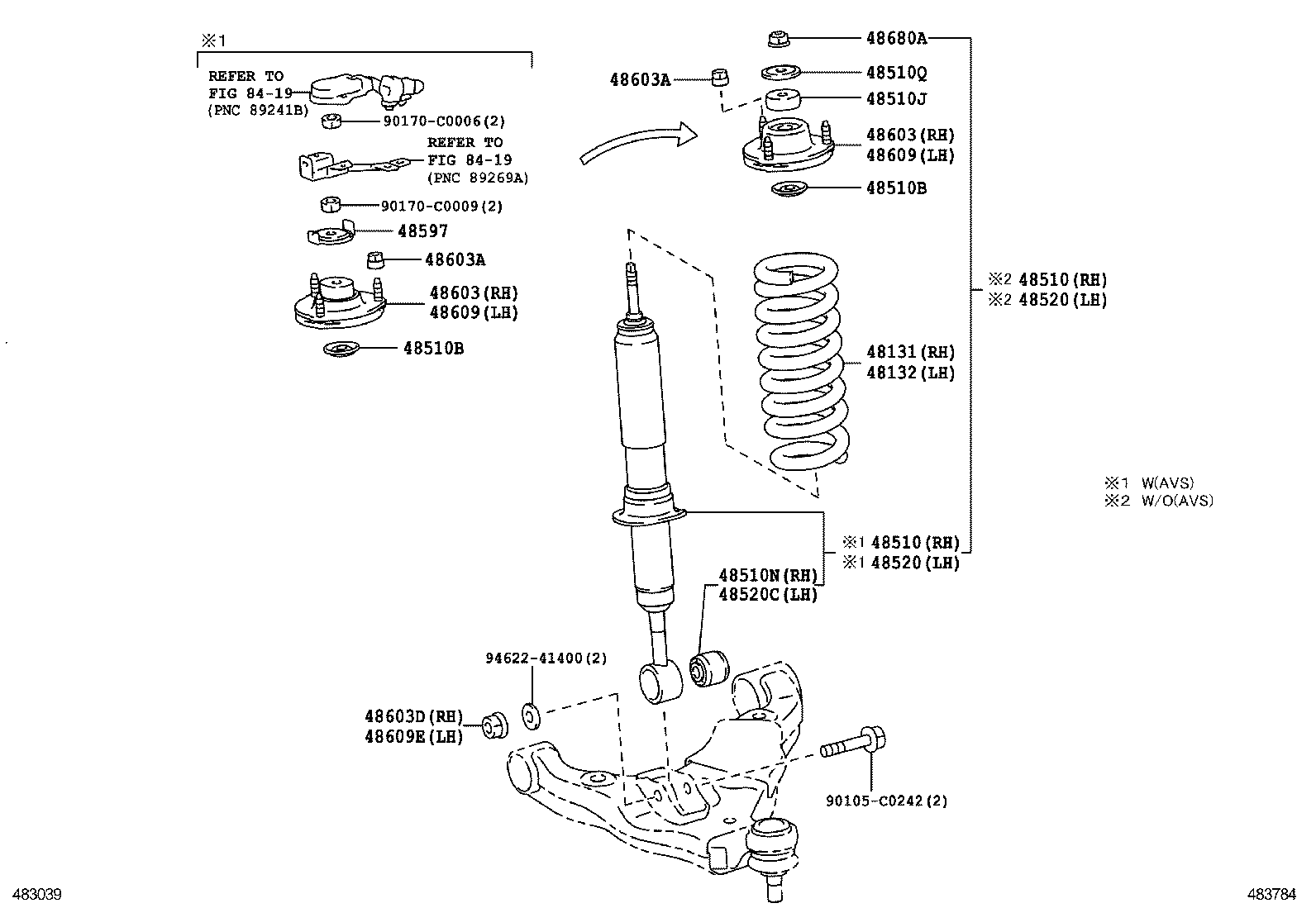

ILLUST NO. 1 OF 2(1005- )VX

LAND CRUISER PRADO | FRONT SPRING SHOCK ABSORBER 48131 - SPRING, FRONT COIL, RH 48132 - SPRING, FRONT COIL, LH 48510 - ABSORBER ASSY, SHOCK, FRONT RH 48510 - ABSORBER ASSY, SHOCK, FRONT RH 48510B - RETAINER, CUSHION, NO.1(FOR FRONT SHOCK ABSORBER) 48510B - RETAINER, CUSHION, NO.1(FOR FRONT SHOCK ABSORBER) 48510J - CUSHION, FRONT SHOCK ABSORBER, NO.1 48510N - BUSH(FOR FRONT SHOCK ABSORBER RH) 48510Q - RETAINER, CUSHION, NO.3(FOR FRONT SHOCK ABSORBER) 48520 - ABSORBER ASSY, SHOCK, FRONT LH 48520 - ABSORBER ASSY, SHOCK, FRONT LH 48520C - BUSH(FOR FRONT SHOCK ABSORBER LH) 48597 - RETAINER, SHOCK ABSORBER CUSHION 48603 - SUPPORT SUB-ASSY, FRONT SUSPENSION, RH 48603 - SUPPORT SUB-ASSY, FRONT SUSPENSION, RH 48603A - NUT(FOR FRONT SUSPENSION SUPPORT) 48603A - NUT(FOR FRONT SUSPENSION SUPPORT) 48603D - NUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER RH) 48609 - SUPPORT SUB-ASSY, FRONT SUSPENSION, LH 48609 - SUPPORT SUB-ASSY, FRONT SUSPENSION, LH 48609E - NUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER LH) 48680A - NUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER) ** Refer Fig ** Refer Fig ** Std Part ** Std Part ** Std Part ** Std Part
