TOYOTA LAND CRUISER PRADO GRJ150L-GKAGKC / POWERTRAIN-CHASSIS / PARKING BRAKE CABLE

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

PARKING BRAKE CABLE

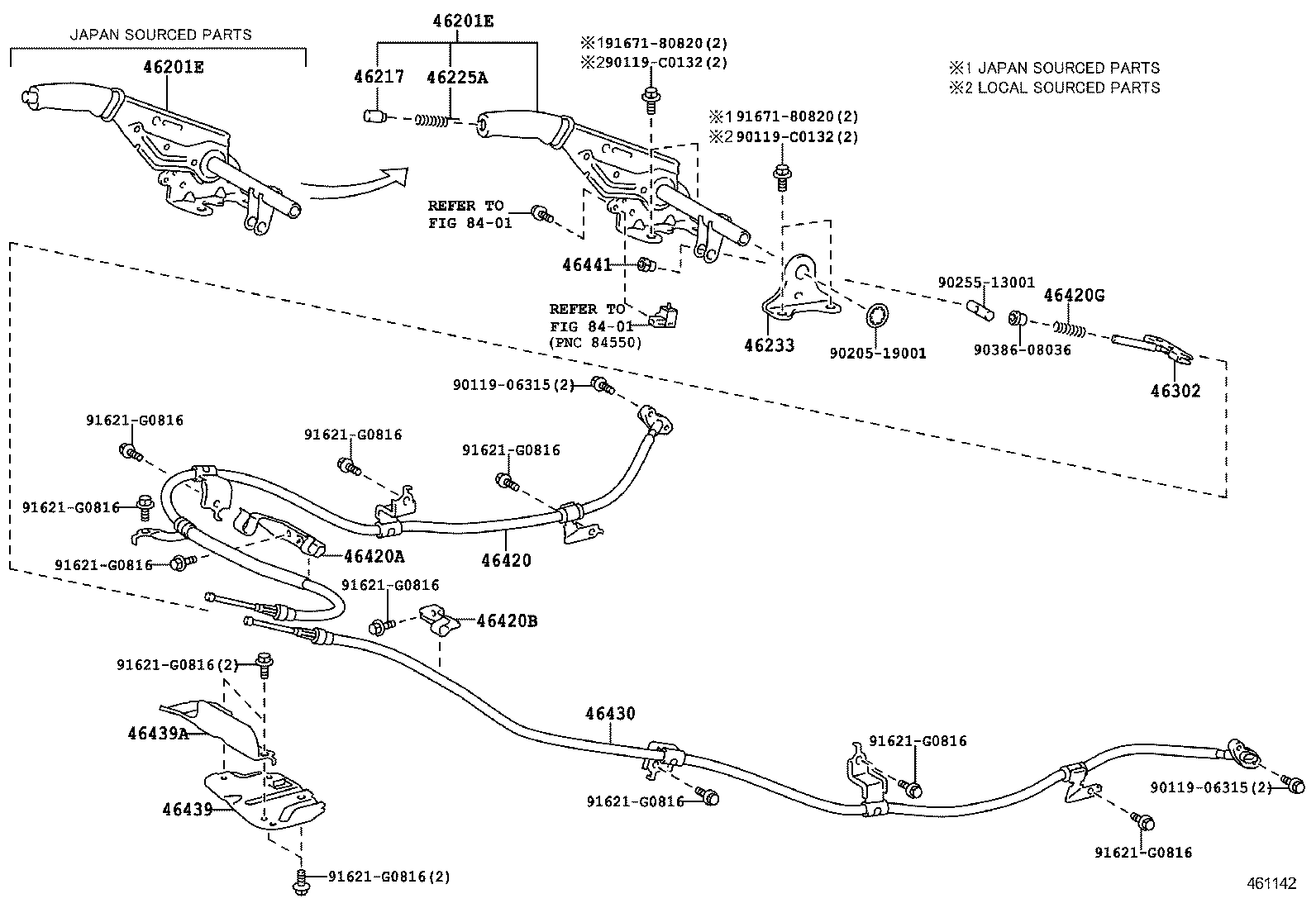

ILLUST NO. 1 OF 1(1005- )

 LAND CRUISER PRADO |  PARKING BRAKE CABLE 46201E - LEVER SUB-ASSY, PARKING BRAKE 46201E - LEVER SUB-ASSY, PARKING BRAKE 46217 - KNOB, PARKING BRAKE RELEASE ROD 46225A - SPRING, COMPRESSION(FOR PARKING BRAKE PAWL ROD) 46233 - SUPPORT, PARKING BRAKE CENTER 46302 - ROD SUB-ASSY, PARKING BRAKE PULL, NO.1 46420 - CABLE ASSY, PARKING BRAKE, NO.2 46420A - CLAMP, NO.1(FOR PARKING BRAKE CABLE) 46420B - CLAMP, NO.2(FOR PARKING BRAKE CABLE) 46420G - SPRING(FOR PARKING CABLE INNER WIRE SET) 46430 - CABLE ASSY, PARKING BRAKE, NO.3 46439 - INSULATOR, PARKING BRAKE CABLE HEAT 46439A - INSULATOR, PARKING BRAKE CABLE HEAT, NO.2 46441 - NUT, WIRE ADJUSTING, NO.1 ** Refer Fig ** Refer Fig  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
