TOYOTA CAMRY HYBRID CHINA ACV51L-JEPSKC / POWERTRAIN-CHASSIS / OIL COOLER TUBE ATM

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

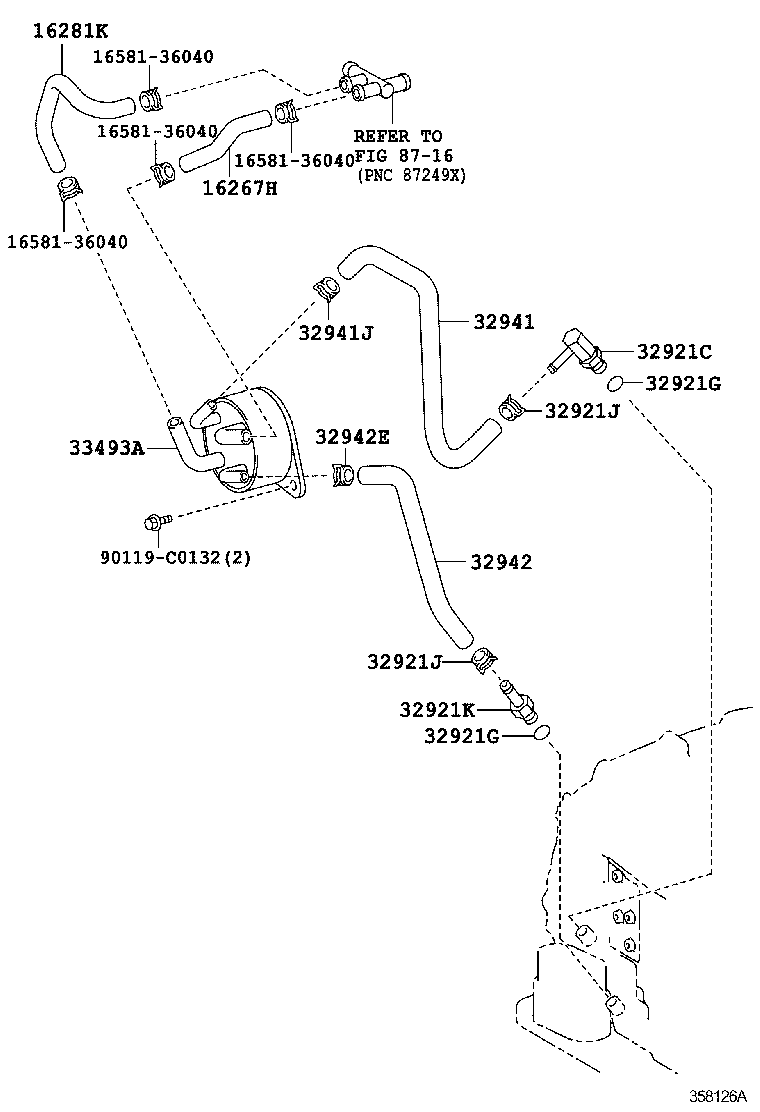

OIL COOLER TUBE ATM

U241E (1112- )ACV51

 CAMRY HYBRID CHINA |  OIL COOLER TUBE ATM 16267H - HOSE, WATER BY-PASS, NO.3 16281K - HOSE, WATER BY-PASS, NO.4  ** Std Part  ** Std Part  ** Std Part  ** Std Part 32921C - UNION(FOR OIL COOLER TUBE) 32921G - RING, O(FOR OIL COOLER TUBE UNION) 32921G - RING, O(FOR OIL COOLER TUBE UNION) 32921J - CLIP(FOR OIL COOLER HOSE) 32921J - CLIP(FOR OIL COOLER HOSE) 32921K - UNION, NO.2(FOR OIL COOLER TUBE) 32941 - HOSE, OIL COOLER INLET, NO.1 32941J - CLIP, NO.1(FOR OIL COOLER HOSE) 32942 - HOSE, OIL COOLER OUTLET, NO.1 32942E - CLIP, NO.2(FOR OIL COOLER HOSE) 33493A - COOLER, TRANSMISSION OIL ** Refer Fig  ** Std Part
