TOYOTA CAMRY AURION HV ARL ASV50R-DETDKQ / BODY / FRONT FENDER APRON DASH PANEL

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

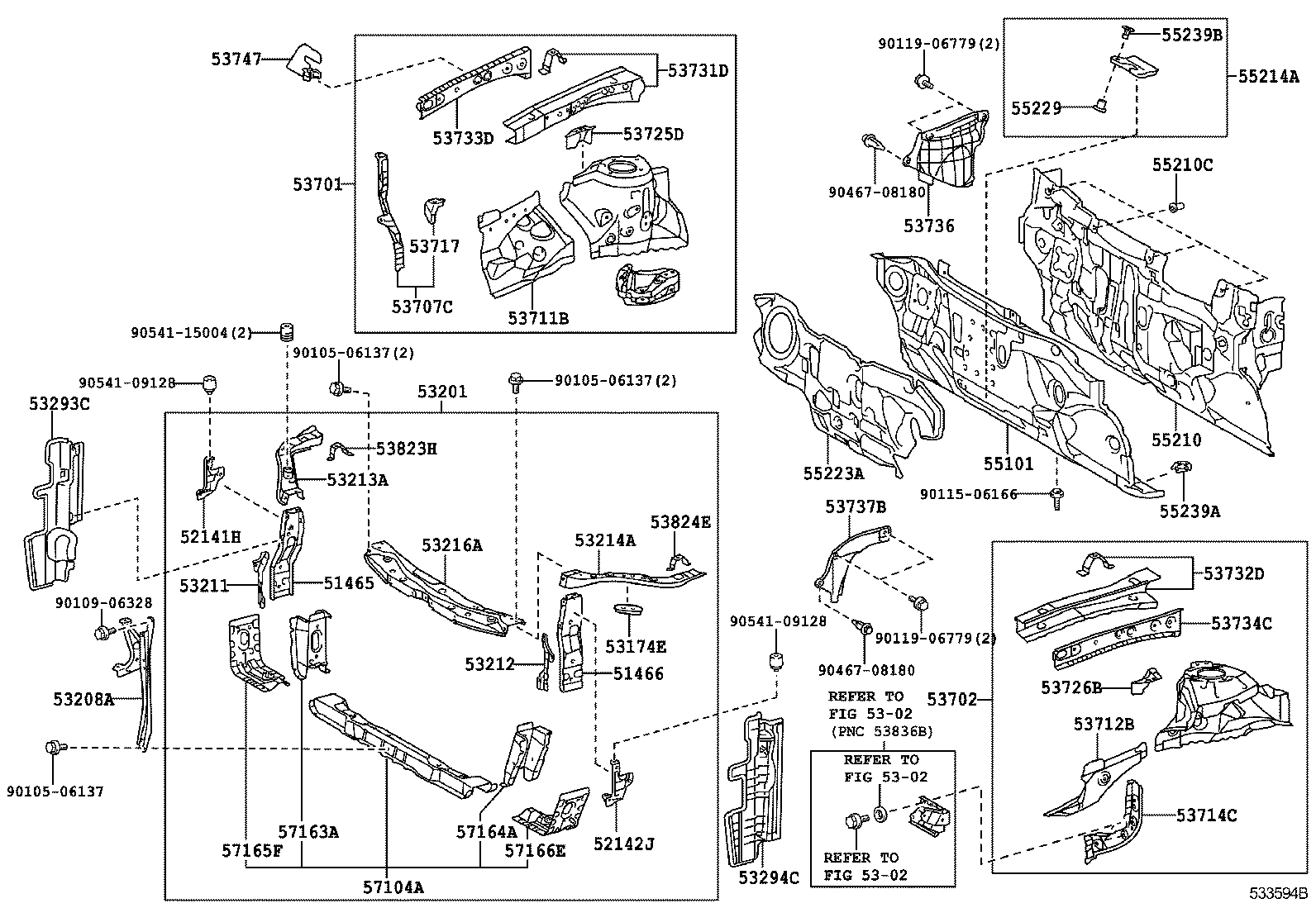

FRONT FENDER APRON DASH PANEL

(1110- )ALT

CAMRY AURION HV ARL | FRONT FENDER APRON DASH PANEL 51465 - BRACE, RADIATOR SUPPORT, UPPER RH 51466 - BRACE, RADIATOR SUPPORT, UPPER LH 52141H - ARM, FRONT BUMPER, UPPER RH 52142J - ARM, FRONT BUMPER, UPPER LH ** Refer Fig ** Refer Fig ** Refer Fig 53174E - BRACKET, RADIATOR SUPPORT SIDE 53201 - SUPPORT SUB-ASSY, RADIATOR 53208A - SUPPORT SUB-ASSY, HOOD LOCK 53211 - SUPPORT, RADIATOR, RH 53212 - SUPPORT, RADIATOR, LH 53213A - SUPPORT, RADIATOR, UPPER RH 53214A - SUPPORT, RADIATOR, UPPER LH 53216A - SUPPORT, RADIATOR, UPPER 53293C - DEFLECTOR, RADIATOR SIDE, RH 53294C - DEFLECTOR, RADIATOR SIDE, LH 53701 - APRON SUB-ASSY, FRONT FENDER, RH 53702 - APRON SUB-ASSY, FRONT FENDER, LH 53707C - EXTENSION SUB-ASSY, FRONT FENDER APRON, FRONT RH 53711B - APRON, FRONT FENDER, FRONT RH 53712B - APRON, FRONT FENDER, FRONT LH 53714C - EXTENSION, FRONT FENDER APRON, FRONT LH 53717 - PLATE, FENDER APRON, RH 53725D - REINFORCEMENT, FRONT SPRING SUPPORT, NO.2 RH 53726B - REINFORCEMENT, FRONT SPRING SUPPORT, NO.2 LH 53731D - MEMBER, FRONT APRON TO COWL SIDE, UPPER RH 53732D - MEMBER, FRONT APRON TO COWL SIDE, UPPER LH 53733D - MEMBER, FRONT APRON TO COWL SIDE, LOWER FRONT RH 53734C - MEMBER, FRONT APRON TO COWL SIDE, LOWER FRONT LH 53736 - SEAL, FRONT FENDER APRON, RH 53737B - SEAL, FRONT FENDER APRON, LH 53747 - PLATE, AIR SEALED, RH 53823H - GUSET, FRONT FENDER, RH 53824E - GUSSET, FRONT FENDER, LH 55101 - PANEL SUB-ASSY, DASH 55210 - INSULATOR ASSY, DASH PANEL 55210C - CLIP 55214A - PAD, DASH PANEL INSULATOR, NO.2 55223A - INSULATOR, DASH PANEL, OUTER 55229 - PLATE, DASH PANEL INSULATOR, NO.4 55239A - PLATE, DASH PANEL INSULATOR, NO.3 55239B - PLATE, FRONT FLOOR FOOTREST, NO.2 57104A - MEMBER SUB-ASSY, FRONT CROSS 57163A - REINFORCEMENT, FRONT CROSSMEMBER, NO.1 RH 57164A - REINFORCEMENT, FRONT CROSSMEMBER, NO.1 LH 57165F - REINFORCEMENT, FRONT CROSSMEMBER, NO.2 RH 57166E - REINFORCEMENT, FRONT CROSSMEMBER, NO.2 LH ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
