TOYOTA WISH ZNE10R-HPPNK / ELECTRICAL / HEATING AIR CONDITIONING COOLER PIPING

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

HEATING AIR CONDITIONING COOLER PIPING

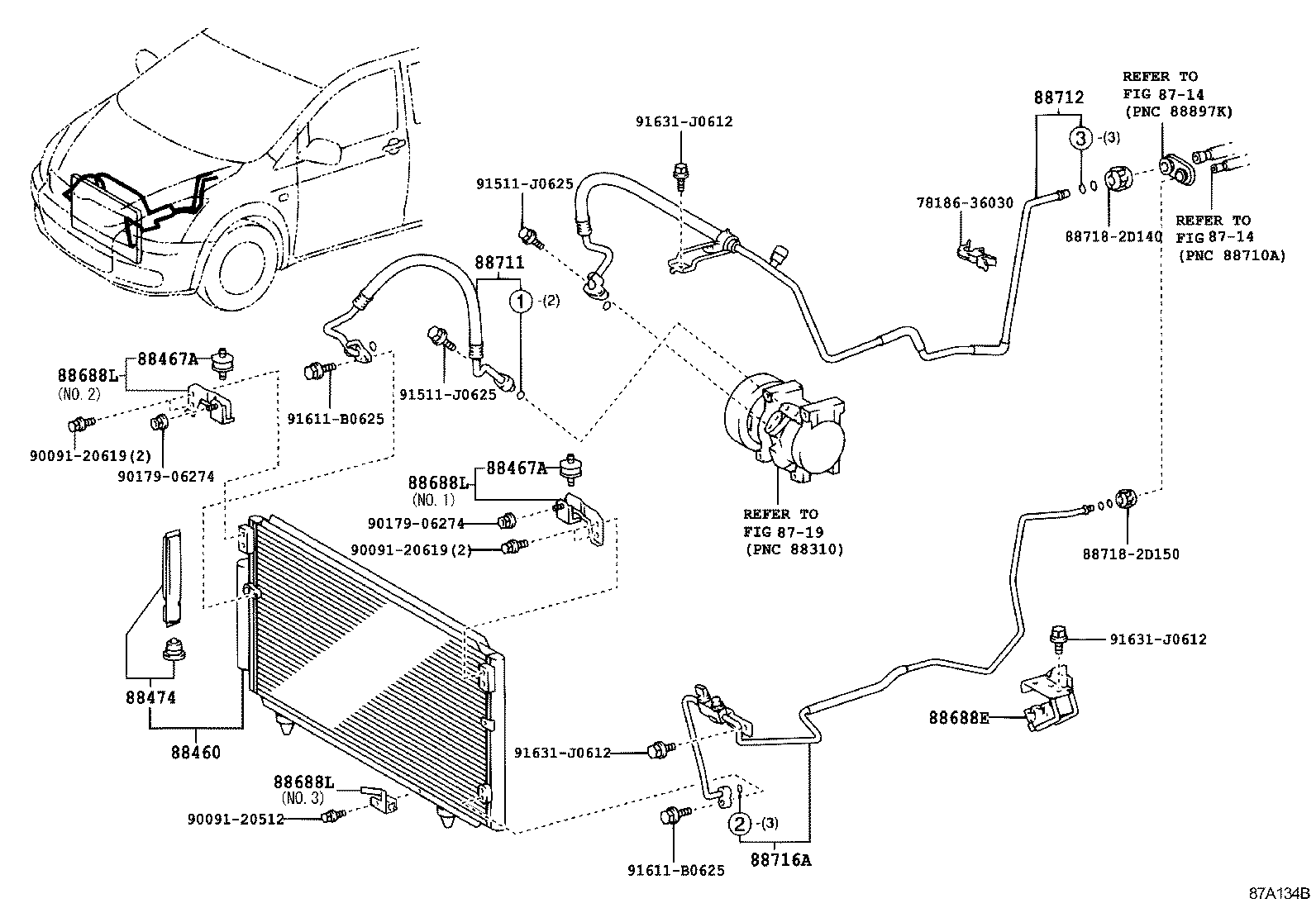

ILLUST NO. 1 OF 2(0804- )ZNE10

 WISH |  HEATING AIR CONDITIONING COOLER PIPING  ** Std Part ** Refer Fig ** Refer Fig ** Refer Fig 88460 - CONDENSER ASSY, COOLER 88467A - CUSHION, COOLER CONDENSER, NO.2 88467A - CUSHION, COOLER CONDENSER, NO.2 88474 - DRYER, COOLER 88688E - BRACKET, COOLER REFRIGERANT HOSE, NO.1 88688L - BRACKET, CONDENSER PACKING 88688L - BRACKET, CONDENSER PACKING 88688L - BRACKET, CONDENSER PACKING 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 88716A - PIPE, COOLER REFRIGERANT LIQUID, A  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
