RADIATOR WATER OUTLET

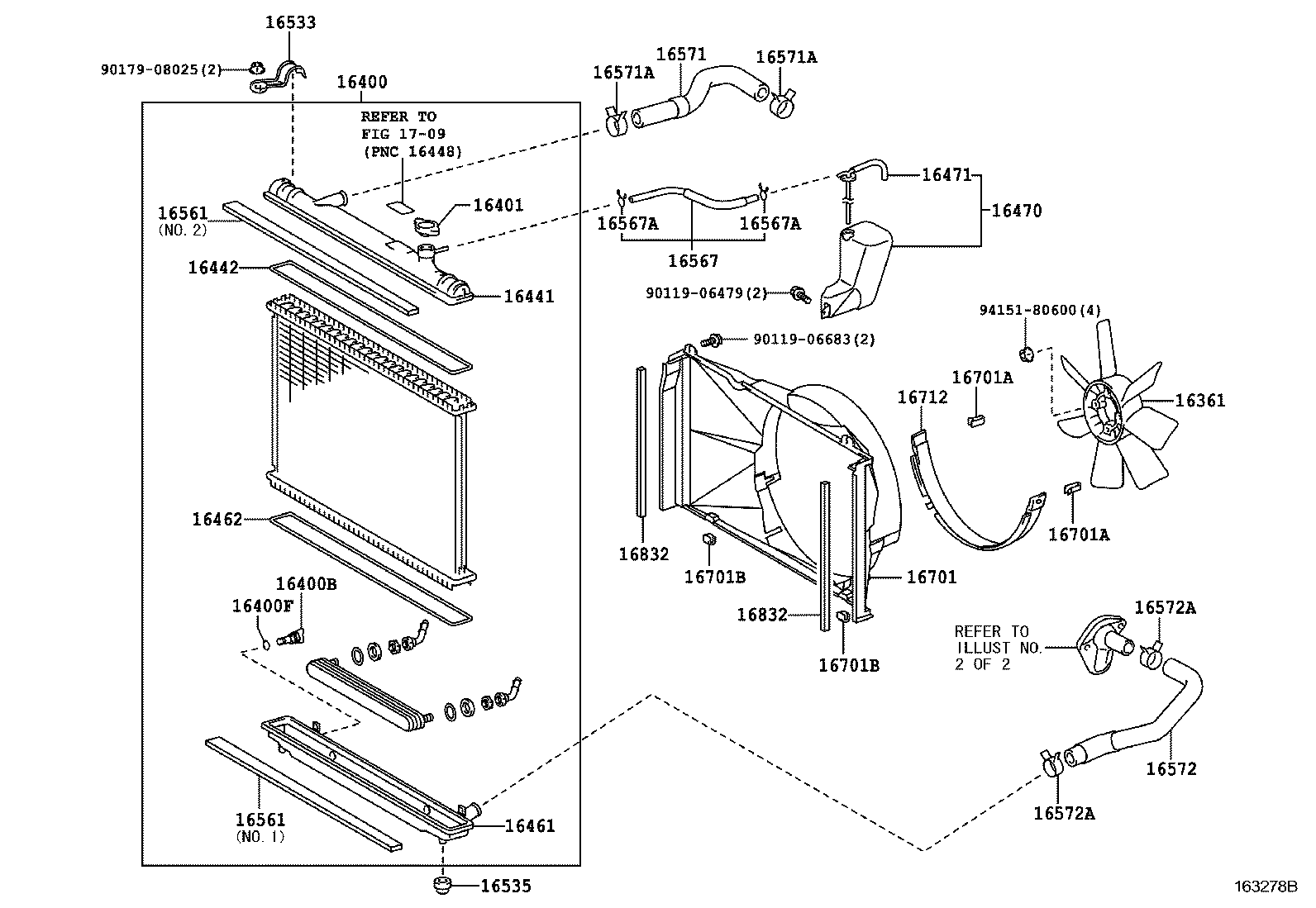

ILLUST NO. 1 OF 2(0808- )

CROWN COMFORT | RADIATOR WATER OUTLET 16361 - FAN 16400 - RADIATOR ASSY 16400B - PLUG, RADIATOR DRAIN COCK 16400F - PACKING(FOR RADIATOR DRAIN COCK) 16401 - CAP SUB-ASSY, RADIATOR 16441 - TANK, RADIATOR, UPPER 16442 - RING, O(FOR RADIATOR UPPER TANK) 16461 - TANK, RADIATOR, LOWER 16462 - RING, O(FOR RADIATOR LOWER TANK) 16470 - TANK ASSY, RADIATOR RESERVE 16471 - CAP SUB-ASSY, RESERVE TANK 16533 - SUPPORT, RADIATOR, UPPER 16535 - SUPPORT, RADIATOR, LOWER 16561 - SEAL, RADIATOR TO SUPPORT, NO.1 16561 - SEAL, RADIATOR TO SUPPORT, NO.1 16567 - HOSE(FOR RADIATOR RESERVE TANK) 16567A - CLIP(FOR RADIATOR RESERVE TANK HOSE) 16567A - CLIP(FOR RADIATOR RESERVE TANK HOSE) 16571 - HOSE, RADIATOR, INLET 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) 16572 - HOSE, RADIATOR, OUTLET 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) 16701 - SHROUD SUB-ASSY, FAN 16701A - CLIP(FOR FAN SHROUD) 16701A - CLIP(FOR FAN SHROUD) 16701B - CUSHION, FAN SHROUD 16701B - CUSHION, FAN SHROUD 16712 - SHROUD, FAN, NO.2 16832 - SEAL, FAN SHROUD 16832 - SEAL, FAN SHROUD ** Refer Fig ** Std Part ** Std Part ** Std Part ** Std Part
