TOYOTA AURIS UKP ZZE150R-DHMDKN / TOOL-ENGINE-FUEL / CYLINDER HEAD

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

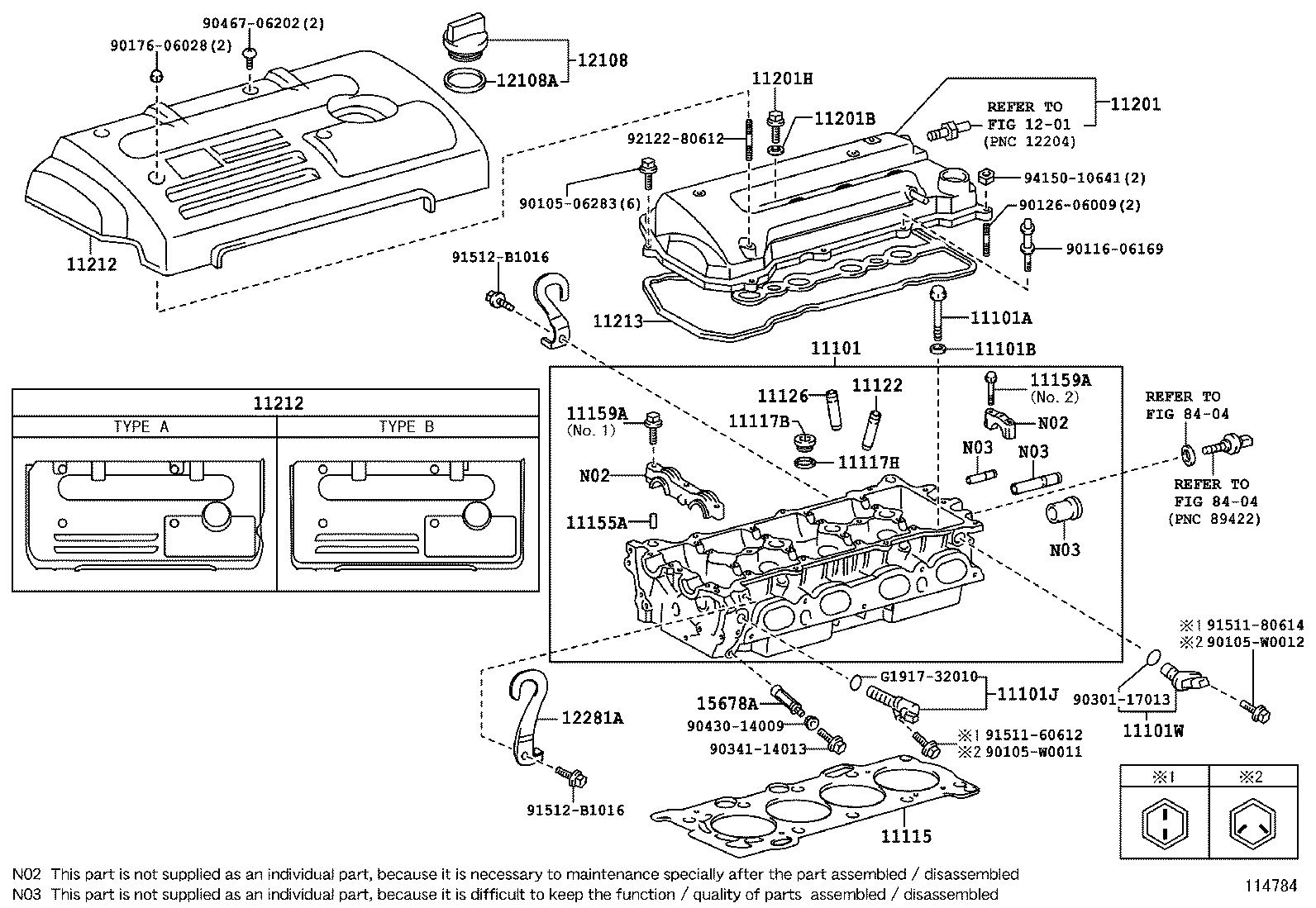

CYLINDER HEAD

(0706- )4ZZFE

 AURIS UKP |  CYLINDER HEAD 11101 - HEAD SUB-ASSY, CYLINDER 11101A - BOLT(FOR CYLINDER HEAD SET) 11101B - WASHER, PLATE(FOR CYLINDER HEAD SET) 11101J - VALVE ASSY, CAMSHAFT TIMING OIL CONTROL 11101W - SENSOR, CRANK POSITION, NO.1 11115 - GASKET, CYLINDER HEAD 11117B - PLUG, W/HEAD TAPER SCREW, NO.2 11117H - GASKET(FOR WATER HOLE) 11122 - BUSH, INTAKE VALVE GUIDE 11126 - BUSH, EXHAUST VALVE GUIDE 11155A - PIN, RING W/HEAD 11159A - BOLT(FOR HEAD TO CAMSHAFT BEARING CAP) 11159A - BOLT(FOR HEAD TO CAMSHAFT BEARING CAP) 11201 - COVER SUB-ASSY, CYLINDER HEAD 11201B - WASHER, SEAL(FOR CYLINDER HEAD COVER) 11201H - BOLT(FOR CYLINDER HEAD COVER) 11212 - COVER, CYLINDER HEAD, NO.2 11212 - COVER, CYLINDER HEAD, NO.2 11213 - GASKET, CYLINDER HEAD COVER ** Refer Fig 12108 - CAP SUB-ASSY, OIL FILLER 12108A - GASKET(FOR OIL FILLER CAP) 12281A - HANGER, ENGINE, NO.1 15678A - FILTER, OIL CONTROL VALVE ** Refer Fig ** Refer Fig  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
