TOYOTA LAND CRUISER 200 GRJ200L-GNANKC / POWERTRAIN-CHASSIS / OIL COOLER TUBE ATM

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

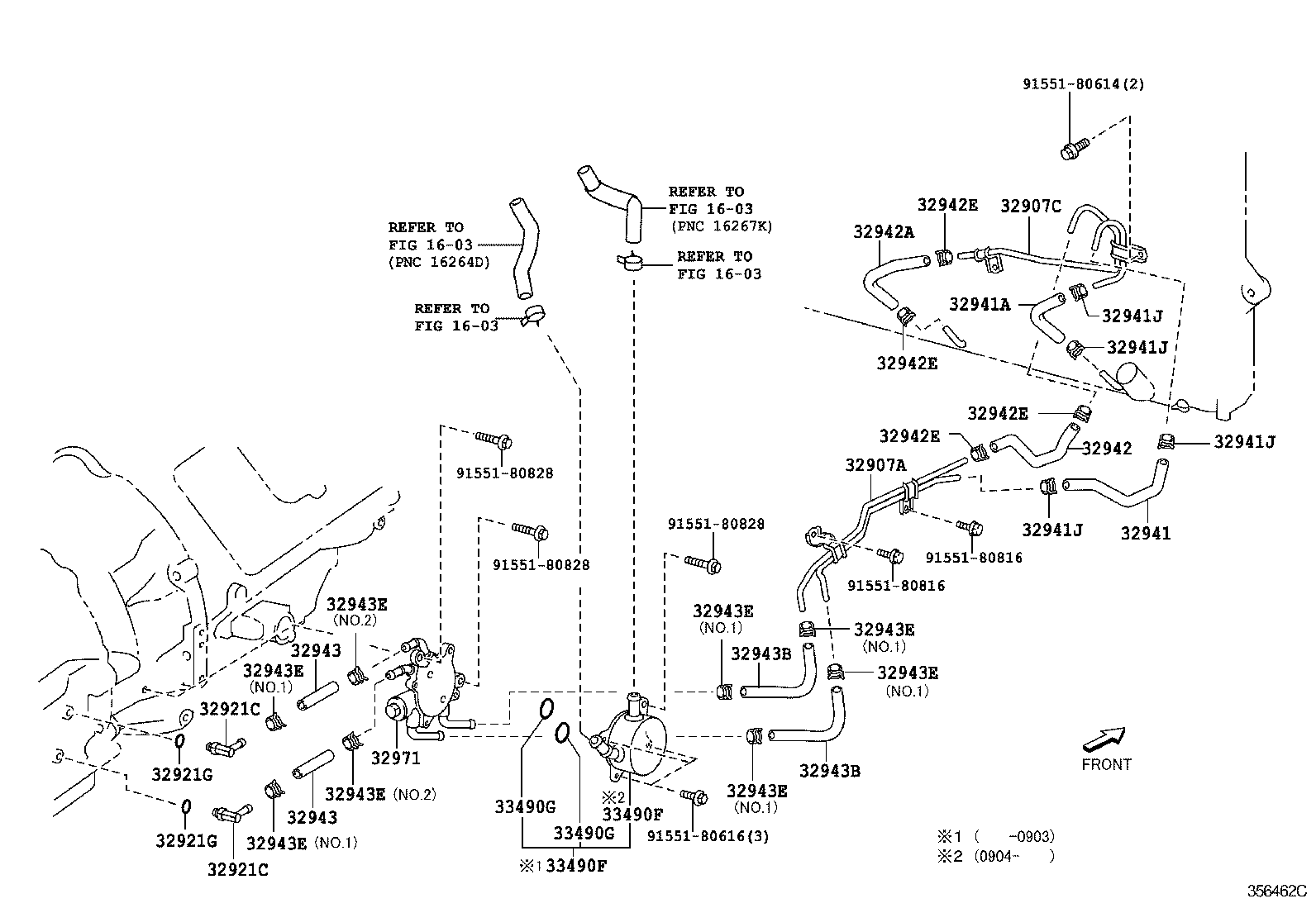

OIL COOLER TUBE ATM

A750F (0712- )GRJ200..5FC

LAND CRUISER 200 | OIL COOLER TUBE ATM ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig 32907A - TUBE, OIL COOLER 32907C - TUBE SUB-ASSY, OIL COOLER W/O HOSE, NO.1 32921C - UNION(FOR OIL COOLER TUBE) 32921C - UNION(FOR OIL COOLER TUBE) 32921G - RING, O(FOR OIL COOLER TUBE UNION) 32921G - RING, O(FOR OIL COOLER TUBE UNION) 32941 - HOSE, OIL COOLER INLET, NO.1 32941A - HOSE, OIL COOLER INLET, NO.2 32941J - CLIP, NO.1(FOR OIL COOLER HOSE) 32941J - CLIP, NO.1(FOR OIL COOLER HOSE) 32941J - CLIP, NO.1(FOR OIL COOLER HOSE) 32941J - CLIP, NO.1(FOR OIL COOLER HOSE) 32942 - HOSE, OIL COOLER OUTLET, NO.1 32942A - HOSE, OIL COOLER OUTLET, NO.2 32942E - CLIP, NO.2(FOR OIL COOLER HOSE) 32942E - CLIP, NO.2(FOR OIL COOLER HOSE) 32942E - CLIP, NO.2(FOR OIL COOLER HOSE) 32942E - CLIP, NO.2(FOR OIL COOLER HOSE) 32943 - HOSE, TRANSMISSION OIL COOLER, NO.1 32943 - HOSE, TRANSMISSION OIL COOLER, NO.1 32943B - HOSE, TRANSMISSION OIL COOLER 32943B - HOSE, TRANSMISSION OIL COOLER 32943E - CLIP, NO.3(FOR OIL COOLER HOSE) 32943E - CLIP, NO.3(FOR OIL COOLER HOSE) 32943E - CLIP, NO.3(FOR OIL COOLER HOSE) 32943E - CLIP, NO.3(FOR OIL COOLER HOSE) 32943E - CLIP, NO.3(FOR OIL COOLER HOSE) 32943E - CLIP, NO.3(FOR OIL COOLER HOSE) 32943E - CLIP, NO.3(FOR OIL COOLER HOSE) 32943E - CLIP, NO.3(FOR OIL COOLER HOSE) 32971 - THERMOSTAT, TRANSMISSION OIL 33490F - COOLER ASSY, TRANSMISSION OIL 33490F - COOLER ASSY, TRANSMISSION OIL 33490G - RING, O (FOR TRANSMISSION OIL COOLER) 33490G - RING, O (FOR TRANSMISSION OIL COOLER) ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
