TOYOTA RUSH F700RE-GMMFJ / BODY / REAR DOOR PANEL GLASS

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

REAR DOOR PANEL GLASS

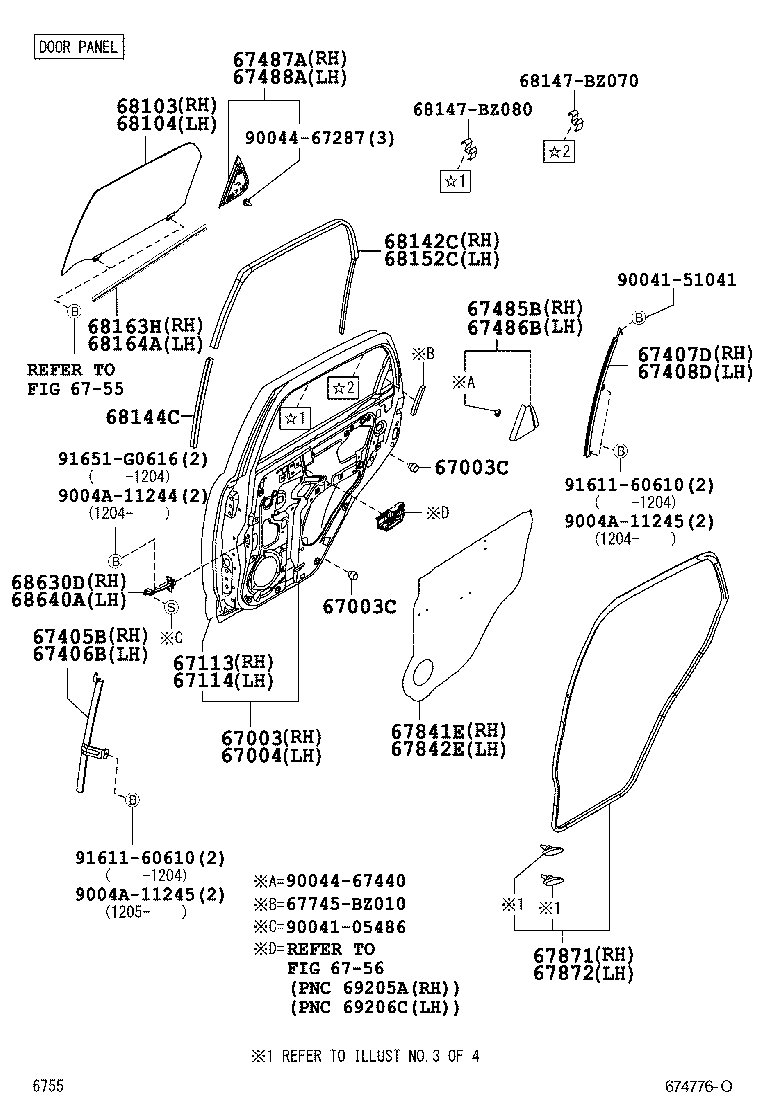

DOOR PANEL ILLUST NO. 1 OF 4(0612- )

RUSH | REAR DOOR PANEL GLASS 67003 - PANEL SUB-ASSY, REAR DOOR, RH 67003C - CUSHION, REAR DOOR PANEL 67003C - CUSHION, REAR DOOR PANEL 67004 - PANEL SUB-ASSY, REAR DOOR, LH 67113 - PANEL, REAR DOOR, OUTER RH 67114 - PANEL, REAR DOOR, OUTER LH 67405B - GUIDE SUB-ASSY, REAR DOOR WINDOW, FRONT RH 67406B - GUIDE SUB-ASSY, REAR DOOR WINDOW, FRONT LH 67407D - GUIDE SUB-ASSY, REAR DOOR WINDOW, REAR RH 67408D - GUIDE SUB-ASSY, REAR DOOR WINDOW, REAR LH 67485B - SEAL, REAR DOOR DIVISION BAR, INSIDE, RH 67486B - SEAL, REAR DOOR DIVISION BAR, INSIDE, LH 67487A - GARNISH, REAR DOOR REAR GUIDE BRACKET, RH 67488A - GARNISH, REAR DOOR REAR GUIDE BRACKET, LH ** Refer Fig ** Refer Fig ** Std Part 67841E - COVER, REAR DOOR SERVICE HOLE, RH 67842E - COVER, REAR DOOR SERVICE HOLE, LH 67871 - WEATHERSTRIP, REAR DOOR, RH 67872 - WEATHERSTRIP, REAR DOOR, LH 68103 - GLASS SUB-ASSY, REAR DOOR, RH 68104 - GLASS SUB-ASSY, REAR DOOR, LH 68142C - RUN, REAR DOOR GLASS, RH 68144C - RUN, REAR DOOR GLASS, LOWER FRONT ** Std Part ** Std Part 68152C - RUN, REAR DOOR GLASS, LH 68163H - WEATHERSTRIP, REAR DOOR GLASS, OUTER RH 68164A - WEATHERSTRIP, REAR DOOR GLASS, OUTER LH 68630D - CHECK ASSY, REAR DOOR, RH 68640A - CHECK ASSY, REAR DOOR, LH ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
