TOYOTA CAMRY ACV30L-JEPEKM / BODY / FRONT SEAT SEAT TRACK

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

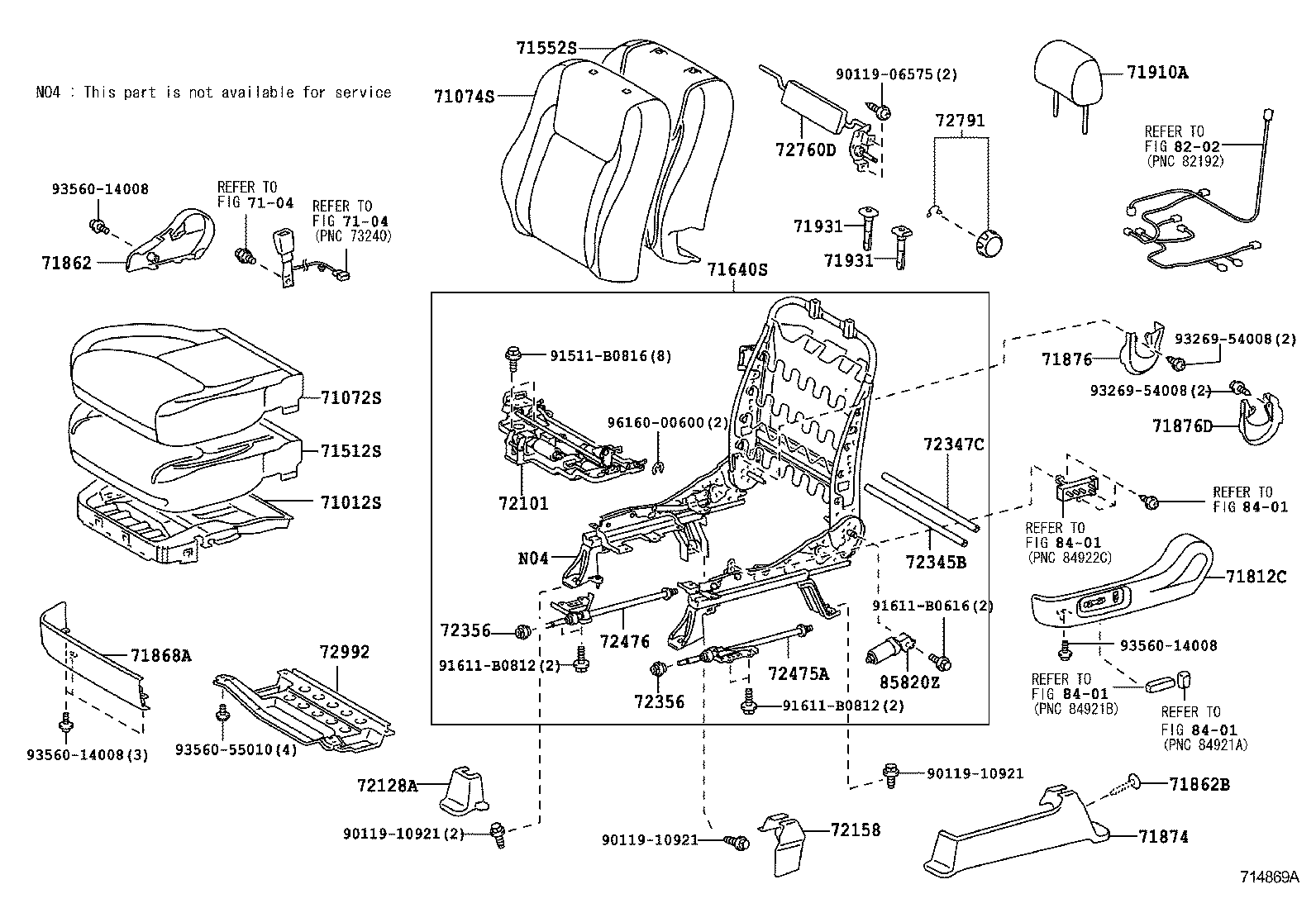

FRONT SEAT SEAT TRACK

DRIVER SEAT (0404- )20G,30G..TAIW ; (0407- )MCV30..VN

CAMRY | FRONT SEAT SEAT TRACK 71012S - FRAME SUB-ASSY, FRONT SEAT CUSHION, LH ** Refer Fig ** Refer Fig 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) 71640S - SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) 71812C - COVER, RECLINING ADJUSTER, LH 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH 71862B - CLIP(FOR FRONT SEAT SHIELD, LH) 71868A - SHIELD, FRONT SEAT CUSHION, INNER NO.1 LH 71874 - SHIELD, FRONT SEAT CUSHION, LOWER LH 71876 - COVER, RECLINING ADJUSTER INSIDE, LH 71876D - COVER, RECLINING ADJUSTER OUTSIDE, LH 71910A - HEADREST ASSY, FRONT SEAT 71931 - SUPPORT, FRONT SEAT HEADREST 71931 - SUPPORT, FRONT SEAT HEADREST 72101 - BRACKET SUB-ASSY, OUTER SEAT TRACK, LOWER FRONT 72128A - COVER, SEAT TRACK BRACKET, INNER FRONT LH 72158 - COVER, SEAT TRACK BRACKET, INNER LH 72345B - PIPE, RECLINING CONNECTING 72347C - COVER, RECLINING CONNECTING HOOK 72356 - NUT, SIDE SUPPORT, RH 72356 - NUT, SIDE SUPPORT, RH 72475A - SCREW, HORIZONTAL JACK, OUTER 72476 - SCREW, HORIZONTAL JACK, INNER 72760D - ADJUSTER ASSY, LUMBAR SUPPORT, LH 72791 - LEVER, LUMBAR SUPPORT 72992 - COVER, FRONT SEAT CUSHION, LH ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig 85820Z - MOTOR ASSY, POWER SEAT ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
