TOYOTA AVANZA F602LM-GMMFJF / POWERTRAIN-CHASSIS / BRAKE BOOSTER VACUUM TUBE

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

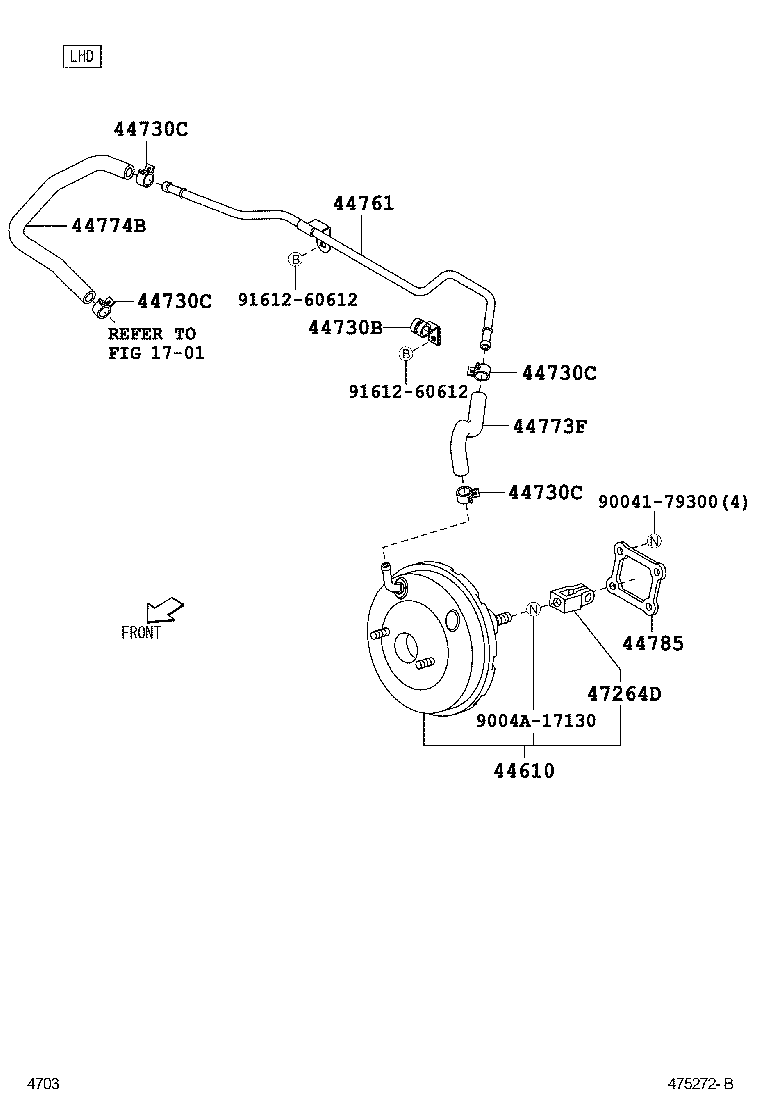

BRAKE BOOSTER VACUUM TUBE

ILLUST NO. 2 OF 2(0608- )LHD

 AVANZA |  BRAKE BOOSTER VACUUM TUBE ** Refer Fig 44610 - BOOSTER ASSY, BRAKE 44730B - CLAMP, VACUUM HOSE 44730C - CLIP(FOR VACUUM HOSE) 44730C - CLIP(FOR VACUUM HOSE) 44730C - CLIP(FOR VACUUM HOSE) 44730C - CLIP(FOR VACUUM HOSE) 44761 - TUBE, INTAKE MANIFOLD OR VACUUM PUMP TO CONNECTOR 44773F - HOSE, UNION TO CHECK VALVE 44774B - HOSE, UNION TO CONNECTOR TUBE 44785 - GASKET, BRAKE BOOSTER 47264D - CLEVIS, BRAKE MASTER CYLINDER PUSH ROD  ** Std Part  ** Std Part  ** Std Part  ** Std Part
