TOYOTA AVANZA F601RM-GMMFJB / POWERTRAIN-CHASSIS / CLUTCH PEDAL FLEXIBLE HOSE

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

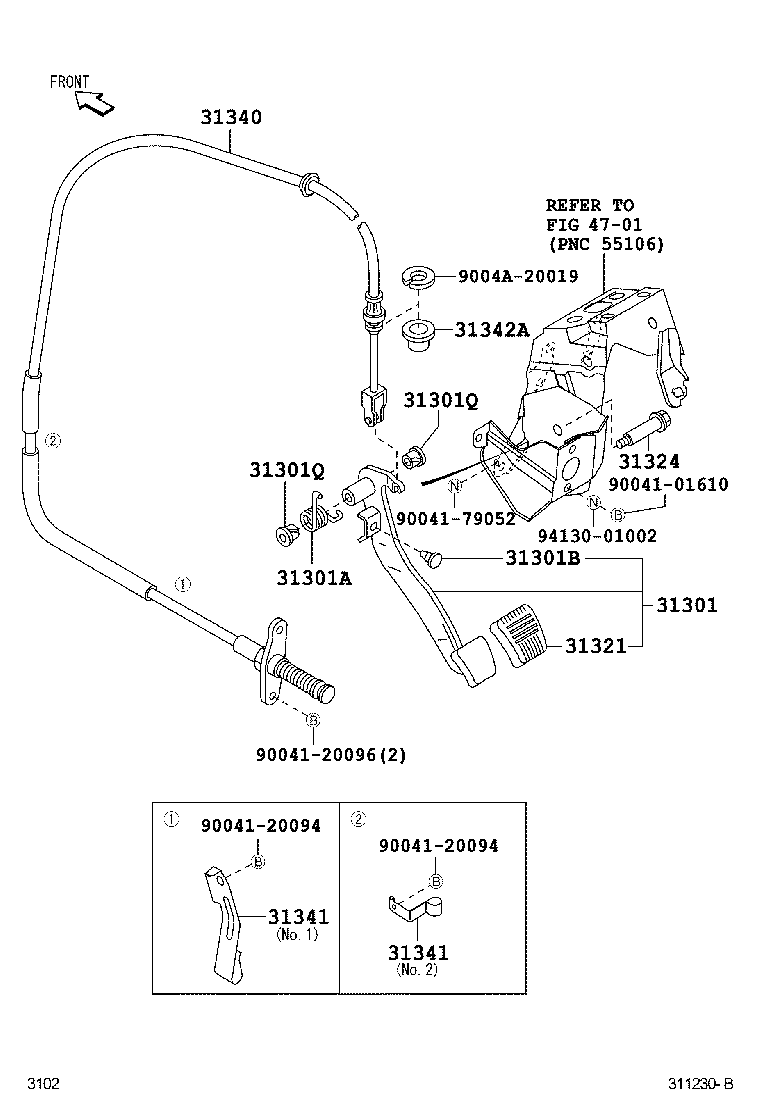

CLUTCH PEDAL FLEXIBLE HOSE

ILLUST NO. 1 OF 7(0312-0608)5F

 AVANZA |  CLUTCH PEDAL FLEXIBLE HOSE 31301 - PEDAL SUB-ASSY, CLUTCH 31301A - SPRING(FOR CLUTCH PEDAL) 31301B - CUSHION, NO.1(FOR CLUTCH PEDAL) 31301Q - BUSH(FOR CLUTCH PEDAL SPRING) 31301Q - BUSH(FOR CLUTCH PEDAL SPRING) 31321 - PAD, CLUTCH PEDAL 31324 - SHAFT, CLUTCH PEDAL 31340 - CABLE ASSY, CLUTCH RELEASE 31341 - BRACKET, CLUTCH CABLE 31341 - BRACKET, CLUTCH CABLE 31342A - BUSH(FOR CLUTCH RELEASE CABLE) ** Refer Fig  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
