TOYOTA AVALON MCX20L-AEPNKV / ELECTRICAL / HEATING AIR CONDITIONING COOLER UNIT

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

HEATING AIR CONDITIONING COOLER UNIT

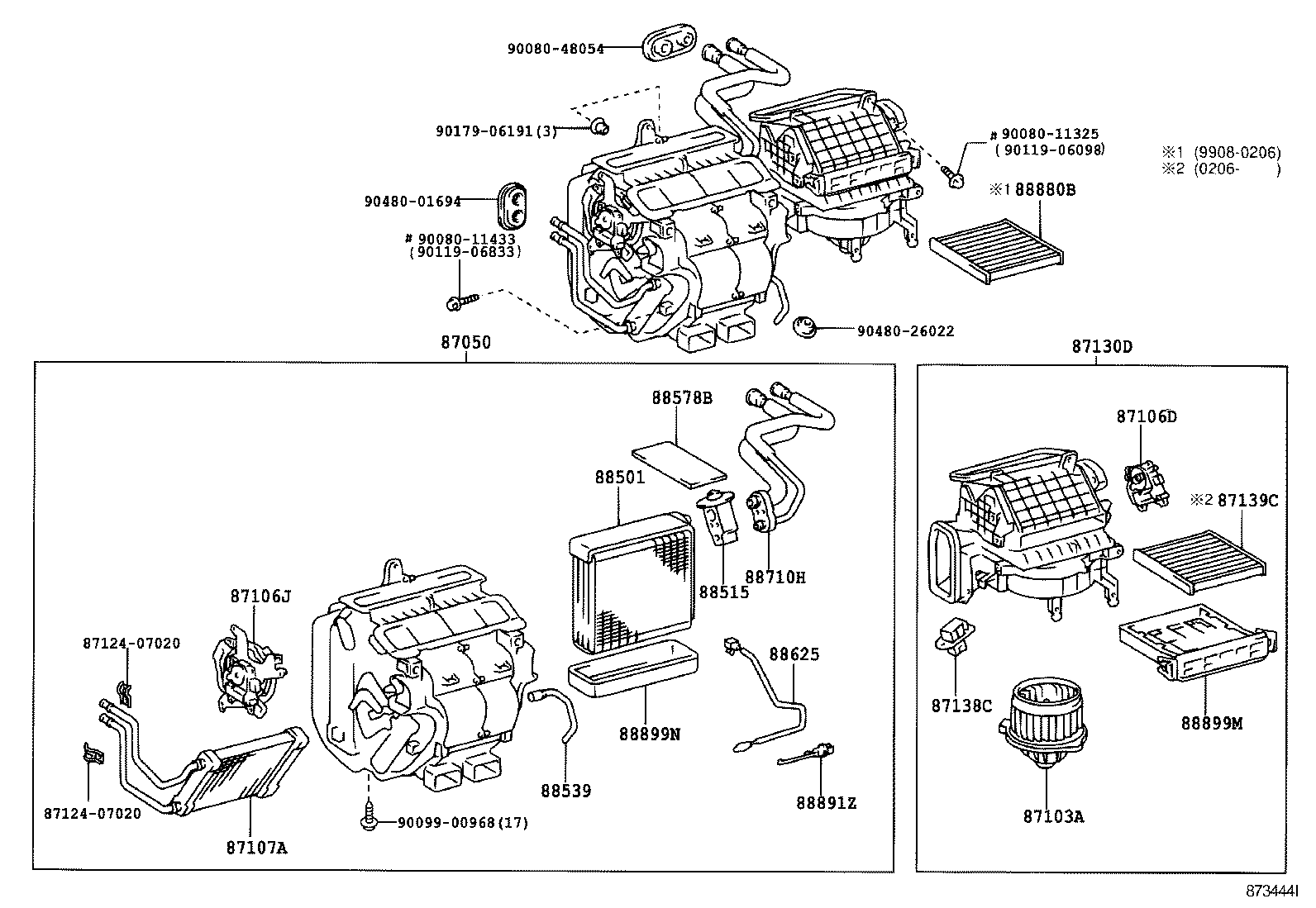

MANUAL AIR CONDITIONER ILLUST NO. 1 OF 2(9908- )

 AVALON |  HEATING AIR CONDITIONING COOLER UNIT 87050 - RADIATOR ASSY, AIR CONDITIONER 87103A - MOTOR SUB-ASSY, COOLING UNIT, W/FAN 87106D - SERVO SUB-ASSY, DAMPER, NO.1 87106J - SERVO SUB-ASSY, DAMPER(FOR MODE) 87107A - UNIT SUB-ASSY, HEATER RADIATOR  ** Std Part  ** Std Part 87130D - BLOWER ASSY 87138C - RESISTOR, BLOWER 87139C - FILTER, CLEAN AIR 88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1 88515 - VALVE, COOLER EXPANSION 88539 - HOSE, COOLER UNIT DRAIN, NO.1 88578B - PACKING, COOLING UNIT, NO.1 88625 - THERMISTOR, COOLER, NO.1 88710H - TUBE & ACCESSORY ASSY, AIRCONDITIONER 88880B - FILTER ASSY, CLEAN AIR 88891Z - BRACKET, COOLER THERMISTOR 88899M - PLATE, COVER(FOR AIR FILTER) 88899N - PLATE, COVER  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
