TOYOTA CAMRY AUSTRALIA MCV36R-DEPNKQ / POWERTRAIN-CHASSIS / FRONT AXLE HOUSING DIFFERENTIAL

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

FRONT AXLE HOUSING DIFFERENTIAL

A541E (0208- )MCV36..ATM

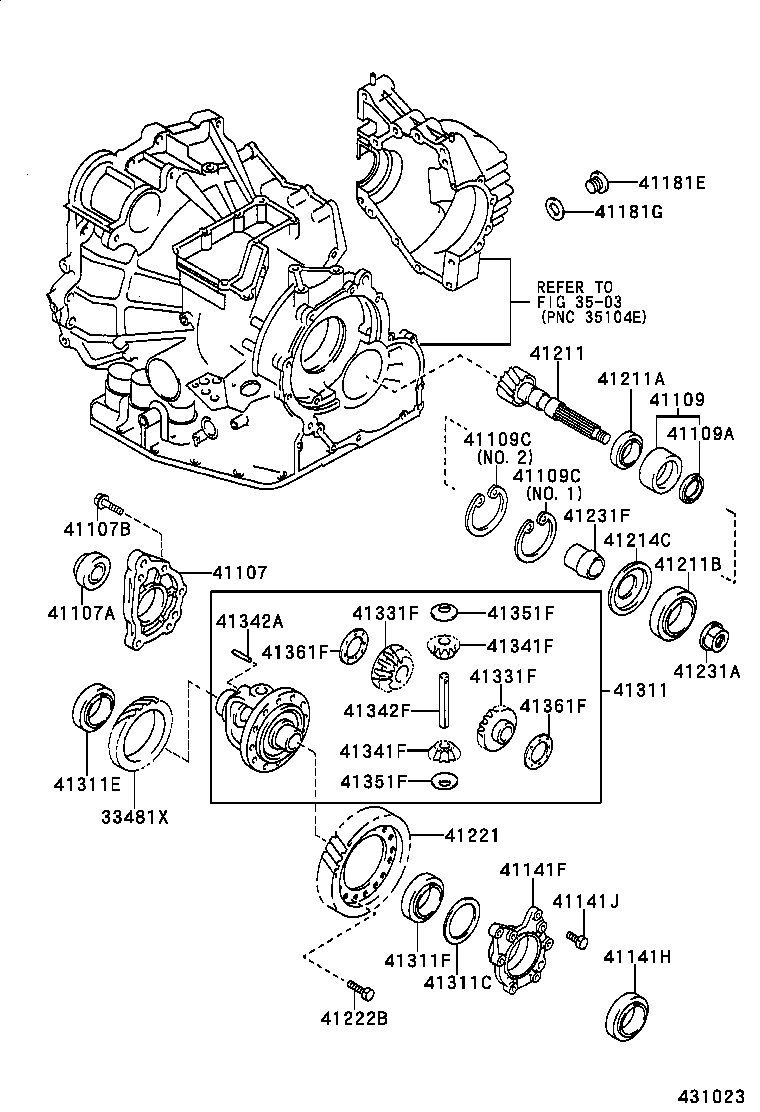

 CAMRY AUSTRALIA |  FRONT AXLE HOUSING DIFFERENTIAL 33481X - GEAR, SPEEDOMETER DRIVE ** Refer Fig 41107 - RETAINER SUB-ASSY, FRONT DIFFERENTIAL OIL SEAL 41107A - SEAL, OIL (FOR FRONT DIFFERENTIAL OIL SEAL RETAINER) 41107B - BOLT (FOR FRONT DIFFERENTIAL OIL SEAL RETAINER) 41109 - CAGE SUB-ASSY, DIFFERENTIAL DRIVE PINION BEARING 41109A - SEAL, OIL (FOR DIFFERENTIAL DRIVE PINION BEARING CAGE) 41109C - RING, HOLE SNAP (FOR DIFF. DRIVE PINION BEARING CAGE) 41109C - RING, HOLE SNAP (FOR DIFF. DRIVE PINION BEARING CAGE) 41141F - RETAINER, FRONT DIFFERENTIAL SIDE BEARING 41141H - SEAL, OIL(FOR DIFFERENTIAL SIDE BEARING RETAINER) 41141J - BOLT(FOR FRONT DIFFERENTIAL SIDE BEARING RETAINER) 41181E - PLUG (FOR FRONT DIFFERENTIAL DRAIN) 41181G - GASKET (FOR FRONT DIFFERENTIAL DRAIN PLUG) 41211 - PINION, DIFFERENTIAL DRIVE 41211A - BEARING, TAPERED ROLLER (FOR FRONT DRIVE PINION FRONT) 41211B - BEARING, TAPERED ROLLER (FOR FRONT DRIVE PINION REAR) 41214C - SLINGER, FRONT DIFFERENTIAL DRIVE PINION OIL 41221 - GEAR, FRONT DIFFERENTIAL RING 41222B - BOLT (FOR FRONT DIFFERENTIAL RING GEAR SET) 41231A - NUT, DRIVE PINION LOCK 41231F - SPACER, FRONT DIFFERENTIAL DRIVE PINION BEARING 41311 - CASE, FRONT DIFFERENTIAL 41311C - SHIM (FOR FRONT DIFFERENTIAL CASE REAR) 41311E - BEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE FRONT) 41311F - BEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE REAR) 41331F - GEAR, FRONT DIFFERENTIAL SIDE 41331F - GEAR, FRONT DIFFERENTIAL SIDE 41341F - PINION, FRONT DIFFERENTIAL 41341F - PINION, FRONT DIFFERENTIAL 41342A - PIN, STRAIGHT (FOR FRONT DIFFERENTIAL PINION SHAFT) 41342F - SHAFT, FRONT DIFFERENTIAL PINION, NO.1 41351F - WASHER, FRONT DIFFERENTIAL PINION THRUST 41351F - WASHER, FRONT DIFFERENTIAL PINION THRUST 41361F - WASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1 41361F - WASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1
