TOYOTA AVANZA F601RM-GMMEJ / ELECTRICAL / WIRING CLAMP

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

WIRING CLAMP

(0312-0608)LVVT

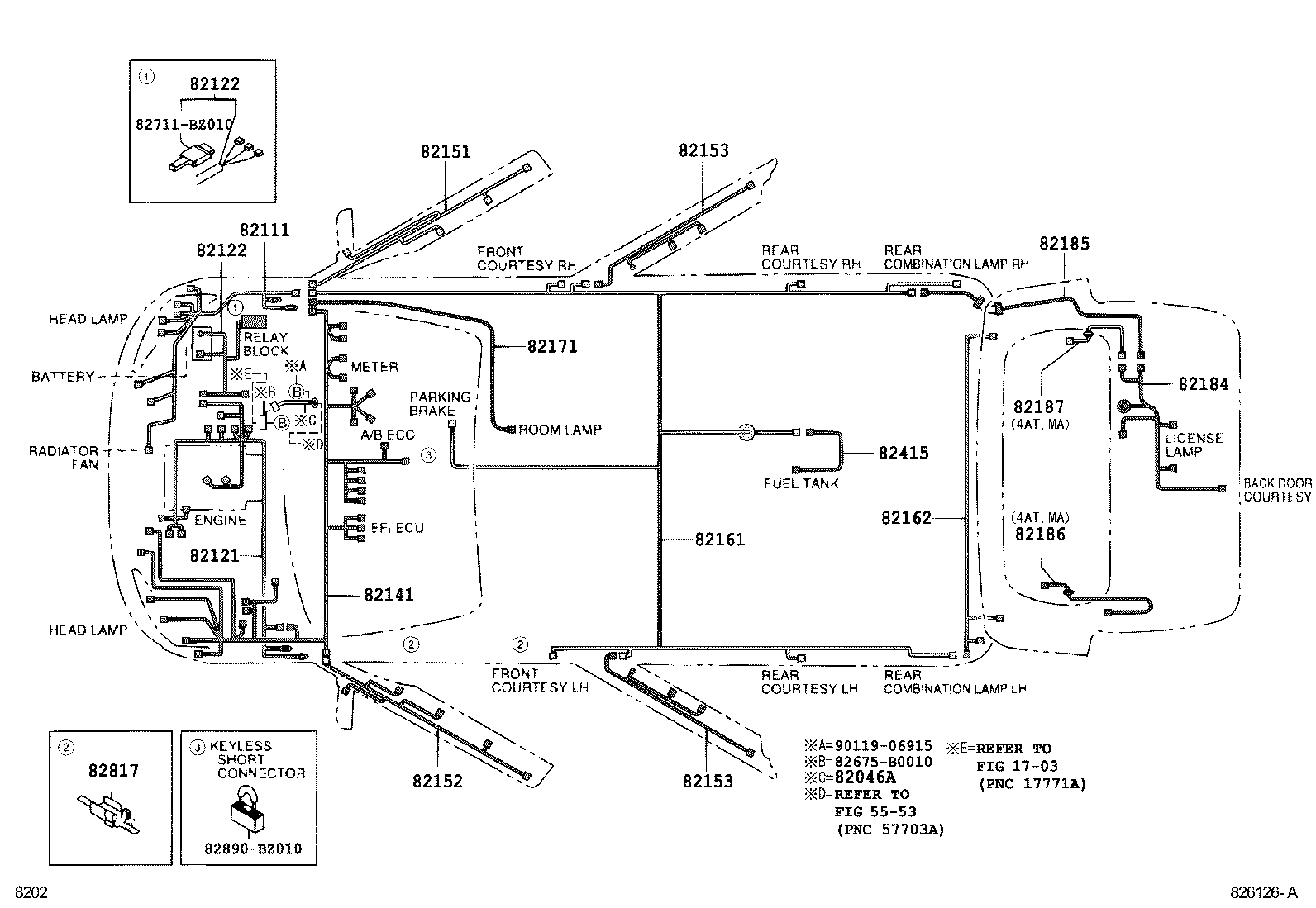

 AVANZA |  WIRING CLAMP ** Refer Fig ** Refer Fig 82046A - WIRE SUB-ASSY, BODY GROUND, NO.1 82111 - WIRE, ENGINE ROOM MAIN 82121 - WIRE, ENGINE 82122 - WIRE, ENGINE, NO.2 82122 - WIRE, ENGINE, NO.2 82141 - WIRE, INSTRUMENT PANEL 82151 - WIRE, FRONT DOOR, RH 82152 - WIRE, FRONT DOOR, LH 82153 - WIRE, REAR DOOR, NO.1 82153 - WIRE, REAR DOOR, NO.1 82161 - WIRE, FLOOR 82162 - WIRE, FLOOR, NO.2 82171 - WIRE, ROOF, NO.1 82184 - WIRE, BACK DOOR, NO.1 82185 - WIRE, BACK DOOR, NO.2 82186 - WIRE, REAR WINDOW, NO.1 82187 - WIRE, REAR WINDOW, NO.2 82415 - WIRE, FUEL PUMP  ** Std Part  ** Std Part 82817 - PROTECTOR, WIRING HARNESS, NO.1  ** Std Part  ** Std Part
