TOYOTA AVALON MCX10R-BEPEKQ / POWERTRAIN-CHASSIS / PARKING BRAKE CABLE

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

PARKING BRAKE CABLE

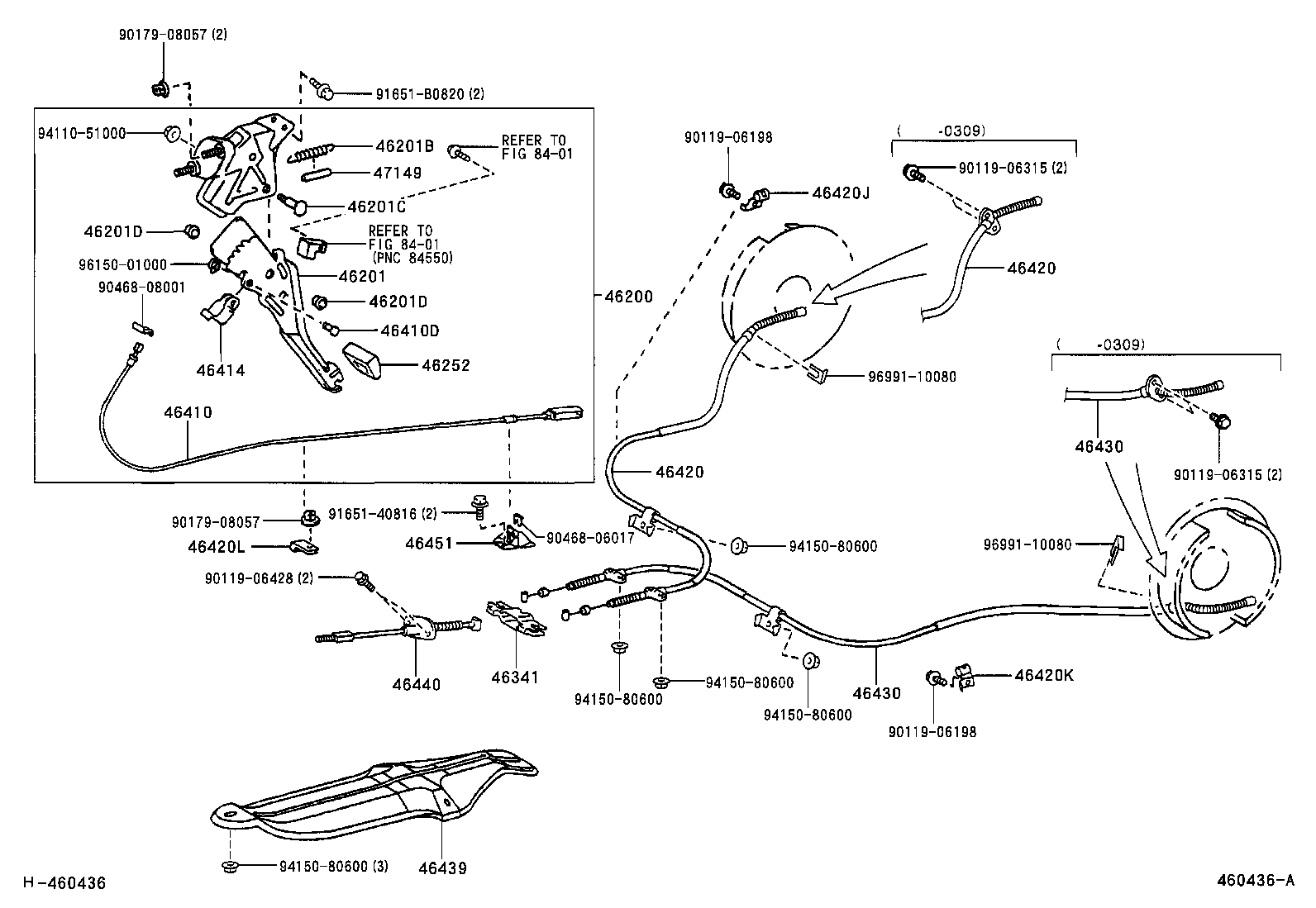

ILLUST NO. 1 OF 2(0202- )

AVALON | PARKING BRAKE CABLE 46200 - PEDAL ASSY, PARKING BRAKE CONTROL 46201 - PEDAL SUB-ASSY, PARKING BRAKE 46201B - SPRING, TENSION 46201C - SHAFT, PEDAL 46201D - BUSH(FOR PARKING BRAKE PEDAL) 46201D - BUSH(FOR PARKING BRAKE PEDAL) 46252 - PAD, PARKING PEDAL 46341 - EQUALIZER, PARKING BRAKE 46410 - CABLE ASSY, PARKING BRAKE, NO.1 46410D - PIN(FOR PARKING BRAKE FRONT CABLE) 46414 - CLEVIS, PARKING CABLE 46420 - CABLE ASSY, PARKING BRAKE, NO.2 46420 - CABLE ASSY, PARKING BRAKE, NO.2 46420J - CLAMP, NO.3(FOR PARKING BRAKE CABLE) 46420K - CLAMP, NO.4(FOR PARKING BRAKE CABLE) 46420L - CLAMP, NO.5(FOR PARKING BRAKE CABLE) 46430 - CABLE ASSY, PARKING BRAKE, NO.3 46430 - CABLE ASSY, PARKING BRAKE, NO.3 46439 - INSULATOR, PARKING BRAKE CABLE HEAT 46440 - CABLE ASSY, PARKING BRAKE, NO.4 46451 - BRACKET, CABLE SUPPORT 47149 - DAMPER, RETURN SPRING ** Refer Fig ** Refer Fig ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
