TOYOTA QUALIS RZF50R-HRMNED / TOOL-ENGINE-FUEL / RADIATOR WATER OUTLET

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

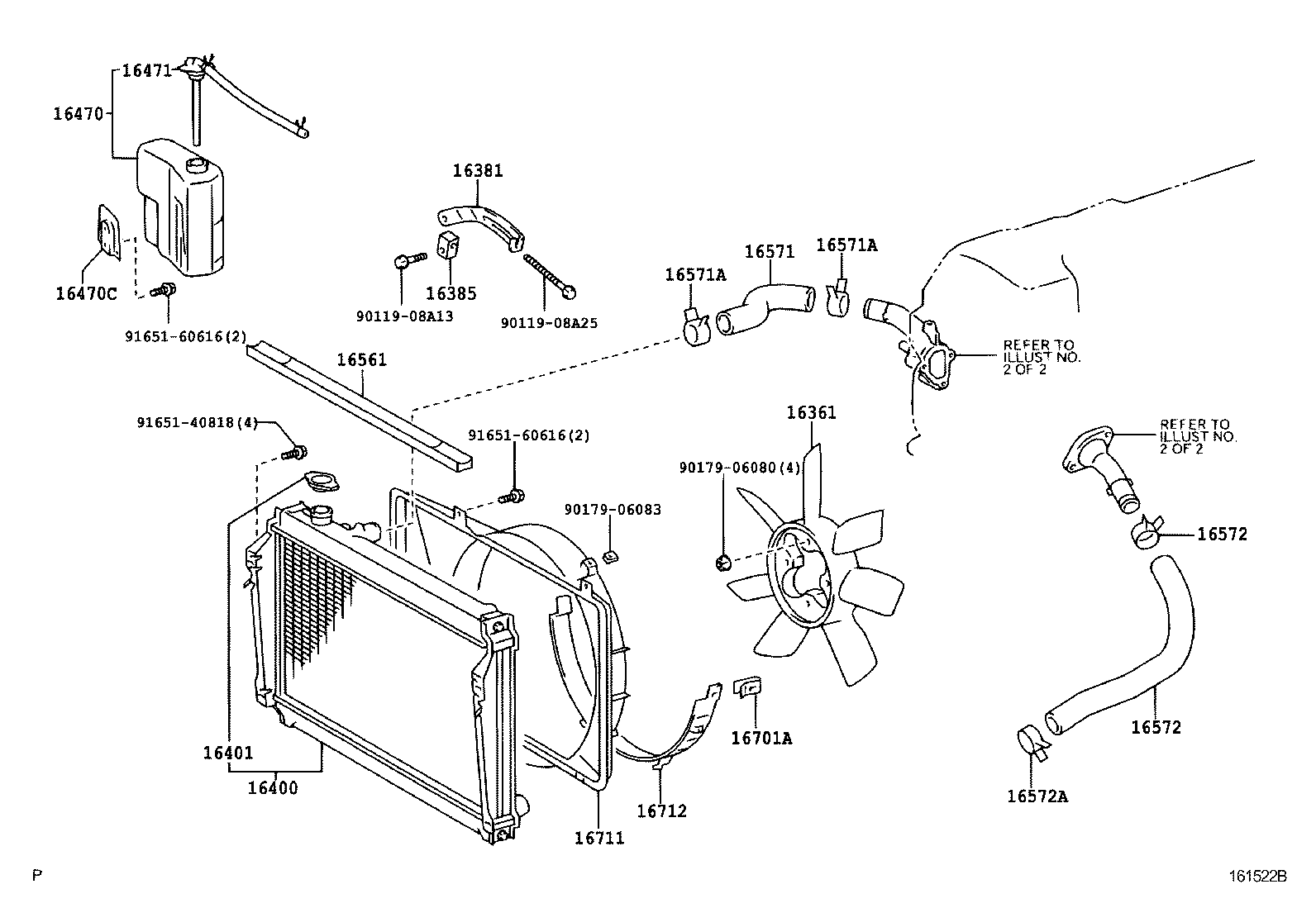

RADIATOR WATER OUTLET

ILLUST NO. 1 OF 2(0201- )1RZE

 QUALIS |  RADIATOR WATER OUTLET 16361 - FAN 16381 - BAR, FAN BELT ADJUSTING 16385 - SLIDER, FAN BELT ADJUSTING 16400 - RADIATOR ASSY 16401 - CAP SUB-ASSY, RADIATOR 16470 - TANK ASSY, RADIATOR RESERVE 16470C - BRACKET(FOR RADIATOR RESERVE TANK) 16471 - CAP SUB-ASSY, RESERVE TANK 16561 - SEAL, RADIATOR TO SUPPORT, NO.1 16571 - HOSE, RADIATOR, INLET 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) 16572 - HOSE, RADIATOR, OUTLET 16572 - HOSE, RADIATOR, OUTLET 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) 16701A - CLIP(FOR FAN SHROUD) 16711 - SHROUD, FAN 16712 - SHROUD, FAN, NO.2  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
